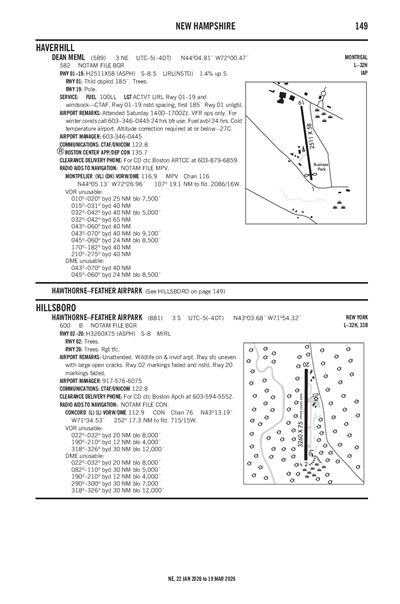

DEAN MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5B9
Local 5B9
DEAN MEML
PublicPUB

3 miles NE of HAVERHILL, NH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 04' 49"N 72° 00' 28"W
Elevation
582' MSL
Pattern Alt
1582' MSL
Mag Variation
14°W
Declination
16°W
Fuel
100LL
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
K1V4 (20nm) VFR
11:54 PM EST
No Clouds
N/A
28°F
25°F
30.13"Hg
Calm
AO1 SLP214 P0002 T10221039 400281206
METAR K1V4 040454Z AUTO M02/M04 A3013 RMK AO1 SLP214 P0002 T10221039 400281206
+ Add Your Business

5B9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT LIRL RWY 01/19 & WINDSOCK - CTAF.
UNICOM 122.8

Center

BOSTON CENTER 135.7
LOW/HIGH, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 135.7/282.2 (MONTPELIER RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMPV (25nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 8:00 PM EST
Overcast 4,500'
6sm
180° 6kts
IFR
8:00 PM EST - 10:00 PM EST
Light Snow and Mist
Overcast 1,900'
2sm
170° 5kts
IFR
10:00 PM EST - 2:00 AM EST
Light Snow and Mist
Overcast 1,200'
1.5sm
VRB° 3kts
MVFR
2:00 AM EST - 8:00 AM EST
Mist
Overcast 1,200'
4sm
Calm
VFR
8:00 AM EST - 7:00 PM EST
Scattered 16,000'
6sm
Calm
TAF KMPV 032320Z 0400/0424 18006KT P6SM OVC045
   FM040100 17005KT 2SM -SN BR OVC019
   FM040300 VRB03KT 1 1/2SM -SN BR OVC012
   FM040700 00000KT 4SM BR OVC012
   FM041300 00000KT P6SM SCT160
5B9
EffectiveExpiresCategoryNOTAM
FDC
8/14/25
1532Z
!FDC 5/7726 5B9 ODP DEAN MEML, HAVERHILL, NH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF MINIMUMS: RWY 1: STANDARD WITH MINIMUM CLIMB OF 355 FT/NM TO 1500, OR 3000-3 FOR VCOA.
VISUAL CLIMB OVER AIRPORT: RWY 1: OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE. CLIMB IN VISUAL CONDITIONS TO CROSS DEAN MEMORIAL AIRPORT HEADING 353 AT OR ABOVE 3400 TO INTERCEPT MPV VOR/DME R-088 WESTBOUND TO 4700 BEFORE PROCEEDING ON COURSE.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508141532-2708161532EST
8/11/25
1453Z
!FDC 5/4954 5B9 IAP DEAN MEML, HAVERHILL, NH.
RNAV (GPS) RWY 19, ORIG-A...
DISREGARD PLANVIEW NOTE: PROCEDURE NA FOR ARRIVALS AT MVP VOR/DME VIA V447 SOUTHWESTBOUND.
2508111453-2603231453EST
No
SATURDAY 0900-1200
TOWN OF HAVERHILL
2975 DARTMOUTH COLLEGE HWY
N. HAVERHILL, NH 03774
Phone: 603-787-6800
DENNIS CUNNINGHAM
992 COUNTY ROAD
N. HAVERHILL, NH 03774
Phone: 603-346-0445
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
ACTVT LIRL RWY 01/19 & WINDSOCK - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

2511 ft. x 58 ft.
ASPH
Fair
NONE
LOW

8,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 352°172°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 44° 04' 36"N 44° 05' 01"N
Longitude 72° 00' 26"W 72° 00' 30"W
Elevation 582' 546'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11DEAN MEMORIAL ARPT COMMISSION.
A110-1FOR WINTER CONDS CALL 603-346-0445 24 HRS BFR USE.
A110-3FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -27C.
A40-01/19NSTD SPACING, FIRST 185 FT RWY 01 UNLGTD.
A70-100LLFUEL AVBL 24 HRS.
A81-APTACTVT LIRL RWY 01/19 & WINDSOCK - CTAF.
E111VFR OPS ONLY.
DEAN MEML (IATA: 5B9) is a public airport located in HAVERHILL, NH, US.
