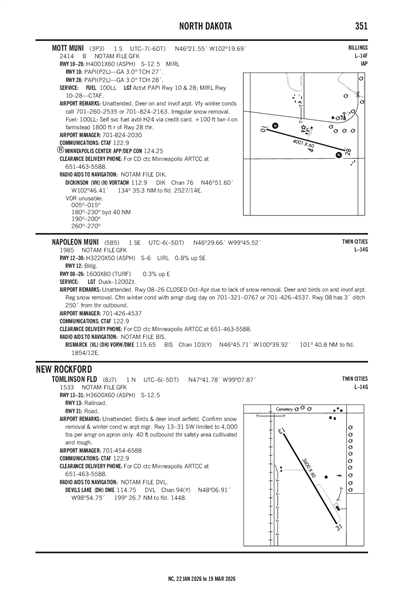

NAPOLEON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5B5
Local 5B5
NAPOLEON MUNI
PublicPUB

1 miles SE of NAPOLEON, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 29' 39"N 99° 45' 31"W
Elevation
1985' MSL
Pattern Alt
2985' MSL
Mag Variation
5°E
Declination
9°E
Fuel
None Listed
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K7L2 (26nm) VFR
7:55 PM CST
Clear
10sm
39°F
37°F
30.08"Hg
140° 9kts
AO2
METAR K7L2 040155Z AUTO 14009KT 10SM CLR 04/03 A3008 RMK AO2
+ Add Your Business

5B5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KBIS (45nm)
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 12:00 AM CST
Scattered 25,000'
6sm
100° 4kts
VFR
12:00 AM CST - 9:00 AM CST
Broken 25,000'
6sm
150° 5kts
VFR
9:00 AM CST - 1:00 PM CST
Scattered 25,000'
6sm
180° 5kts
VFR
1:00 PM CST - 4:00 PM CST
Scattered 25,000'
6sm
300° 6kts
VFR
4:00 PM CST - 6:00 PM CST
Scattered 25,000'
6sm
030° 7kts
TAF KBIS 032332Z 0400/0424 10004KT P6SM SCT250
   FM040600 15005KT P6SM BKN250
   FM041500 18005KT P6SM SCT250
   FM041900 30006KT P6SM SCT250
   FM042200 03007KT P6SM SCT250
5B5
No NOTAM Available
No
UNATNDD
NAPOLEON ARPT AUTH
PO BOX 165
NAPOLEON, ND 58561
Phone: 701-426-4537
SHANE WEIGEL
PO BOX 165
NAPOLEON, ND 58561
Phone: 701-426-4537
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
DUSK-0600.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
Crop Dusting

Runway 08/26

1600 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings
Markings Condition
Latitude 46° 29' 38"N 46° 29' 38"N
Longitude 99° 45' 51"W 99° 45' 28"W
Elevation 1,961' 1,965'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

3220 ft. x 50 ft.
ASPH
Good
NONE
LOW

6,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 128°308°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 46° 29' 50"N 46° 29' 30"N
Longitude 99° 45' 45"W 99° 45' 10"W
Elevation 1,960' 1,985'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1REG SNOW REMOVAL. CFM WINTER COND WITH AMGR DURG DAY ON 701-321-0767 OR 701-426-4537.
A110-2RWY 08/26 CLSD OCT-APR DUE TO LACK OF SNOW REMOVAL.
A110-3RWY 08 HAS 3 FT DITCH 250 FT FROM THR OUTBOUND.
A110-5DEER & BIRDS ON & INVOF ARPT.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A52-0828 FT BLDG 1100 FT DIST, 100 FT L; 45 FT TREES 1000 DIST, 100 FT R.
A52-2625 FT RAILROAD 500 FT DIST, 200 FT R.
A81-APTDUSK-0600.
NAPOLEON MUNI (IATA: 5B5) is a public airport located in NAPOLEON, ND, US.
