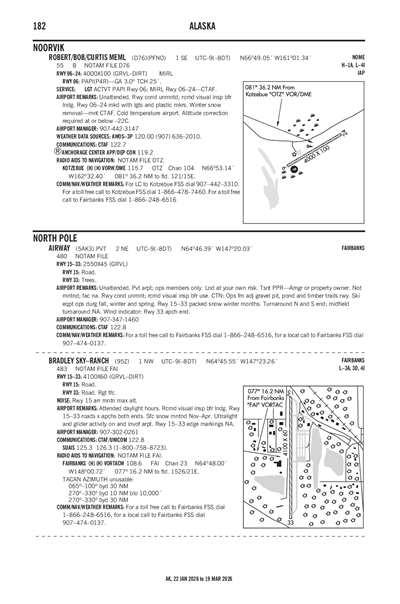

AIRWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5AK3
Local 5AK3
AIRWAY
PrivatePVT

2 miles NE of NORTH POLE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 46' 23"N 147° 20' 02"W
Elevation
480' MSL
Pattern Alt
1480' MSL
Mag Variation
16°E
Declination
28°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAFB (8nm) VFR
4:55 PM AKST
Clear
10sm
7°F
-15°F
29.77"Hg
070° 8kts
AO2A SLP108 T11401259 RVRNO PWINO $
METAR PAFB 040155Z 07008KT 10SM CLR M14/M26 A2977 RMK AO2A SLP108 T11401259 RVRNO PWINO $
+ Add Your Business

5AK3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8

FAA A/FD Pages

Terminal Area Forecast

PAFB (8nm)
Tue, 3/3 3:45 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 8:00 PM AKST
VFR
3:00 PM AKST - 12:00 PM AKST
Sky Clear
6sm
29.56"Hg
030° 12kts
Light Turbulence: 1,000 - 6,000'
MVFR
Temporary 6:00 AM AKST - 10:00 AM AKST
Mist
Few 400'
3.73sm
Calm
MVFR
Becoming 12:00 PM AKST - 8:00 PM AKST
Broken 3,000'
6sm
29.53"Hg
VRB° 5kts
TAF AMD PAFB 040045Z 0400/0505 03012KT 9999 SKC 510105 QNH2957INS
   TEMPO 0415/0419 6000 BR FEW004
   BECMG 0421/0422 VRB05KT 9999 BKN030 620305 QNH2952INS TXM16/0400Z TXN38/0416Z
5AK3
No NOTAM Available
No
UNATNDD
AIRWAY INC
PO BOX 57366
NORTH POLE, AK 99705
Phone: (907) 347-1460
GENE SCARBORO
PO BOX 55506
NORTH POLE, AK 99705
Phone: 907-347-1460
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
N/A
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

2550 ft. x 45 ft.

GRAVEL
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1PVT ARPT; OPS MEMBERS ONLY. LND AT YOUR OWN RISK. TSNT PPR - AMGR OR PROPERTY OWNER.
A110-2NOT MNTND; FAC NA. RWY COND UNMNT; RCMD VISUAL INSP BFR USE.
A110-4SKI EQPT OPS DURG FALL, WINTER & SPRING.
A110-5CTN: OPS FM ADJ GRAVEL PIT, POND & TIMBER TRAILS RWY.
A30-15/33PACKED SNOW WINTER MONTHS. TURNAROUND N & S END; MIDFIELD TURNAROUND NA.
A75-TTSNT TIE DOWN AREA NA.
A83RWY 33 APCH END.
AIRWAY (IATA: 5AK3) is a private airport located in NORTH POLE, AK, US.
