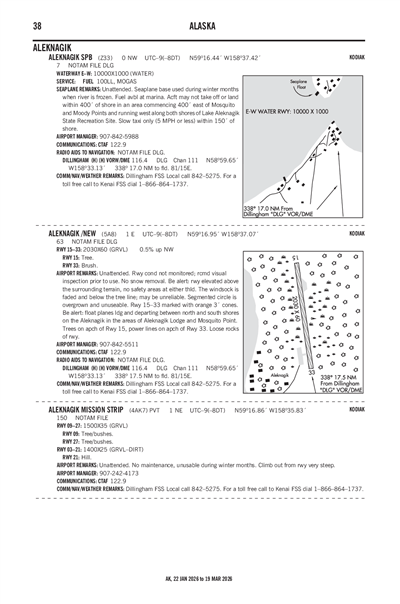

ALEKNAGIK /NEW - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5A8
Local 5A8
ALEKNAGIK /NEW
PublicPUB

1 miles E of ALEKNAGIK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
59° 16' 57"N 158° 37' 04"W
Elevation
63' MSL
Pattern Alt
1063' MSL
Mag Variation
12°E
Declination
20°E
Fuel
None Listed
FSS
DILLINGHAM (DLG)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PADL (15nm) VFR
4:56 PM AKST
Few 2,300'
10sm
8°F
-3°F
29.72"Hg
210° 6kts
AO2 SLP069 T11331194 $
METAR PADL 040156Z 21006KT 10SM FEW023 M13/M19 A2972 RMK AO2 SLP069 T11331194 $
+ Add Your Business

5A8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PADL (15nm)
Tue, 3/3 2:32 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
MVFR
Temporary 3:00 PM AKST - 5:00 PM AKST
Broken 2,000'
N/A
Calm
VFR
3:00 PM AKST - 5:00 PM AKST
Scattered 2,000'
6sm
010° 6kts
VFR
5:00 PM AKST - 3:00 PM AKST
Few 10,000'
6sm
010° 6kts
TAF PADL 032332Z 0400/0424 01006KT P6SM SCT020
   TEMPO 0400/0402 BKN020
   FM040200 01006KT P6SM FEW100
5A8
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519
Phone: 907-269-0760
KEVIN HARDIN
BOX 250
DILLINGHAM, AK 99576
Phone: 907-842-5511
DILLINGHAM FSS (DLG)
Toll Free: LC842-5275
DLG
--
--
N/A
Yes
N/A
No
Tie-Down
No
None
None
None
None
None

Runway 15/33

2030 ft. x 60 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 164°344°
Traffic Pattern
Markings NSTD NSTD
Markings Condition
Latitude 59° 17' 07"N 59° 16' 48"N
Longitude 158° 37' 10"W 158° 36' 59"W
Elevation 62' 52'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO USE. NO SNOW REMOVAL.
A110-2BE ALERT: FLOAT PLANES LNDG & DEPG BTN N AND S SHORES ON THE ALEKNAGIK IN THE AREAS OF ALEKNAGIK LODGE & MOSQUITO POINT.
A110-3BE ALERT: RWY ELEVD ABV SRNDG TRRN; NO SAFETY AREAS AT EITHER THLD.
A110-5RWY SLOPES DOWN TOWARD DEP END OF RWY 15.
A110-6TREES ON APCH OF RWY 15, PWR LINES ON APCH OF RWY 33.
A110-7LOOSE ROCKS ON RWY.
A110-8SEGMENTED CIRCLE IS OVERGROWN AND UNUSEABLE
A42-15_MARKRWY 15/33 MKD WITH ORANGE 3 FT CONES.
A83THE WINDSOCK IS FADED AND BELOW THE TREE LINE; MAY BE UNREL.
ALEKNAGIK /NEW (IATA: 5A8) is a public airport located in ALEKNAGIK, AK, US.
