iFlightPlanner



...

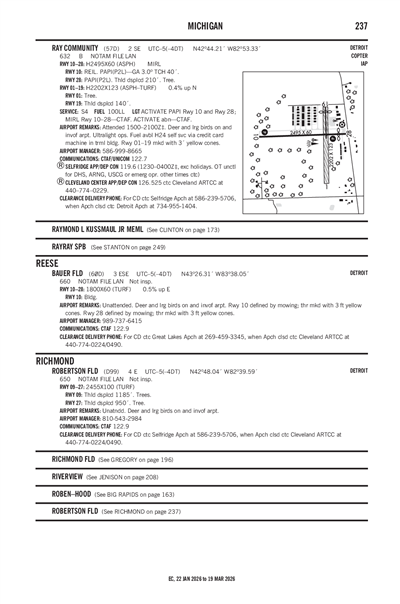

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

57D
RAY COMMUNITY
PublicPUB

2 miles SE of RAY, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 44' 12"N 82° 53' 20"W
632' MSL
1632' MSL
06W
100LL
LANSING (LAN)
DETROIT
CLEVELAND (ZOB)
4/17/25-5/15/25
KMTC (8nm) VFR
11:55 PM EST
Clear
10sm
46°F
30°F
30.09"Hg
250° 7kts
AO2 SLP196 T00781012 401590062 $
METAR KMTC 040455Z AUTO 25007KT 10SM CLR 08/M01 A3009 RMK AO2 SLP196 T00781012 401590062 $
+ Add Your Business

57D FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMTC (8nm)
Mon, 11/3 8:36 PM EST
Mon, 11/3 8:00 PM EST - Tue, 11/4 9:00 PM EST
VFR
Becoming 4:00 PM EST - 9:00 PM EST
Few 15,000'
6sm
30.15"Hg
VRB° 6kts
VFR
8:00 PM EST - 2:00 AM EST
Few 3,000'
6sm
30.03"Hg
250° 12kts
Moderate, In Cloud, Occasional: 3,000 - 12,000'
Moderate, Clear Air, Frequent: 3,000 - 3,000'
VFR
Becoming 2:00 AM EST - 10:00 AM EST
Sky Clear
6sm
30.12"Hg
270° 9kts
VFR
Becoming 10:00 AM EST - 4:00 PM EST
Few 15,000'
6sm
30.24"Hg
260° 15kts
TAF AMD KMTC 040136Z 0401/0502 25012KT 9999 FEW030 530003 540309 QNH3004INS
   BECMG 0407/0408 27009KT 9999 SKC QNH3013INS
   BECMG 0415/0416 26015KT 9999 FEW150 QNH3023INS
   BECMG 0421/0422 VRB06KT 9999 FEW150 QNH3014INS TX14/0420Z TN04/0412Z LAST NO AMDS AFT 0404 NEXT 0412
57D
EffectiveExpiresCategoryNOTAM
Domestic
10/21/25
1415Z
11/30/25
2359Z
Runway!LAN 10/227 57D RWY 28 PAPI U/S 2510211415-2511302359
10/21/25
1414Z
11/30/25
2359Z
Runway!LAN 10/226 57D RWY 10 PAPI U/S 2510211414-2511302359
10/6/25
1132Z
11/20/25
1131Z
!LAN 10/066 57D OBST TOWER LGT (ASR 1007943) 424240.00N0824637.00W (5.1NM ESE 57D) 910.1FT (310.4FT AGL) U/S 2510061132-2511201131
FDC
9/23/24
1519Z
!FDC 4/9277 57D IAP RAY COMMUNITY, RAY, MI.
RNAV (GPS)-A, ORIG-B...
CIRCLING RWY 1/19 NA.
2409231519-2609231519EST
No
1000-1600
MACOMB AIRWAYS, INC
59819 INDIAN TRL
RAY, MI 48096-3809
Phone: 586-749-9558
JOE KOZAR
59819 INDIAN TRL
RAY, MI 48096-3809
Phone: 586-999-8665
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
ACTVT ABN - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 01/19

2202 ft. x 123 ft.
ASPH TURF
Fair
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 359°179°
Traffic Pattern Left Left
Markings BSC
Markings Condition FAIR GOOD
Latitude 42° 43' 60"N 42° 44' 22"N
Longitude 82° 53' 15"W 82° 53' 15"W
Elevation 624' 632'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

2495 ft. x 60 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 88°268°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 44' 13"N 42° 44' 14"N
Longitude 82° 53' 41"W 82° 53' 07"W
Elevation 630' 628'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-2ULTRALIGHT OPS.
A110-3FOR CD CTC SELFRIDGE APCH AT 586-239-5706, WHEN APCH CLSD CTC DETROIT APCH AT 734-955-1404.
RAY COMMUNITY (IATA: 57D) is a public airport located in RAY, MI.
