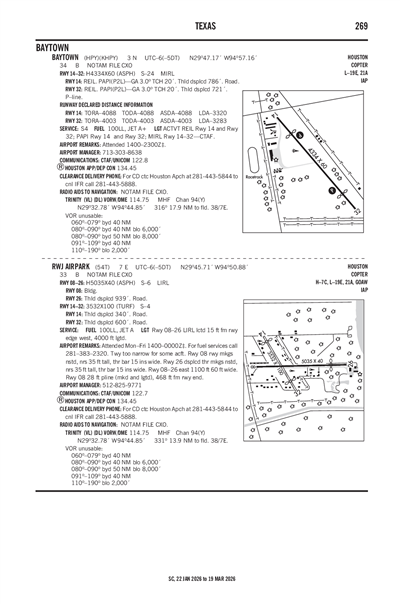

RWJ AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

54T
Local 54T
RWJ AIRPARK
PublicPUB

7 miles E of BAYTOWN, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 45' 43"N 94° 50' 53"W
Elevation
33' MSL
Pattern Alt
1033' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KT41 (13nm) IFR
8:55 PM CST
Overcast 700'
10sm
70°F
69°F
30.09"Hg
150° 11kts
AO2 T02130204
METAR KT41 040255Z AUTO 15011KT 10SM OVC007 21/20 A3009 RMK AO2 T02130204
+ Add Your Business

54T FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

Arrival

BLUBELL STAR 124.225
CESAN STAR 121.3
HUDZY STAR 120.05
OHIIO STAR 120.05
SNDAY RNAV STAR 124.225
TKNIQ STAR 119.625
TSHIRT STAR 119.175
TSHRT STAR 119.175
WAPPL STAR 120.05

Approach

HOUSTON APPROACH 134.45

Departure

BLTWY RNAV DP 134.45
BORRN RNAV DP 134.45
DREMR DP 134.45
HOODO RNAV DP 134.45
HOUSTON DEPARTURE 134.45
KARRR RNAV DP 134.45
LURIC DP 134.45
MMALT RNAV DP 134.45
STRYA DP 134.45
STYCK DP 134.45
WATFO DP 134.45
WYLSN RNAV DP 134.45

Terminal Area Forecast

KEFD (19nm)
Tue, 3/3 2:00 PM CST
Tue, 3/3 2:00 PM CST - Wed, 3/4 8:00 PM CST
MVFR
2:00 PM CST - 6:00 PM CST
Light Showers and Rain
Overcast 2,500'
Broken 1,500'
5.59sm
30.06"Hg
160° 15kts
Gusts 20kts
IFR
Becoming 6:00 PM CST - 10:00 AM CST
Mist
Overcast 500'
4.97sm
30.06"Hg
130° 10kts
MVFR
Becoming 10:00 AM CST - 8:00 PM CST
Overcast 2,000'
Broken 1,200'
Scattered 700'
6sm
30.06"Hg
130° 10kts
TAF KEFD 032000Z 0320/0502 16015G20KT 9000 -SHRA BKN015 OVC025 QNH3005INS
   BECMG 0400/0401 13010KT 8000 BR OVC005 QNH3005INS
   BECMG 0416/0417 13010KT 9999 NSW SCT007 BKN012 OVC020 QNH3007INS TX26/0321Z TN20/0409Z
54T
EffectiveExpiresCategoryNOTAM
Domestic
2/10/26
2145Z
5/12/26
0500Z
!CXO 02/178 54T OBST TOWER LGT (ASR 1050738) 295031.80N0945159.70W (4.9NM N 54T) 294.0FT (255.9FT AGL) U/S 2602102145-2605120500
2/1/26
1200Z
2/28/26
2359Z
!CXO 01/468 54T OBST CRANE (ASN UNKNOWN) 294820N0945127W (2.2NM N 54T) UNKNOWN (150FT AGL) FLAGGED AND LGTD 2602011200-2602282359
12/21/25
1409Z
3/21/26
0500Z
!CXO 12/420 54T OBST TOWER LGT (ASR 1233654) 294730.40N0945147.10W (1.9NM NNW 54T) 143.0FT (110.9FT AGL) U/S 2512211409-2603210500
FDC
10/31/25
2050Z
!FDC 5/9835 54T SID RWJ AIRPARK, BAYTOWN, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2510312050-2612312050EST
10/31/25
2050Z
!FDC 5/9833 54T SID RWJ AIRPARK, BAYTOWN, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2510312050-2612312050EST
3/12/25
1402Z
!FDC 5/2005 54T SID RWJ AIRPARK, BAYTOWN, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
No
MON-FRI 0800-1800
RWJ PROPERTY OWNERS ASSOCIATION
15814 SUNDOWNER
MOUNT BELVIEU, TX 77580
Phone: 281-573-9609
DENNIS J. COX
15506 SUNDOWNER
BEACH CITY, TX 77523
Phone: 512-825-9771
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
Sunset to Sunrise
--
N/A
Yes
No
No
Hanger, Tie-Down
No
None
None
None
None
Aircraft Sales

Runway 08/26

5035 ft. x 40 ft.
ASPH
Fair
NONE
LOW

6,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 29° 45' 42"N 29° 45' 42"N
Longitude 94° 51' 16"W 94° 50' 19"W
Elevation 30' 27'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3532 ft. x 100 ft.
TURF
Fair
NONE


4,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 148°328°
Traffic Pattern
Markings
Markings Condition
Latitude 29° 45' 59"N 29° 45' 29"N
Longitude 94° 51' 11"W 94° 50' 49"W
Elevation 33' 28'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TWY TOO NARROW FOR SOME ACFT.
A110-4RWY 08 28 FT PLINE (MKD & LGTD), 468 FT FM RWY END.
A110-5FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
A32-08/26EAST 1100 FT 60 FT WIDE.
A40-08/26LIRL LCTD 15 FT FM RWY EDGE WEST, 4000 FT LGTD.
A42-08_MARKRWY MKGS NSTD, NRS 35 FT TALL, THR BAR 15 INS WIDE.
A42-26_MARKDSPLCD THR MKGS NSTD, NRS 35 FT TALL, THR BAR 15 INS WIDE.
A52-14APCH SLOPE 21:1 TO DSPLCD THR OVR 31 FT TREES, 675 FT DSTC, 35 FT B.
A57-14APCH RATIO 15:1 TO DSPLCD THR OVER 36 FT BLDG, 565 FT DSTC, 45 FT L.
A57-26APCH SLOPE 0:1 TO DSPLCD THR; +4 FT FENCE 92 FT R CNTRLN & +15 FT RD, 60 FT R CNTRLN AT DSPLCD THR; 18:1 OVR 85 FT WATER TWR 1600 FT 185 FT L.
A58-26+10 FT RD 0-200 FT FM THR 60 FT R CNTRLN; +4 FT FENCE 0-200 FT FM THR 92 FT R CNTRLN.
A70-100LLFOR FUEL SERVICES CALL 281-383-2320.
RWJ AIRPARK (IATA: 54T) is a public airport located in BAYTOWN, TX, US.
