No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

54J
DEFUNIAK SPRINGS
PublicPUB

2 miles W of DEFUNIAK SPRINGS, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 43' 52"N 86° 09' 14"W
289' MSL
1289' MSL
04W
JET A (FSII), 100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
7/11/24-8/8/24
K54J MVFR
5:35 AM CDT
Mist
Clear
3sm
72°F
71°F
29.90"Hg
320° 4kts
AO2 T02200216
K54J 191035Z AUTO 32004KT 3SM BR CLR 22/22 A2990 RMK AO2 T02200216
Add Your Business

54J FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3P

AWOS-3P
850-892-0147
 118.725

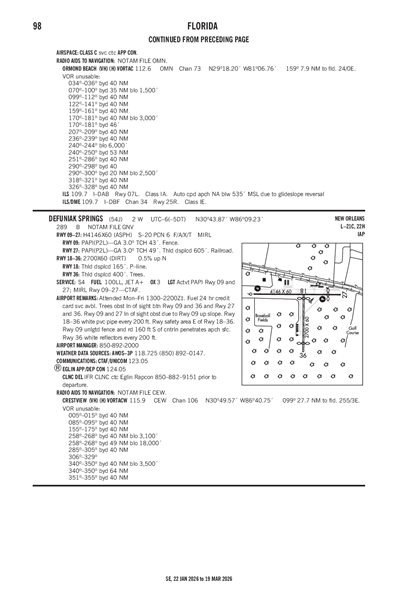

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEGI (20nm)
Thu, 9/19 4:00 AM CDT
Thu, 9/19 4:00 AM CDT - Fri, 9/20 10:00 AM CDT
VFR
4:00 AM CDT - 10:00 PM CDT
Scattered 5,000'
6sm
29.85"Hg
340° 6kts
VFR
Becoming 10:00 PM CDT - 10:00 AM CDT
Broken 5,000'
6sm
29.88"Hg
010° 6kts
TAF KEGI 190900Z 1909/2015 34006KT 9999 SCT050 QNH2985INS WIND VRB03KT AFT 1922
   BECMG 2003/2004 01006KT 9999 BKN050 QNH2987INS TX32/1918Z TN21/1920Z LAST NO AMDS AFT 1909 NEXT 1914
54J
Domestic
9/10/241414Z !GNV 09/126 54J OBST TOWER LGT (ASR 1026868) 304456.00N0860601.00W (3.0NM ENE 54J) 656.2FT (430.1FT AGL) U/S 2409101414-2409251414
9/10/241402Z !GNV 09/125 54J OBST TOWER LGT (ASR 1315773) 305453.53N0860746.40W (11.1NM NE 54J) 596FT (315FT AGL) U/S 2409101402-2410251401
9/4/241227Z !GNV 09/044 54J OBST TOWER LGT (ASR 1053024) 304417.00N0861321.00W (3.6NM W 54J) 516.7FT (264.8FT AGL) U/S 2409041227-2411042359
8/7/240018Z !GNV 08/267 54J OBST TOWER LGT (ASR 1028148) 304123.30N0860014.10W (8.1NM ESE 54J) 465.6FT (264.8FT AGL) U/S 2408070018-2412050018
FDC
7/10/241754Z !FDC 4/9782 54J IAP DEFUNIAK SPRINGS, DEFUNIAK SPRINGS, FL.
RNAV (GPS) RWY 9, AMDT 1B...
CIRCLING CAT A MDA 800/HAA 511.
2407101754-2607101754EST
No
MON-FRI 0800-1700
CITY OF DE FUNIAK SPRINGS
P.O. BOX 685
DEFUNIAK SPRINGS, FL 32435-0685
Phone: 850-892-8500
KOBY TOWNESEND
1931 US HIGHWAY 90 W
DE FUNIAK SPRINGS, FL 32435
Phone: (850) 892-2000
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT PAPI RWY 9 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
35
1
0
2
0
0
Major
Major
High Pressure
None
Avionics
Pilot Instruction

Runway 09/27

4146 ft. x 60 ft.
ASPH
Fair
NONE
MED
6 /F/A/X/T
20,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 43' 58"N 30° 43' 57"N
Longitude 86° 09' 39"W 86° 08' 51"W
Elevation 284' 278'
Threshold Crossing Height 43 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

2700 ft. x 60 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 30° 43' 57"N 30° 43' 30"N
Longitude 86° 09' 11"W 86° 09' 12"W
Elevation 282' 269'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3TREES OBST LN OF SIGHT BTN RWY 09 & 36 AND RWY 27 & 36. RWY 09 & 27 LN OF SIGHT OBST DUE TO RWY 09 UP SLOPE.
A110-4RWY SAFETY AREA E OF RWY 18/36.
DEFUNIAK SPRINGS (IATA: 54J) is a public airport located in DEFUNIAK SPRINGS, FL.
