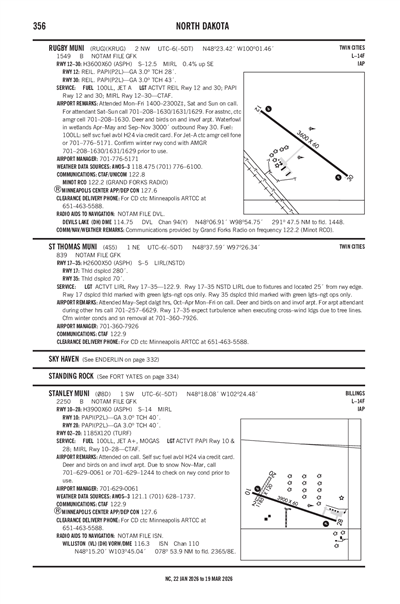

ST THOMAS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4S5
Local 4S5
ST THOMAS MUNI
PublicPUB

1 miles NE of ST THOMAS, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 37' 35"N 97° 26' 21"W
Elevation
839' MSL
Pattern Alt
1839' MSL
Mag Variation
3°E
Declination
7°E
Fuel
None Listed
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K2C8 (12nm) MVFR
7:55 PM CST
Mist
Overcast 1,100'
6sm
18°F
18°F
30.11"Hg
170° 6kts
AO2
METAR K2C8 040155Z AUTO 17006KT 6SM BR OVC011 M08/M08 A3011 RMK AO2
+ Add Your Business

4S5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KRDR (41nm)
Tue, 3/3 12:00 PM CST
Tue, 3/3 12:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
Temporary 12:00 PM CST - 4:00 PM CST
Mist
Overcast 200'
3.73sm
Calm
LIFR
12:00 PM CST - 5:00 PM CST
Overcast 300'
6sm
30.06"Hg
VRB° 6kts
MVFR
Becoming 5:00 PM CST - 6:00 AM CST
Broken 1,000'
6sm
30.06"Hg
VRB° 6kts
VFR
Becoming 6:00 AM CST - 6:00 PM CST
Scattered 4,000'
6sm
30.03"Hg
240° 12kts
Gusts 18kts
TAF KRDR 031800Z 0318/0424 VRB06KT 9999 OVC003 620033 QNH3007INS
   TEMPO 0318/0322 6000 BR OVC002 620023
   BECMG 0323/0324 VRB06KT 9999 BKN010 620103 QNH3007INS
   BECMG 0412/0413 24012G18KT 9999 SCT040 QNH3003INS TXM05/0417Z TNM08/0318Z
4S5
No NOTAM Available
No
MAY-SEP DALGT
OCT-APR MON-FRI ON CALL
ST. THOMAS AIRPORT AUTHORITY
BOX 291
ST THOMAS, ND 58276
Phone: 701-360-7926
RYAN ALME
BOX 291
ST THOMAS, ND 58276
Phone: 701-360-7926
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT LIRL RY 17/35 - 122.9.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

2600 ft. x 50 ft.
ASPH
Fair
NONE
NSTD

5,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 37' 48"N 48° 37' 22"N
Longitude 97° 26' 21"W 97° 26' 21"W
Elevation 835' 837'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1CFM WINTER CONDS & SN REMOVAL 701-360-7926.
A110-3RWY 17/35; EXPECT TURBULENCE WHEN EXECUTING CROSS-WIND LNDGS DUE TO TREE LINES.
A110-4DEER AND BIRDS ON & INVOF APRT
A110-5FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A40-17/35NSTD LIRL DUE TO FIXTURES & LCTD 25 FT FROM RWY EDGE.
A50-1760 FT TREE LINE 340 FT L AND R OF CNTRLN AT RWY 17 END PENETRATES 7:1 TRNSL SFC WITH A 3:1 SLOPE.
A50-3550 FT TREE LINE 160 FT R OF CNTRLN AT RWY 35 END PENETRATES 7:1 TRNSL SFC WITH A 1:1 SLOPE.
A51-17DSPLCD THLD MKD WITH GREEN LGTS - NIGHT OPS ONLY.
A51-35DSPLCD THLD MKD WITH GREEN LGTS - NIGHT OPS ONLY.
A57-1718 FT ROAD 380 FT FM DSPLCD THLD.
A57-3516 FT ROAD 90 FT FM DSPLCD THLD.
A58-1718 FT ROAD 100 FT FM THLD.
A58-3516 FT ROAD 20 FT FM THLD.
A81-APTACTVT LIRL RY 17/35 - 122.9.
ST THOMAS MUNI (IATA: 4S5) is a public airport located in ST THOMAS, ND, US.
