iFlightPlanner



...
GOLD BEACH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4S1
Local 4S1
GOLD BEACH MUNI
PublicPUB

0 miles W of GOLD BEACH, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 24' 55"N 124° 25' 30"W
Elevation
21' MSL
Pattern Alt
1021' MSL
Mag Variation
14°E
Declination
14°E
Fuel
100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
K4S1 MVFR
3:35 AM PST
Mist
Overcast 2,600'
Broken 1,700'
Few 800'
6sm
54°F
52°F
30.03"Hg
230° 14kts
Gusts 26kts
AO2 PK WND 17035/42 PRESRR
METAR K4S1 041135Z AUTO 23014G26KT 6SM BR FEW008 BKN017 OVC026 12/11 A3003 RMK AO2 PK WND 17035/42 PRESRR
+ Add Your Business

4S1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.15
(541) 247-2518

Common

CTAF 122.8
ACTVT REIL RWY 16 & 34; PAPI 16; MIRL RWY 16/34 - CTAF.
UNICOM 122.8
UNICOM UNMON.

Center

SEATTLE CENTER 127.55
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON 127.55/254.35 (HORTON RCAG ).

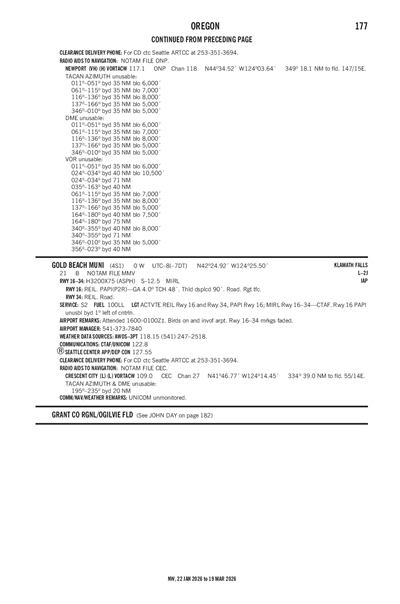

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KCEC (39nm)
Wed, 3/4 3:46 AM PST
Wed, 3/4 4:00 AM PST - Thu, 3/5 4:00 AM PST
VFR
Temporary 4:00 AM PST - 5:00 AM PST
No Clouds
N/A
180° 23kts
Gusts 29kts
MVFR
4:00 AM PST - 6:00 AM PST
Light Showers and Rain and Mist
Overcast 2,500'
Broken 1,500'
Few 700'
6sm
180° 13kts
Gusts 21kts
MVFR
6:00 AM PST - 12:00 PM PST
Light Showers and Rain
Overcast 8,000'
Broken 3,500'
Broken 2,500'
6sm
260° 10kts
VFR
12:00 PM PST - 7:00 PM PST
Light Showers and Rain
Broken 5,000'
6sm
280° 10kts
MVFR
7:00 PM PST - 11:00 PM PST
Light Showers and Rain
Overcast 6,000'
Broken 2,500'
6sm
350° 9kts
VFR
11:00 PM PST - 4:00 AM PST
Scattered 3,500'
6sm
360° 6kts
TAF KCEC 041146Z 0412/0512 18013G21KT 6SM -SHRA BR FEW007 BKN015 OVC025
   TEMPO 0412/0413 18023G29KT
   FM041400 26010KT P6SM -SHRA BKN025 BKN035 OVC080
   FM042000 28010KT P6SM -SHRA BKN050
   FM050300 35009KT P6SM -SHRA BKN025 OVC060
   FM050700 36006KT P6SM SCT035
4S1
EffectiveExpiresCategoryNOTAM
Domestic
2/12/26
0323Z
3/5/26
2359Z
!MMV 02/075 4S1 SVC AUTOMATED WX BCST SYSTEM U/S 2602120323-2603052359
2/10/26
2030Z
4/10/26
2359Z
!MMV 02/065 4S1 OBST TOWER LGT (ASR 1034379) 422624.70N1242500.70W (1.5NM NNE 4S1) 833.0FT (136.2FT AGL) U/S 2602102030-2604102359
1/6/26
1420Z
Runway!MMV 01/034 4S1 RWY 16 RWY END ID LGT U/S 2601061420-2607062111EST
No
0800-1700
PORT OF GOLD BEACH
BOX 1126
GOLD BEACH, OR 97444
Phone: 541-247-6269
WALT SCHERBATH
BOX 1126
GOLD BEACH, OR 97444
Phone: 541-373-7840
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
ACTVT REIL RWY 16 & 34; PAPI 16; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 16/34

3200 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 175°355°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 42° 25' 11"N 42° 24' 40"N
Longitude 124° 25' 31"W 124° 25' 28"W
Elevation 20' 20'
Threshold Crossing Height 48 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P2R --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON AND INVOF ARPT.
A110-2FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A14OPS SCOTT PEARSON 541-373-7835.
A42-16_CONDFADED
A42-34_CONDFADED
A43-16UNUSBL BYD 1 DEG LEFT OF CNTRLN.
A57-16APCH RATIO 20:1 TO DTHR; TREES 4300 FT.
A81-APTACTVT REIL RWY 16 & 34; PAPI 16; MIRL RWY 16/34 - CTAF.
A82UNICOM UNMON.
GOLD BEACH MUNI (IATA: 4S1) is a public airport located in GOLD BEACH, OR, US.
