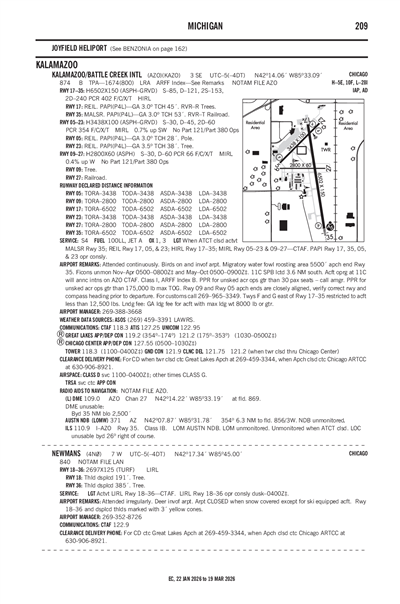

NEWMANS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4N0
Local 4N0
NEWMANS
PublicPUB

7 miles W of KALAMAZOO, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 17' 20"N 85° 45' 00"W
Elevation
840' MSL
Pattern Alt
1840' MSL
Mag Variation
6°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KAZO (10nm) MVFR
6:53 AM EST
Mist
Clear
3sm
24°F
23°F
30.22"Hg
Calm
AO2 SLP245 I1000 I6001 T10441050 11011 21050 50004
METAR KAZO 041153Z 00000KT 3SM R35/5000VP6000FT BR CLR M04/M05 A3022 RMK AO2 SLP245 I1000 I6001 T10441050 11011 21050 50004
+ Add Your Business

4N0 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT LIRL RWY 18/36 - CTAF. LIRL RWY 18/36 OPR CONSLY DUSK-2200.

FAA A/FD Pages

Terminal Area Forecast

KAZO (10nm)
Wed, 3/4 6:20 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
Temporary 7:00 AM EST - 8:00 AM EST
Mist
No Clouds
2sm
Calm
MVFR
7:00 AM EST - 10:00 AM EST
Mist
Sky Clear
3sm
VRB° 3kts
VFR
10:00 AM EST - 4:00 PM EST
Scattered 25,000'
6sm
130° 5kts
MVFR
4:00 PM EST - 10:00 PM EST
Broken 2,700'
6sm
130° 6kts
IFR
10:00 PM EST - 1:00 AM EST
Broken 800'
6sm
VRB° 4kts
LIFR
1:00 AM EST - 7:00 AM EST
Mist
Overcast 400'
1.5sm
VRB° 4kts
LIFR
1:00 AM EST - 7:00 AM EST
Light Showers and Rain and Mist
No Clouds
0.75sm
Calm
TAF KAZO 041120Z 0412/0512 VRB03KT 3SM BR SKC
   TEMPO 0412/0413 2SM BR
   FM041500 13005KT P6SM SCT250
   FM042100 13006KT P6SM BKN027
   FM050300 VRB04KT P6SM BKN008
   FM050600 VRB04KT 1 1/2SM BR OVC004
   PROB30 0506/0512 3/4SM -SHRA BR
4N0
No NOTAM Available
No
IREG
SKYVIEW ESTATES ASSOCIATION
234 N SKYVIEW DR
KALAMAZOO, MI 49009
Phone: 269-352-8726
RICHARD KROLL
165 N 2ND ST
KALAMAZOO, MI 49009
Phone: 269-352-8726
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT LIRL RWY 18/36 - CTAF. LIRL RWY 18/36 OPR CONSLY DUSK-2200.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

2697 ft. x 125 ft.
TURF
Good
NONE
LOW

--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER INVOF ARPT.
A110-2RWY 36: +31 FT PLINE, 393 FT DIST, 12:1 AT RWY END.
A110-3ARPT CLSD WHEN SNOW COVD EXC FOR SKI EQUIPPED ACFT.
A110-4FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A42-18_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-36_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A57-18APCH RATIO 0:1 TO DTHR OVR 61 FT TREE, 0 FT DIST, 114 FT R.
A57-36APCH RATIO 0:1 TO DTHR OVR 20 FT BRUSH, 0 FT DIST, 122 FT R.
A81-APTACTVT LIRL RWY 18/36 - CTAF. LIRL RWY 18/36 OPR CONSLY DUSK-2200.
E111PRVDD ALL OBSTS WI RWY APCH SLP SFCS REMOVED/LWRD TO PRVD A CLEAR 20:1 APCH SLP; 20:1 APCH SLP CLNC OVR ALL OBSTNS IF 25 FT PLINE CANNOT BE LWRD OR BURIED.
NEWMANS (IATA: 4N0) is a public airport located in KALAMAZOO, MI, US.
