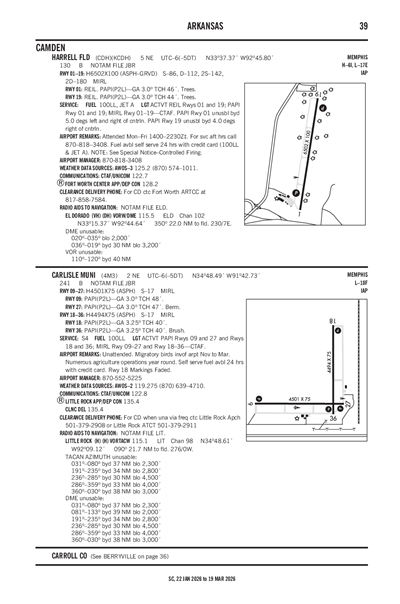

CARLISLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4M3
Local 4M3
CARLISLE MUNI
PublicPUB

2 miles NE of CARLISLE, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 48' 30"N 91° 42' 44"W
Elevation
241' MSL
Pattern Alt
1241' MSL
Mag Variation
1°W
Declination
3°E
Fuel
100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
K4M3 VFR
9:55 PM CST
No Clouds
10sm
70°F
59°F
30.09"Hg
180° 7kts
A01
METAR K4M3 040355Z AUTO 18007KT 10SM 21/15 A3009 RMK A01
+ Add Your Business

4M3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-2 119.275
(870) 639-4710

Common

CTAF 122.8
ACTVT PAPI RWYS 09/27 & 18/36; MIRL RWY 09/27 & RWY 18/36 - CTAF.
UNICOM 122.8

Clearance

Clearance Delivery 135.4

Approach

LITTLE ROCK APPROACH 135.4

Departure

LITTLE ROCK DEPARTURE 135.4

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLRF (22nm)
Tue, 3/3 5:00 PM CST
Tue, 3/3 5:00 PM CST - Wed, 3/4 11:00 PM CST
VFR
5:00 PM CST - 8:00 PM CST
Few 2,500'
6sm
30.00"Hg
200° 12kts
Gusts 18kts
VFR
Becoming 8:00 PM CST - 5:00 AM CST
Sky Clear
6sm
30.06"Hg
190° 10kts
MVFR
Becoming 5:00 AM CST - 6:00 AM CST
Overcast 6,000'
Broken 1,500'
6sm
30.09"Hg
180° 10kts
LIFR
Becoming 6:00 AM CST - 9:00 AM CST
Mist
Overcast 400'
4.97sm
30.09"Hg
180° 10kts
MVFR
Becoming 9:00 AM CST - 12:00 PM CST
Broken 1,500'
6sm
30.03"Hg
180° 10kts
Gusts 15kts
VFR
Becoming 12:00 PM CST - 11:00 PM CST
Scattered 2,000'
6sm
30.00"Hg
200° 10kts
Gusts 20kts
TAF KLRF 032300Z 0323/0505 20012G18KT 9999 FEW025 QNH3000INS
   BECMG 0402/0403 19010KT 9999 SKC QNH3005INS
   BECMG 0411/0412 18010KT 9999 BKN015 OVC060 QNH3009INS
   BECMG 0412/0413 18010KT 8000 BR OVC004 QNH3010INS
   BECMG 0415/0416 18010G15KT 9999 NSW BKN015 QNH3004INS
   BECMG 0418/0419 20010G20KT 9999 SCT020 QNH2999INS TX25/0420Z TN16/0412Z
4M3
EffectiveExpiresCategoryNOTAM
Domestic
2/19/26
1704Z
5/19/26
2359Z
!JBR 02/191 4M3 SVC AUTOMATED WX BCST SYSTEM U/S 2602191704-2605192359
11/19/25
1700Z
3/19/26
1700Z
!JBR 11/142 4M3 OBST TOWER LGT (ASR 1013351) 344657.00N0914712.00W (4.0NM WSW 4M3) 414.0FT (199.1FT AGL) U/S 2511191700-2603191700
No
UNATNDD
CITY OF CARLISLE
P.O. BOX 49
CARLISLE, AR 72024
Phone: 870-552-9420
LARRY PASLEY
PO BOX 49
CARLISLE, AR 72024
Phone: 870-552-5225
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
ACTVT PAPI RWYS 09/27 & 18/36; MIRL RWY 09/27 & RWY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting

Runway 09/27

4501 ft. x 75 ft.
ASPH
Fair
NONE
MED

17,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 48' 22"N 34° 48' 21"N
Longitude 91° 43' 21"W 91° 42' 27"W
Elevation 239' 240'
Threshold Crossing Height 48 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4494 ft. x 75 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR FAIR
Latitude 34° 49' 00"N 34° 48' 16"N
Longitude 91° 42' 33"W 91° 42' 34"W
Elevation 238' 240'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2NMRS AGRICULTURE OPNS YEAR ROUND.
A110-3MIGRATORY BIRDS INVOF ARPT NOV TO MARCH
A110-4FOR CD WHEN UNA VIA FREQ CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911
A42-18_CONDRWY 18 MARKINGS FADED.
A70-100LLSELF SERVE FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT PAPI RWYS 09/27 & 18/36; MIRL RWY 09/27 & RWY 18/36 - CTAF.
E111PRE DATES THE ACT.
CARLISLE MUNI (IATA: 4M3) is a public airport located in CARLISLE, AR, US.
