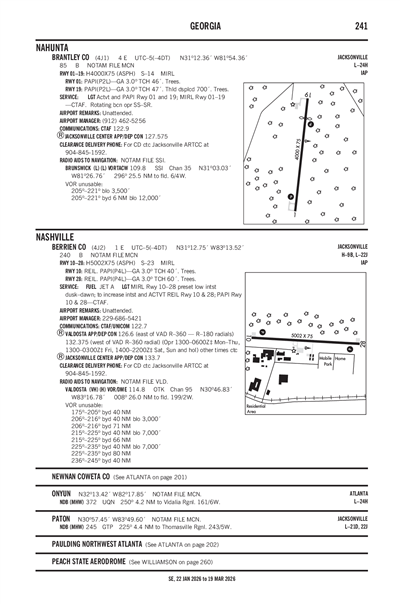

BRANTLEY COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4J1
Local 4J1
BRANTLEY COUNTY
PublicPUB

4 miles E of NAHUNTA, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 12' 22"N 81° 54' 22"W
Elevation
85' MSL
Pattern Alt
1085' MSL
Mag Variation
7°W
Declination
6°W
Fuel
None Listed
FSS
MACON (MCN)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KJES (21nm) LIFR
11:35 PM EST
Fog
Broken 1,700'
0.5sm
50°F
50°F
30.35"Hg
Calm
AO2
METAR KJES 040435Z AUTO 00000KT 1/2SM FG BKN017 10/10 A3035 RMK AO2
+ Add Your Business

4J1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.

Center

JACKSONVILLE CENTER 127.575
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 127.575/269.025 (ALMA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSSI (27nm)
Tue, 3/3 6:40 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 10:00 PM EST
Mist
Overcast 300'
2sm
030° 10kts
LIFR
Temporary 7:00 PM EST - 10:00 PM EST
Fog
Overcast 200'
0.5sm
Calm
LIFR
10:00 PM EST - 12:00 AM EST
Fog
Overcast 200'
0.25sm
040° 6kts
LIFR
12:00 AM EST - 9:30 AM EST
Fog
Overcast 200'
0.25sm
040° 4kts
LIFR
9:30 AM EST - 10:00 AM EST
Mist
Overcast 400'
1sm
040° 5kts
LIFR
10:00 AM EST - 11:00 AM EST
Mist
Broken 400'
2sm
060° 8kts
IFR
11:00 AM EST - 1:00 PM EST
Mist
Overcast 1,200'
Broken 900'
5sm
070° 9kts
VFR
1:00 PM EST - 7:00 PM EST
Broken 3,500'
Scattered 1,500'
6sm
080° 10kts
TAF KSSI 032340Z 0400/0424 03010KT 2SM BR OVC003
   TEMPO 0400/0403 1/2SM FG OVC002
   FM040300 04006KT 1/4SM FG OVC002
   FM040500 04004KT 1/4SM FG OVC002
   FM041430 04005KT 1SM BR OVC004
   FM041500 06008KT 2SM BR BKN004
   FM041600 07009KT 5SM BR BKN009 OVC012
   FM041800 08010KT P6SM SCT015 BKN035
4J1
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0655Z
6/23/26
0655Z
!MCN 02/608 4J1 OBST TOWER LGT (ASR 1023735) 311602.90N0820029.10W (6.3NM NW 4J1) 382.9FT (312.0FT AGL) U/S 2602230655-2606230655
2/16/26
2325Z
4/2/26
0500Z
!MCN 02/401 4J1 OBST TOWER LGT (ASR 1019561) 310912.00N0815800.00W (4.5NM SW 4J1) 820.9FT (774.9FT AGL) U/S 2602162325-2604020500
2/13/26
0242Z
3/15/26
2300Z
!MCN 02/336 4J1 OBST TOWER LGT (ASR 1328910) 311948.52N0820014.47W (8.9NM NW 4J1) 422FT (365FT AGL) U/S 2602130242-2603152300
1/24/26
0058Z
3/10/26
0057Z
!MCN 01/531 4J1 OBST TOWER LGT (ASN 2020-ASO-5498-OE) 312014N0814630W (10.5NM NE 4J1) 333FT (265FT AGL) U/S 2601240058-2603100057
12/5/25
1653Z
Runway!MCN 12/159 4J1 RWY 01 PAPI U/S 2512051653-2604282111EST
9/3/25
1340Z
Runway!MCN 09/051 4J1 RWY 19 PAPI UNUSABLE 2509031340-2603032111EST
No
UNATNDD
BRANTLEY COUNTY
33 ALLEN RD, PO BOX 398 117 BRANTLY STREET
NAHUNTA, GA 31553
Phone: 912-462-5256
JOEY CASON
33 ALLEN RD PO BOX 792
NAHUNTA, GA 31553
Phone: (912) 462-5256
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

4000 ft. x 75 ft.
ASPH
Good
NONE
MED

14,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 6°186°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 12' 02"N 31° 12' 42"N
Longitude 81° 54' 24"W 81° 54' 19"W
Elevation 80' 81'
Threshold Crossing Height 46 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A81-APTACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
BRANTLEY COUNTY (IATA: 4J1) is a public airport located in NAHUNTA, GA, US.
