4H1
Local 4H1
SCHAUMBURG MUNI HELISTOP
PublicPUB

24 miles NW of CHICAGO/SCHAUMBURG, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 02' 52"N 88° 03' 10"W
Elevation
730' MSL
Pattern Alt
1730' MSL
Mag Variation
4°W
Declination
1°W
Fuel
None Listed
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
K06C (4nm) IFR
10:35 PM CST
Overcast 700'
5sm
35°F
33°F
30.22"Hg
Calm
AO2 T00150005
METAR K06C 040435Z AUTO 00000KT 5SM OVC007 02/01 A3022 RMK AO2 T00150005
+ Add Your Business

4H1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

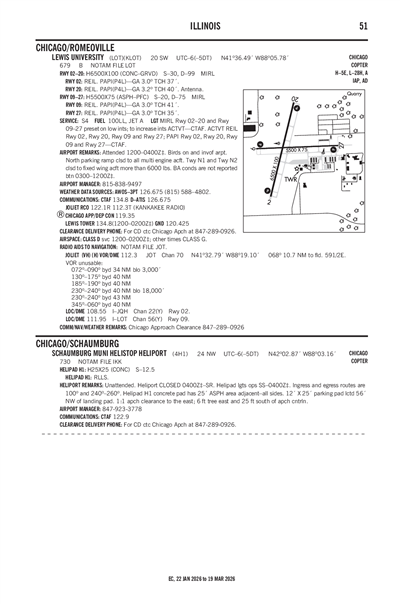

FAA A/FD Pages

Terminal Area Forecast

KORD (8nm)
Tue, 3/3 8:56 PM CST
Tue, 3/3 9:00 PM CST - Thu, 3/5 12:00 AM CST
IFR
Temporary 9:00 PM CST - 12:00 AM CST
Broken 900'
N/A
Calm
MVFR
9:00 PM CST - 12:00 AM CST
Mist
Overcast 1,000'
Scattered 900'
6sm
050° 5kts
IFR
12:00 AM CST - 10:00 AM CST
Mist
Overcast 800'
Scattered 400'
5sm
040° 5kts
IFR
Temporary 4:00 AM CST - 8:00 AM CST
Mist
Broken 600'
Scattered 300'
2sm
Calm
MVFR
10:00 AM CST - 12:00 PM CST
Mist
Broken 2,000'
Scattered 600'
6sm
090° 10kts
MVFR
12:00 PM CST - 4:00 PM CST
Overcast 1,500'
Scattered 1,000'
6sm
090° 9kts
MVFR
4:00 PM CST - 9:00 PM CST
Light Showers and Rain and Mist
Overcast 1,000'
5sm
060° 9kts
IFR
9:00 PM CST - 12:00 AM CST
Light Drizzle and Mist
Overcast 500'
Scattered 300'
3sm
040° 6kts
TAF KORD 040256Z 0403/0506 05005KT 6SM BR SCT009 OVC010
   TEMPO 0403/0406 BKN009
   FM040600 04005KT 5SM BR SCT004 OVC008
   TEMPO 0410/0414 2SM BR SCT003 BKN006
   FM041600 09010KT 6SM BR SCT006 BKN020
   FM041800 09009KT P6SM SCT010 OVC015
   FM042200 06009KT 5SM -SHRA BR OVC010
   FM050300 04006KT 3SM -DZ BR SCT003 OVC005
4H1
EffectiveExpiresCategoryNOTAM
Domestic
12/30/25
2336Z
3/30/26
0500Z
!IKK 12/300 4H1 OBST TOWER LGT (ASR 1223365) 420020.00N0880249.30W (2.6NM S 4H1) 873.0FT (132.9FT AGL) U/S 2512302336-2603300500
No
UNATNDD
VILLAGE OF SCHAUMBURG
101 SCHAUMBURG CT
SCHAUMBURG, IL 60193
Phone: 847-895-0007
ERIC TRYDEL
101 SCHAUMBURG COURT
SCHAUMBURG, IL 60193
Phone: 847-923-3778
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
--
SS-2200
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway H1

25 ft. x 25 ft.
CONC
Good
NONE


12,000lbs
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 42° 02' 52"N N/A
Longitude 88° 03' 10"W N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights RLLS
Centerline Lights
Runway End Identifier Lights
A110-1INGRESS/EGRESS ROUTES ARE 100 DEGS & 240-260 DEGS.
A110-2HELIPORT CLSD 2200-SR.
A110-3(E111-1) NO NGT OPS UNLESS WIND INDICATOR LGTD & BCN INSTALLED; UNAUTHORIZED PERSONS SEGREGATED FM ACCESS DURG FLT OPS BY NON-OBSTG SAFETY BARRIER.
A110-4FOR CD CTC CHICAGO APCH AT 847-289-0926.
A110-51:1 APCH CLEARANCE TO THE EAST; 6 FT TREE EAST & 25 FT SOUTH OF APCH CNTRLN.
A31-H1CONC PAD HAS 25 FT ASPH AREA ADJACENT - ALL SIDES. 12 FT X 25 FT PARKING PAD LOCATED 56 FT NW OF LANDING PAD.
A52-H1H1 HAS 25 FT BLDGS 400 FT & 500 FT NORTH; 25 FT BLDGS 800 FT & 900 FT NORTHWEST; 25 FT BLDG 800 FT & 1000 FT SOUTHWEST; 65 FT BLDG 1000 FT SOUTHEAST; 63 FT BLDG 550 FT WESTSOUTHWEST; 73 FT BLDG 585 FT W & 42 FT BLDG 378 FT EAST; 57 FT BLDG 316 FT SOUTH.
A81-APTSS-2200
E111PRVDD ALL APCH/DEPOPNS FM 080-100 DEGS & FM 240-260 DEGS; TKOF/LDG AREA APROPLY MKD; NON-OBSTNG WIND WIND INDICATOR MAINTD; AVOID OVERFLIGHT OF RESIDENTIAL AREA 2000 FT W.
SCHAUMBURG MUNI HELISTOP (IATA: 4H1) is a public heliport located in CHICAGO/SCHAUMBURG, IL, US.
