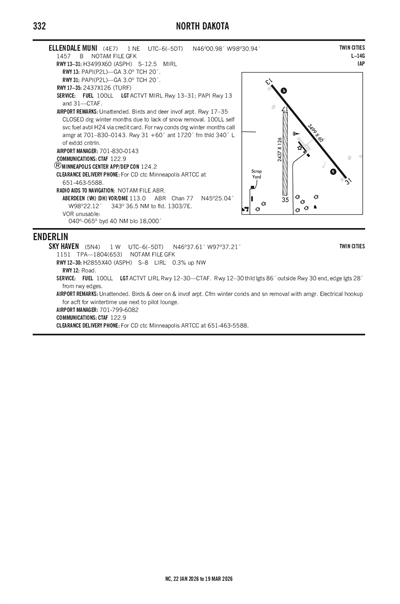

ELLENDALE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4E7
Local 4E7
ELLENDALE MUNI
PublicPUB

1 miles NE of ELLENDALE, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 00' 59"N 98° 30' 56"W
Elevation
1457' MSL
Pattern Alt
2457' MSL
Mag Variation
4°E
Declination
7°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K2D5 (20nm) VFR
3:55 AM CST
No Clouds
N/A
32°F
32°F
30.03"Hg
200° 12kts
AO2
METAR K2D5 040955Z AUTO 20012KT 00/00 A3003 RMK AO2
+ Add Your Business

4E7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 13/31; PAPI RWY 13 & 31 - CTAF.

Center

MINNEAPOLIS CENTER 124.2
HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 124.2/270.3 (WOODWORTH RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KABR (35nm)
Wed, 3/4 4:01 AM CST
Wed, 3/4 4:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
4:00 AM CST - 10:00 AM CST
Mist
Broken 25,000'
5sm
200° 6kts
VFR
10:00 AM CST - 5:00 PM CST
Scattered 25,000'
6sm
190° 13kts
Gusts 20kts
VFR
5:00 PM CST - 10:00 PM CST
Few 25,000'
6sm
160° 9kts
VFR
10:00 PM CST - 12:00 AM CST
Broken 17,000'
6sm
130° 9kts
TAF KABR 041001Z 0410/0506 20006KT 5SM BR BKN250
   FM041600 19013G20KT P6SM SCT250
   FM042300 16009KT P6SM FEW250
   FM050400 13009KT P6SM BKN170
4E7
EffectiveExpiresCategoryNOTAM
Domestic
2/8/26
1202Z
!GFK 02/158 4E7 OBST TOWER LGT (ASR 1299185) 460924.20N0983743.30W (9.7NM NNW 4E7) 1755.6FT (248.7FT AGL) U/S 2602081202-2603101700EST
6/1/25
1742Z
6/5/26
2359Z
!GFK 06/007 4E7 OBST TOWER LGT (ASN 2007-AGL-1929-OE) 455853N0985346W (16.0NM W 4E7) 2360FT (263FT AGL) U/S 2506011742-2606052359
FDC
2/12/26
1440Z
!FDC 6/3096 4E7 IAP ELLENDALE MUNI, ELLENDALE, ND.
RNAV (GPS) RWY 31, ORIG-A...
CIRCLING CAT B MDA 2120/HAA 663.
2602121440-2802121440EST
No
UNATNDD
ELLENDALE ARPT AUTH
BOX 82
ELLENDALE, ND 58436
Phone: 701-830-0143
KYLE GLYNN
8974 HWY 281
ELLENDALE, ND 58436
Phone: 701-830-0143
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT MIRL RWY 13/31; PAPI RWY 13 & 31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 13/31

3499 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 141°321°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 46° 01' 15"N 46° 00' 48"N
Longitude 98° 31' 08"W 98° 30' 37"W
Elevation 1,456' 1,456'
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2437 ft. x 126 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 01' 07"N 46° 00' 43"N
Longitude 98° 31' 02"W 98° 31' 02"W
Elevation 1,454' 1,454'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11KYLE GLYNN, CHAIRMAN ARPT AUTH.
A110-5FOR RWY CONDS DRG WINTER MONTHS CALL AMGR AT 701-830-0143.
A110-6BIRDS & DEER INVOF ARPT.
A110-7FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A16ADDL CONTACT JEFF ULMER 701-866-6434.
A30-17/35CLSD DRG WINTER MONTHS DUE TO LACK OF SNOW REMOVAL.
A30A-31+60 FT ANT 1720 FT FM THLD 340 FT L OF EXTDD CNTRLN.
A70-100LLSELF SVC AVBL H24 VIA CREDIT CARD.
A76-AGRIFOR AGRI SVCS CALL 701-351-5066.
A81-APTACTVT MIRL RWY 13/31; PAPI RWY 13 & 31 - CTAF.
E111PRVDD FENCES DO NO EXCEED OBSTN STDS OF PART 77.
ELLENDALE MUNI (IATA: 4E7) is a public airport located in ELLENDALE, ND, US.
