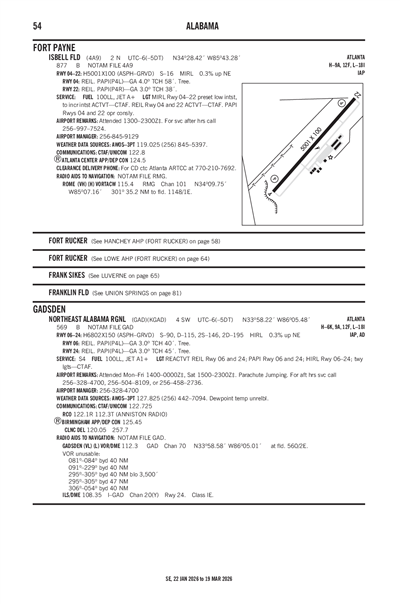

ISBELL FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4A9
Local 4A9
ISBELL FLD
PublicPUB

2 miles N of FORT PAYNE, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 28' 25"N 85° 43' 17"W
Elevation
877' MSL
Pattern Alt
1877' MSL
Mag Variation
5°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
K4A9 VFR
2:55 AM CST
Scattered 1,900'
10sm
56°F
52°F
30.25"Hg
140° 7kts
AO2 T01310111
METAR K4A9 040855Z AUTO 14007KT 10SM SCT019 13/11 A3025 RMK AO2 T01310111
+ Add Your Business

4A9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.025
(256) 845-5397

Common

CTAF 122.8
MIRL RWY 4/22 PRESET LOW INTST, TO INCR INTST ACTVT - CTAF. REIL RWY 04 & 22 ACTVT - CTAF. PAPI RWYS 04 & 22 OPR CONSLY.
UNICOM 122.8

Center

ATLANTA CENTER 124.5
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 124.5/270.325 (GADSDEN RCAG).

Terminal Area Forecast

KCHA (42nm)
Wed, 3/4 2:32 AM EST
Wed, 3/4 3:00 AM EST - Thu, 3/5 1:00 AM EST
MVFR
3:00 AM EST - 12:00 PM EST
Broken 1,500'
6sm
180° 4kts
VFR
12:00 PM EST - 1:00 AM EST
Scattered 3,500'
6sm
180° 5kts
TAF KCHA 040732Z 0408/0506 18004KT P6SM BKN015
   FM041700 18005KT P6SM SCT035
4A9
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1940Z
7/1/26
1940Z
!4A9 03/002 4A9 OBST TOWER LGT (ASR 1225282) 343414.60N0854039.50W (6.2NM NNE 4A9) 1678.1FT (259.8FT AGL) U/S 2603031940-2607011940
3/3/26
1219Z
4/17/26
1219Z
!4A9 03/001 4A9 OBST TOWER LGT (ASN 2019-ASO-29321-OE) 342751N0854708W (3.2NM W 4A9) 1526FT (223FT AGL) U/S 2603031219-2604171219
2/21/26
0740Z
4/7/26
0740Z
!4A9 02/007 4A9 OBST TOWER LGT (ASN 2018-ASO-21033-OE) 344037N0854125W (12.3NM NE 4A9) 1897FT (315FT AGL) U/S 2602210740-2604070740
2/19/26
1325Z
3/6/26
1225Z
!4A9 02/005 4A9 OBST TOWER LGT (ASR 1254077) 341536.60N0855215.50W (14.9NM SSW 4A9) 1208.0FT (305.1FT AGL) U/S 2602191325-2603061225
2/13/26
0245Z
3/15/26
2300Z
!4A9 02/001 4A9 OBST TOWER LGT (ASR 1322267) 343139.90N0853443.81W (7.8NM ENE 4A9) 1831FT (265FT AGL) U/S 2602130245-2603152300
1/12/26
1551Z
5/30/26
2359Z
Runway!4A9 01/005 4A9 RWY 22 PAPI U/S 2601121551-2605302359
FDC
9/16/25
1438Z
!FDC 5/4718 4A9 ODP ISBELL FLD, FORT PAYNE, AL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 04, 400-2 1/4 WITH MINIMUM CLIMB OF 207 FT/NM TO 2100, OR STANDARD WITH MINIMUM CLIMB OF 419 FT/NM TO 1400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2509161438-2604281438EST
No
0700-1700
FOR SVC AFT HRS CALL 256-997-7524.
CITY OF FORT PAYNE
100 ALABAMA AVE NW
FORT PAYNE, AL 35967
Phone: 256-845-1524
BARRY STONE
2200 TERMINAL DRIVE NW
FORT PAYNE, AL 35968
Phone: 256-845-9129
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
4A9
--
MIRL RWY 4/22 PRESET LOW INTST, TO INCR INTST ACTVT - CTAF. REIL RWY 04 & 22 ACTVT - CTAF. PAPI RWYS 04 & 22 OPR CONSLY.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

5001 ft. x 100 ft.
ASPH
Excellent
GRVD
MED

16,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 40°220°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 28' 06"N 34° 28' 44"N
Longitude 85° 43' 36"W 85° 42' 58"W
Elevation 856' 873'
Threshold Crossing Height 58 ft. AGL 38 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A17-M1FOR SVC AFT HRS CALL 256-997-7524.
A81-APTMIRL RWY 4/22 PRESET LOW INTST, TO INCR INTST ACTVT - CTAF. REIL RWY 04 & 22 ACTVT - CTAF. PAPI RWYS 04 & 22 OPR CONSLY.
E111PRIOR TO FAA ACT.
ISBELL FLD (IATA: 4A9) is a public airport located in FORT PAYNE, AL, US.
