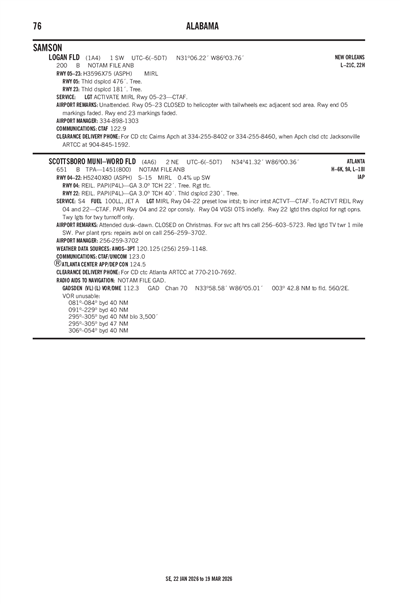

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

4A6
SCOTTSBORO MUNI-WORD FLD
PublicPUB

2 miles NE of SCOTTSBORO, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 41' 19"N 86° 00' 21"W
650' MSL
1450' MSL
03W
JET A, 100LL
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
10/31/24-11/28/24
K4A6 VFR
5:55 AM CST
Clear
10sm
32°F
32°F
30.16"Hg
020° 3kts
AO2
K4A6 091155Z AUTO 02003KT 10SM CLR A3016 RMK AO2
Add Your Business

4A6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
256-259-1148
 120.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHUA (34nm)
Fri, 11/8 2:00 PM CST
Fri, 11/8 2:00 PM CST - Sat, 11/9 8:00 PM CST
MVFR
2:00 PM CST - 7:00 PM CST
Broken 1,500'
6sm
30.09"Hg
020° 12kts
VFR
Becoming 7:00 PM CST - 8:00 PM CST
Scattered 1,300'
6sm
30.12"Hg
020° 6kts
VFR
Becoming 8:00 PM CST - 3:00 AM CST
Few 500'
6sm
30.12"Hg
VRB° 6kts
IFR
Becoming 3:00 AM CST - 10:00 AM CST
Light Showers and Rain
Broken 500'
4.97sm
30.12"Hg
VRB° 6kts
MVFR
Becoming 10:00 AM CST - 8:00 PM CST
Light Showers and Rain
Overcast 1,300'
4.97sm
30.06"Hg
VRB° 6kts
TAF KHUA 082000Z 0820/1002 02012KT 9999 BKN015 QNH3010INS
   BECMG 0901/0902 02006KT 9999 SCT013 QNH3012INS
   BECMG 0902/0903 VRB06KT 9999 FEW005 QNH3013INS
   BECMG 0909/0910 VRB06KT 8000 -SHRA BKN005 QNH3011INS
   BECMG 0916/0917 VRB06KT 8000 -SHRA OVC013 QNH3007INS TX22/0920Z TN15/0910Z LAST NO AMDS AFT 0900 NEXT 1112
4A6
Domestic
11/4/240530Z !ANB 11/072 4A6 OBST TOWER LGT (ASR 1221984) 343940.80N0860051.40W (1.7NM SSW 4A6) 853.0FT (230.0FT AGL) U/S 2411040530-2411190430
10/28/240424Z !ANB 10/619 4A6 OBST TOWER LGT (ASR 1218585) 343720.80N0860948.10W (8.8NM WSW 4A6) 929.8FT (319.9FT AGL) U/S 2410280424-2411120324
10/16/241242Z !ANB 10/359 4A6 OBST TOWER LGT (ASN UNKNOWN) 343428N0860322W (7.7NM SSW 4A6) 915FT (282FT AGL) U/S 2410161242-2504192359
9/30/241215Z !ANB 09/929 4A6 OBST TOWER LGT (ASN 2020-ASO-18089-OE) 343204N0860249W (9.5NM SSW 4A6) 1485FT (265FT AGL) U/S 2409301215-2503270001
No
0800-1700
CLOSED ON CHRISTMAS.
FOR SVC AFT HRS CALL 256-603-5723.
CITY OF SCOTTSBORO
316 BROAD ST
SCOTTSBORO, AL 35768
Phone: 256-574-3100
COREY PORTER
86 AVIATION CIRCLE
SCOTTSBORO, AL 35768
Phone: 256-259-3702
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
MIRL RWY 04/22 PRESET LOW INTST; TO INCR INTST ACTVT- CTAF. TO ACTVT REIL RWY 04 & 22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 04/22

5240 ft. x 80 ft.
ASPH
Good
NONE
MED

15,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 37°217°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 40' 59"N 34° 41' 40"N
Longitude 86° 00' 40"W 86° 00' 02"W
Elevation 650' 630'
Threshold Crossing Height 22 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RED LGTD TV TWR 1 MILE SW.
A110-5TWY LGTS FOR TWY TURNOFF ONLY.
A110-6FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
SCOTTSBORO MUNI-WORD FLD (IATA: 4A6) is a public airport located in SCOTTSBORO, AL.
