iFlightPlanner



...

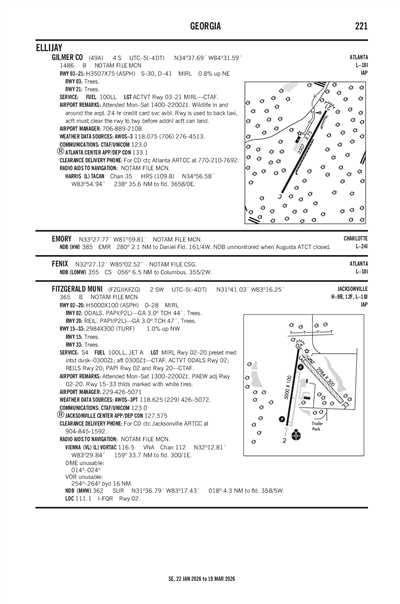

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

49A
GILMER COUNTY
PublicPUB

4 miles S of ELLIJAY, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 37' 42"N 84° 31' 36"W
1486' MSL
2486' MSL
05W
100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

49A FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
706 276-4513
 118.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
49A
Domestic
12/23/241600Z !MCN 12/639 49A OBST TOWER LGT (ASR 1307115) 343432.92N0843112.04W (3.2NM S 49A) 1725FT (270FT AGL) U/S 2412231600-2501242300
12/17/241431Z !MCN 12/435 49A OBST TOWER LGT (ASR 1307115) 343432.92N0843112.04W (3.2NM S 49A) 1725FT (270FT AGL) U/S 2412171431-2512172300
12/17/241428Z !MCN 12/434 49A OBST TOWER LGT (ASR 1019717) 344153.10N0842503.00W (6.9NM NE 49A) 2902.9FT (311.0FT AGL) U/S 2412171428-2512172300
FDC
10/2/241520Z !FDC 4/3760 49A IAP GILMER COUNTY, ELLIJAY, GA.
RNAV (GPS) RWY 3, ORIG...
LNAV/VNAV DA 1922/HAT 441 ALL CATS. LNAV MDA 1900/HAT 419 ALL CATS, CAT C/D VIS 1.
2410021520-2610021520EST
5/27/242000Z !FDC 4/9473 49A SPECIAL IAP GILMER COUNTY, ELLIJAY, GA.
COPTER RNAV (GPS) 030, ORIGWEKUG ONE (RNAV)PROCEDURE NOT AVBL
2405272000-2501252359
2/28/232030Z !FDC 3/0914 49A IAP GILMER COUNTY, ELLIJAY, GA.
RNAV (GPS) RWY 21, ORIG...
DISREGARD DESCENT ANGLE 3.30/TCH 45. PROFILE NOTE: VISUAL SEGMENT OBSTACLES..
2302282030-2502282030EST
No
MON-SAT 0900 - 1700
GILMER COUNTY
1 BROAD STREET, SUITE 106
ELLIJAY, GA 30540
Phone: 706-635-4361
JUSTIN HEITMAN
455 SUNLIGHT ROAD
ELLIJAY, GA 30540
Phone: 706-889-2255
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT RWY 03/21 MIRL - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 03/21

3507 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
41,000lbs
--
--
  Runway 03 Runway 21
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 37' 26"N 34° 37' 57"N
Longitude 84° 31' 46"W 84° 31' 26"W
Elevation 1,458' 1,486'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-2RWY IS USED TO BACK TAXI, ACFT MUST CLEAR THE RWY TO TWY BEFORE ADDNL ACFT CAN LAND.
A110-3WILDLIFE IN AND AROUND THE ARPT.
GILMER COUNTY (IATA: 49A) is a public airport located in ELLIJAY, GA.
