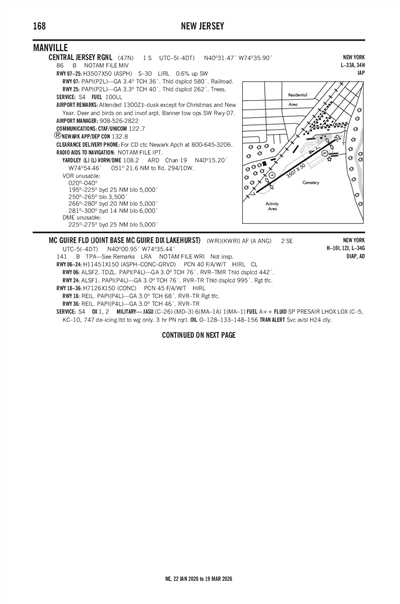

CENTRAL JERSEY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

47N
Local 47N
CENTRAL JERSEY RGNL
PublicPUB

1 miles S of MANVILLE, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 31' 28"N 74° 35' 54"W
Elevation
86' MSL
Pattern Alt
1086' MSL
Mag Variation
12°W
Declination
13°W
Fuel
100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KSMQ (7nm) IFR
10:53 PM EST
Light Rain and Mist
Overcast 500'
4sm
34°F
32°F
30.20"Hg
280° 3kts
AO2 RAE19B53 SLP229 P0000 T00110000
METAR KSMQ 040353Z AUTO 28003KT 4SM -RA BR OVC005 01/00 A3020 RMK AO2 RAE19B53 SLP229 P0000 T00110000
+ Add Your Business

47N FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

Arrival

JAIKE STAR 132.8

Approach

NEWARK APPROACH 132.8

Departure

NEWARK DEPARTURE 132.8

FAA A/FD Pages

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KTTN (18nm)
Tue, 3/3 9:42 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
10:00 PM EST - 11:00 PM EST
Light Rain and Mist
Overcast 300'
1sm
VRB° 3kts
LIFR
11:00 PM EST - 4:00 AM EST
Light Drizzle and Mist
Overcast 300'
2sm
240° 5kts
LIFR
4:00 AM EST - 11:00 AM EST
Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
11:00 AM EST - 2:00 PM EST
Mist
Broken 1,500'
6sm
040° 4kts
VFR
2:00 PM EST - 7:00 PM EST
Broken 4,000'
6sm
080° 3kts
TAF KTTN 040242Z 0403/0424 VRB03KT 1SM -RA BR OVC003
   FM040400 24005KT 2SM -DZ BR OVC003
   FM040900 VRB03KT 2SM BR OVC003
   FM041600 04004KT 6SM BR BKN015
   FM041900 08003KT P6SM BKN040
47N
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
2058Z
2/25/26
2100Z
Runway!MIV 02/344 47N RWY 07/25 CLSD 2602232058-2602252100
12/15/25
1428Z
Runway!MIV 12/173 47N RWY 25 PAPI UNUSABLE 2512151428-2606152111EST
12/15/25
1428Z
Runway!MIV 12/172 47N RWY 07 PAPI UNUSABLE 2512151428-2606152111EST
FDC
2/23/26
1507Z
!FDC 6/8465 47N SID CENTRAL JERSEY RGNL, MANVILLE, NJ.
CENTRAL ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ARD VOR OUT OF SERVICE. 2602231507-2606101507EST
No
0800-DUSK
EXCEPT FOR CHRISTMAS & NEW YEAR.
CENTRAL JERSEY AIRPORT SERVICES INC
PO BOX 358
MANVILLE, NJ 08835
Phone: 908-526-2822
TERRI AND JOSEPH HORNER
PO BOX 358
MANVILLE, NJ 08835
Phone: 908-526-2822
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Glider Service
Pilot Instruction
Aircraft Rental

Runway 07/25

3507 ft. x 50 ft.
ASPH
Excellent
NONE
LOW

30,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 56°236°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 40° 31' 18"N 40° 31' 38"N
Longitude 74° 36' 13"W 74° 35' 35"W
Elevation 85' 64'
Threshold Crossing Height 36 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.4° 3.3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC NEWARK APCH AT 800-645-3206.
A110-3BANNER TOW OPS SW RWY 07.
A110-4DEER & BIRDS ON & INVOF ARPT.
A17-D1EXCEPT FOR CHRISTMAS & NEW YEAR.
A58-07FENCE 10 FT ADJACENT TO RR TRACK L OF RWY.
A58-25+42 FT TREE 128 FT FROM RWY END 220 FT R.
E111EXISTED PRIOR TO 1959.
CENTRAL JERSEY RGNL (IATA: 47N) is a public airport located in MANVILLE, NJ, US.
