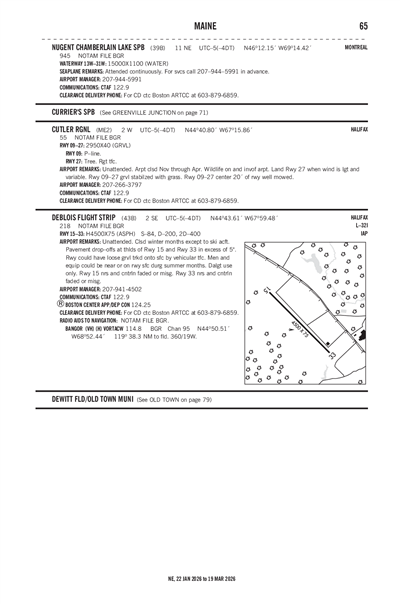

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

43B
DEBLOIS FLIGHT STRIP
PublicPUB

2 miles SE of DEBLOIS, ME
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 43' 37"N 67° 59' 29"W
218' MSL
1218' MSL
16W
None Listed
BANGOR (BGR)
HALIFAX
BOSTON (ZBW)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

43B FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
43B
Domestic
1/8/250542Z !BGR 01/049 43B OBST TOWER LGT (ASR 1268665) 443651.40N0674635.60W (11.2NM SE 43B) 495.7FT (361.9FT AGL) U/S 2501080542-2501230442
FDC
6/14/231611Z !FDC 3/0526 43B IAP DEBLOIS FLIGHT STRIP, DEBLOIS, ME.
RNAV (GPS)-A, ORIG-A...
CIRCLING CAT A MDA 900/HAA 682.
(PERM WINDMILL, 2019-WTE-8725-OE).
2306141611-2506301611EST
6/14/231611Z !FDC 3/0525 43B ODP DEBLOIS FLIGHT STRIP, DEBLOIS, ME.
DEBLOIS ONE DEPARTURE ...
DEPARTURE ROUTE DESCRIPTION: TAKEOFF RWY 15, CLIMB HEADING 151 TO 1000 BEFORE TURNING LEFT.
(PERM WINDMILL, 2021-WTE-8-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2306141611-2506301611EST
6/14/231611Z !FDC 3/0524 43B ODP DEBLOIS FLIGHT STRIP, DEBLOIS, ME.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
DEPARTURE PROCEDURE: RWY 15, CLIMB HEADING 151 TO 1000 BEFORE TURNING LEFT.
(PERM WINDMILL, 2021-WTE-8-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2306141611-2506301611EST
No
UNATNDD
STATE OF MAINE DOT
16 STATE HOUSE STATION
AUGUSTA, ME 04330
Phone: 207-624-3578
JOE LACERDA
MAINE DEPT OF TRANSPORTATION, 219 HOGAN RD
BANGOR, ME 04401
Phone: 207-941-4502
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 15/33

4500 ft. x 75 ft.
ASPH
Good
NONE


84,000lbs
200,000lbs
400,000lbs
--
  Runway 15 Runway 33
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 44° 43' 52"N 44° 43' 21"N
Longitude 67° 59' 51"W 67° 59' 07"W
Elevation 218' 208'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CLSD WINTER MONTHS EXCEPT TO SKI ACFT.
A110-2DAYLIGHT USE ONLY.
A110-3RWY COULD HAVE LOOSE GRVL TRKD ONTO SFC BY VEHICULAR TFC. MEN & EQUIP COULD BE NEAR OR ON RWY SFC DURG SUMMER MONTHS.
A110-4PAVEMENT DROP-OFFS AT THLDS OF RWY 15 & RWY 33 IN EXCESS OF 5 IN.
A110-5FOR CD CTC BOSTON ARTCC AT 603-879-6859.
DEBLOIS FLIGHT STRIP (IATA: 43B) is a public airport located in DEBLOIS, ME.
