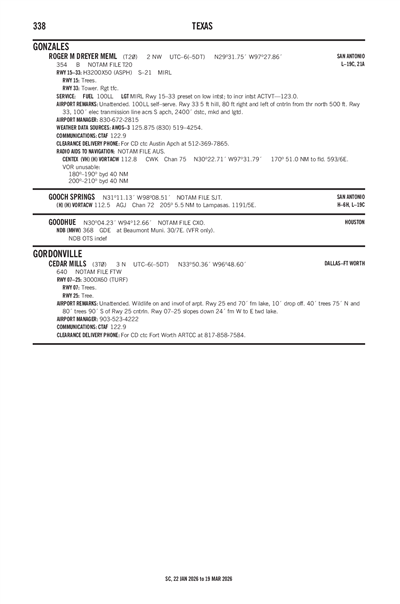

CEDAR MILLS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3T0
Local 3T0
CEDAR MILLS
PublicPUB

3 miles N of GORDONVILLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 50' 22"N 96° 48' 36"W
Elevation
640' MSL
Pattern Alt
1640' MSL
Mag Variation
3°E
Declination
6°E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KGYI (10nm) VFR
1:55 AM CST
Scattered 17,000'
Few 12,000'
10sm
70°F
62°F
30.01"Hg
170° 13kts
Gusts 17kts
AO2 T02110169 $
METAR KGYI 040755Z AUTO 17013G17KT 10SM FEW120 SCT170 21/17 A3001 RMK AO2 T02110169 $
+ Add Your Business

3T0 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KDUA (22nm)
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 5:00 AM CST
Broken 12,000'
6sm
170° 10kts
MVFR
5:00 AM CST - 3:00 PM CST
Broken 5,000'
Broken 1,500'
6sm
190° 13kts
Gusts 20kts
MVFR
3:00 PM CST - 9:00 PM CST
Light Thunderstorm and Rain
Overcast 1,000'
6sm
Calm
VFR
3:00 PM CST - 12:00 AM CST
Broken 4,000'
6sm
210° 5kts
TAF KDUA 040522Z 0406/0506 17010KT P6SM BKN120
   FM041100 19013G20KT P6SM BKN015 BKN050
   FM042100 21005KT P6SM BKN040
   PROB30 0421/0503 6SM -TSRA OVC010CB
3T0
EffectiveExpiresCategoryNOTAM
Domestic
2/14/26
1324Z
5/16/26
0500Z
!FTW 02/366 3T0 OBST TOWER LGT (ASR 1227835) 335309.50N0964654.30W (3.1NM NNE 3T0) 988.8FT (259.8FT AGL) U/S 2602141324-2605160500
No
UNATNDD
U.S. ARMY CORPS OF ENGINEERS
351 CORP RD
DENISON, TX 75020
Phone: 903-465-4990
KRIS WORSTELL
CEDAR MILLS MARINA 500 HARBOUR VIEW
GORDONVILLE, TX 76245
Phone: 903-523-4222
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 07/25

3000 ft. x 60 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 85°265°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 50' 21"N 33° 50' 24"N
Longitude 96° 48' 54"W 96° 48' 19"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-140 FT TREES 75 FT N & 80 FT TREES 90 FT S OF RWY 25 CNTRLN.
A110-2FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-3WILDLIFE ON AND INVOF ARPT.
A110-4RWY 25 END 70 FT FM LAKE, 10 FT DROP OFF.
A33-07/25_SURFRWY SLOPES DOWN 24 FT FM W TO E TWD LAKE.
CEDAR MILLS (IATA: 3T0) is a public airport located in GORDONVILLE, TX, US.
