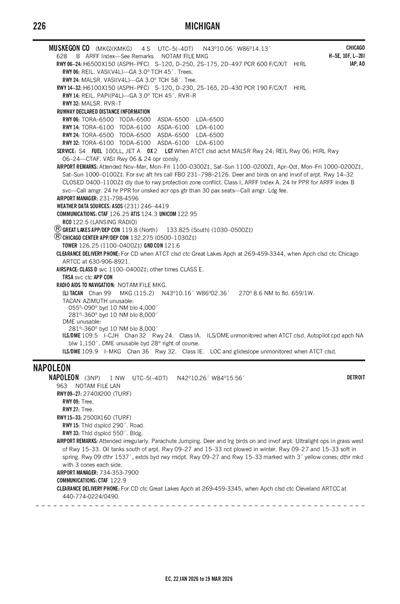

NAPOLEON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3NP
Local 3NP
NAPOLEON
PublicPUB

1 miles NW of NAPOLEON, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 10' 16"N 84° 15' 34"W
Elevation
963' MSL
Pattern Alt
1963' MSL
Mag Variation
7°W
Declination
5°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KJXN (10nm) MVFR
8:56 PM EST
Overcast 1,200'
10sm
41°F
34°F
30.09"Hg
100° 8kts
AO2 SLP197 T00500011
METAR KJXN 050156Z 10008KT 10SM OVC012 05/01 A3009 RMK AO2 SLP197 T00500011
+ Add Your Business

3NP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KJXN (10nm)
Wed, 3/4 6:40 PM EST
Wed, 3/4 7:00 PM EST - Thu, 3/5 7:00 PM EST
MVFR
7:00 PM EST - 9:00 PM EST
Broken 2,200'
6sm
VRB° 3kts
MVFR
9:00 PM EST - 11:00 PM EST
Mist
Broken 1,800'
3sm
VRB° 3kts
IFR
11:00 PM EST - 4:00 AM EST
Light Showers and Rain and Mist
Broken 700'
3sm
Calm
LIFR
4:00 AM EST - 11:00 AM EST
Light Rain and Mist
Overcast 300'
1sm
VRB° 3kts
LIFR
11:00 AM EST - 5:00 PM EST
Rain and Fog
Overcast 300'
0.5sm
090° 7kts
LIFR
5:00 PM EST - 7:00 PM EST
Light Rain
Broken 400'
4sm
070° 6kts
TAF KJXN 042340Z 0500/0524 VRB03KT P6SM BKN022
   FM050200 VRB03KT 3SM BR BKN018
   FM050400 00000KT 3SM -SHRA BR BKN007
   FM050900 VRB03KT 1SM -RA BR OVC003
   FM051600 09007KT 1/2SM RA FG OVC003
   FM052200 07006KT 4SM -RA BKN004
3NP
No NOTAM Available
No
UNATNDD
BSC REALTY, LLC
211 N UNION ST
TECUMSEH, MI 49286
Phone: 517-499-8421
SAMUEL OWEN KELLY
211 N UNION ST
TECUMSEH, MI 49286
Phone: 734-353-7900
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Parachute Jump Activity

Runway 09/27

2740 ft. x 200 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left
Markings
Markings Condition
Latitude 42° 10' 16"N 42° 10' 16"N
Longitude 84° 15' 47"W 84° 15' 11"W
Elevation 963' 963'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

2500 ft. x 160 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 10' 26"N 42° 10' 04"N
Longitude 84° 15' 46"W 84° 15' 31"W
Elevation 963' 963'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1OIL TANKS SOUTH OF ARPT.
A110-2ULTRALIGHT OPS IN GRASS WEST OF RWY 15/33.
A110-4DEER & LRG BIRDS ON & INVOF ARPT.
A110-6FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A110-7RWY 09 DTHR 1537 FT, EXTDS BYD RWY MIDPT.
A30-09/27NOT PLOWED IN WINTER.
A30-15/33NOT PLOWED IN WINTER.
A33-09/27_CONDSOFT IN SPRING.
A33-15/33_CONDSOFT IN SPRING.
A42-09_MARK3 FT YELLOW CONES; DTHR MKD WITH 3 CONES EACH SIDE.
A42-15_MARK3 FT YELLOW CONES; DTHR MKD WITH 3 CONES EACH SIDE.
A42-27_MARK3 FT YELLOW CONES.
A42-33_MARK3 FT YELLOW CONES; DTHR MKD WITH 3 CONES EACH SIDE.
A52-33ALSO +11 FT PARKED VEHICLES & +4 FT FENCE AT THR.
A57-09APCH RATIO 17:1 TO DTHR OVR 111 FT TREE, 1971 FT DIST, 113 FT R.
A57-15APCH RATIO 4:1 TO DTHR OVR 41 FT TREE, 183 FT DIST, 134 FT R.
A57-33APCH RATIO 19:1 TO DTHR OVR 83 FT TREE, 1586 FT DIST, 207 FT L.
E111ESTABD BFR 1959.
NAPOLEON (IATA: 3NP) is a public airport located in NAPOLEON, MI, US.
