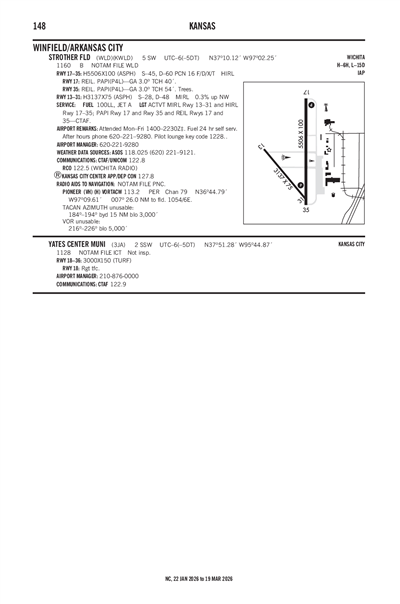

YATES CENTER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3JA
Local 3JA
YATES CENTER MUNI
PublicPUB

2 miles SSW of YATES CENTER, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 51' 17"N 95° 44' 52"W
Elevation
1128' MSL
Pattern Alt
2128' MSL
Mag Variation
2°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KCNU (17nm) IFR
8:52 PM CST
Overcast 700'
10sm
48°F
45°F
30.05"Hg
010° 8kts
AO2 SLP174 T00890072 51019
METAR KCNU 040252Z AUTO 01008KT 10SM OVC007 09/07 A3005 RMK AO2 SLP174 T00890072 51019
+ Add Your Business

3JA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCNU (17nm)
Tue, 3/3 5:38 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 8:00 PM CST
Overcast 6,000'
Scattered 4,000'
6sm
020° 9kts
MVFR
8:00 PM CST - 2:00 AM CST
Mist
Overcast 1,500'
5sm
010° 8kts
IFR
2:00 AM CST - 6:00 AM CST
Mist
Overcast 600'
4sm
360° 6kts
IFR
6:00 AM CST - 1:00 PM CST
Mist and Thunderstorm in vicinity
Overcast 600'
4sm
360° 5kts
IFR
1:00 PM CST - 6:00 PM CST
Overcast 700'
6sm
340° 5kts
TAF KCNU 032338Z 0400/0424 02009KT P6SM SCT040 OVC060
   FM040200 01008KT 5SM BR OVC015
   FM040800 36006KT 4SM BR OVC006
   FM041200 36005KT 4SM BR VCTS OVC006CB
   FM041900 34005KT P6SM OVC007
3JA
No NOTAM Available
No
Unknown
CITY OF YATES CENTER
117 E. RUTLEDGE
YATES CENTER, KS 66783
Phone: 210-876-0000
CITY OF YATES CENTER
117 E. RUTLEDGE
YATES CENTER, KS 66783
Phone: 210-876-0000
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
--
N/A
N/A
N/A
No
None
No
None
None
None
None
None

Runway 18/36

3000 ft. x 150 ft.

TURF
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Right
Markings
Markings Condition
Latitude 37° 51' 32"N 37° 51' 02"N
Longitude 95° 44' 52"W 95° 44' 53"W
Elevation 1,112' 1,128'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A16JATKIN@CITYOFYATESCENTER.COM
YATES CENTER MUNI (IATA: 3JA) is a public airport located in YATES CENTER, KS, US.
