iFlightPlanner



...

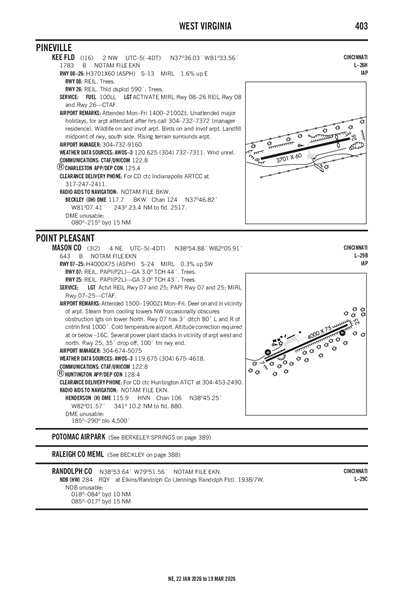

MASON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3I2
Local 3I2
MASON COUNTY
PublicPUB

4 miles NE of POINT PLEASANT, WV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 54' 53"N 82° 05' 55"W
Elevation
643' MSL
Pattern Alt
1643' MSL
Mag Variation
8°W
Declination
7°W
Fuel
None Listed
FSS
ELKINS (EKN)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KUNI (19nm) LIFR
11:55 PM EST
Rain and Mist
Overcast 100'
4sm
55°F
55°F
30.16"Hg
220° 12kts
Gusts 17kts
AO2 P0034 T01270127 401280024
METAR KUNI 040455Z AUTO 22012G17KT 4SM RA BR OVC001 13/13 A3016 RMK AO2 P0034 T01270127 401280024
+ Add Your Business

3I2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.675
(304) 675-4618

Common

CTAF 122.8
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
UNICOM 122.8

Approach

HUNTINGTON APPROACH 128.4

Departure

HUNTINGTON DEPARTURE 128.4

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHTS (39nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 3:00 AM EST
Broken 4,000'
6sm
190° 6kts
MVFR
3:00 AM EST - 7:00 AM EST
Light Rain and Mist
Overcast 3,000'
6sm
210° 4kts
MVFR
7:00 AM EST - 11:00 AM EST
Rain and Mist
Overcast 1,200'
Scattered 600'
3sm
VRB° 3kts
MVFR
11:00 AM EST - 7:00 PM EST
Rain and Mist
Overcast 1,900'
5sm
200° 5kts
TAF KHTS 032320Z 0400/0424 19006KT P6SM BKN040
   FM040800 21004KT 6SM -RA BR OVC030
   FM041200 VRB03KT 3SM RA BR SCT006 OVC012
   FM041600 20005KT 5SM RA BR OVC019
3I2
No NOTAM Available
No
MON-FRI 1000-1400
MASON CO COMISSION
COURT HOUSE 200 6TH ST,
POINT PLEASANT, WV 25550
Phone: 304-675-1110
TRENT AND PAIGE ROUSH
1518 AIRPORT RD
POINT PLEASANT, WV 25550
Phone: 304-674-5075
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

4000 ft. x 75 ft.
ASPH
Fair
NONE
MED

24,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 54' 44"N 38° 55' 01"N
Longitude 82° 06' 18"W 82° 05' 32"W
Elevation 639' 625'
Threshold Crossing Height 44 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-10COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A110-11FOR CD CTC HUNTINGTON ATCT AT 304-453-2490.
A110-12SEVERAL POWER PLANT STACKS IN VICINITY OF ARPT WEST & NORTH.
A110-13RWY 25, 35 FT DROP-OFF, 100 FT FM RWY END.
A110-4STEAM FROM COOLING TOWERS NW OCCASIONALLY OBSCURES OBSTN LGTS ON TOWER NORTH.
A110-6RWY 07 HAS 3 FT DITCH 80 FT L & R OF CNTRLN FIRST 1000 FT.
A110-96-8 FT BRUSH PARALLEL TO RWY 25, 95 FT FM CENTERLINE.
A56-07RWY 25 35 FT DROPOFF 100 FT FM THLD 0B.
A57-07CTLG OBSTN EXCEEDS A 45 DEG SLP.
A58-0730 FT TREES, 0-199 DSTC, 75 FT R.
A81-APTACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
E111NO OBJECTION.
MASON COUNTY (IATA: 3I2) is a public airport located in POINT PLEASANT, WV, US.
