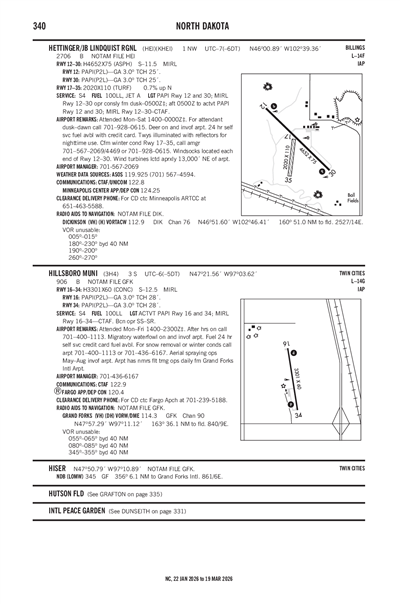

HILLSBORO MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3H4
Local 3H4
HILLSBORO MUNI
PublicPUB

3 miles S of HILLSBORO, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 21' 34"N 97° 03' 37"W
Elevation
906' MSL
Pattern Alt
1906' MSL
Mag Variation
3°E
Declination
5°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KFAR (28nm) LIFR
7:53 PM CST
Mist
Overcast 200'
0.75sm
25°F
24°F
30.15"Hg
Calm
AO2 SFC VIS 1 SLP223 I1000 T10391044 $
METAR KFAR 040153Z 00000KT 3/4SM R36/4500VP6000FT BR OVC002 M04/M04 A3015 RMK AO2 SFC VIS 1 SLP223 I1000 T10391044 $
+ Add Your Business

3H4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.

Approach

FARGO APPROACH 120.4

Departure

FARGO DEPARTURE 120.4

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFAR (28nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
6:00 PM CST - 10:00 PM CST
Mist
Overcast 300'
4sm
350° 6kts
MVFR
10:00 PM CST - 12:00 AM CST
Mist
Overcast 1,000'
3sm
160° 8kts
LIFR
12:00 AM CST - 8:00 AM CST
Freezing Fog
Obscured
0.5sm
180° 6kts
IFR
8:00 AM CST - 12:00 PM CST
Mist
Broken 700'
5sm
200° 10kts
Gusts 15kts
VFR
12:00 PM CST - 6:00 PM CST
Scattered 4,500'
6sm
200° 13kts
TAF KFAR 032320Z 0400/0424 35006KT 4SM BR OVC003
   FM040400 16008KT 3SM BR OVC010
   FM040600 18006KT 1/2SM FZFG VV002
   FM041400 20010G15KT 5SM BR BKN007
   FM041800 20013KT P6SM SCT045
3H4
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1500Z
2/26/26
2300Z
!GFK 02/428 3H4 AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF 3H4 SFC-3500FT AGL ACFT CS FLC92 2602261500-2602262300
No
MON-FRI 0800-1700
AFT HRS ON CALL 701-400-1113
HILLSBORO MUNI ARPT AUTH
BOX 242
HILLSBORO, ND 58045
Phone: 701-436-6167
DEVON COTE
BOX 242
HILLSBORO, ND 58045
Phone: 701-436-6167
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Avionics
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16/34

3301 ft. x 60 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 171°351°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 47° 21' 50"N 47° 21' 18"N
Longitude 97° 03' 41"W 97° 03' 34"W
Elevation 906' 906'
Threshold Crossing Height 28 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FOR SNOW REMOVAL OR WINTER CONDS CALL ARPT 701-400-1113 OR 701-436-6167.
A110-2AERIAL SPRAYING OPNS MAY-AUG INVOF ARPT.
A110-3FOR CD CTC FARGO APCH AT 701-239-5188.
A110-4MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-5ARPT HAS NMRS FLT TRNG OPS DAILY FM GRAND FORKS INTL ARPT.
A17-H1AFT HRS ON CALL 701-400-1113
A70-100LL24 HOUR SELF SERVICE CREDIT CARD FUEL AVBL.
A76-AGRIFOR AGRI SVC CTC 218-415-0205.
A76-SALESACFT PAINT & AVIONICS SVCS AVBL ON ARPT CALL 701-400-1113.
A81-APTACTVT PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
E111AIRSPACE CASE 74-RM-182-NRA.
HILLSBORO MUNI (IATA: 3H4) is a public airport located in HILLSBORO, ND, US.
