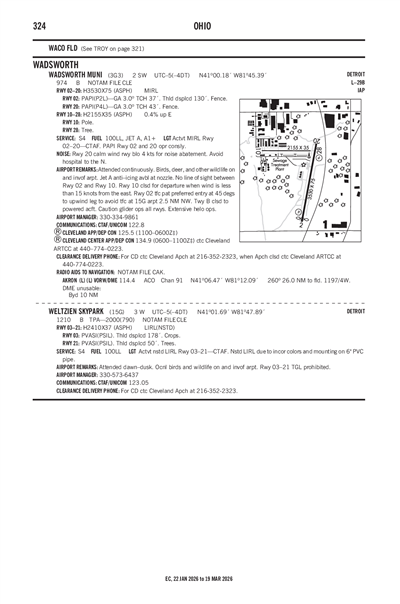

WADSWORTH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3G3
Local 3G3
WADSWORTH MUNI
PublicPUB

2 miles SW of WADSWORTH, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 00' 11"N 81° 45' 23"W
Elevation
974' MSL
Pattern Alt
1974' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A, JET A-1+, 100LL
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KBJJ (10nm) LIFR
2:56 AM EST
Mist
Overcast 200'
1sm
39°F
38°F
30.18"Hg
360° 3kts
AO2 SLP228 T00390033
METAR KBJJ 040756Z AUTO 36003KT 1SM BR OVC002 04/03 A3018 RMK AO2 SLP228 T00390033
+ Add Your Business

3G3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
UNICOM 122.8

Approach

CLEVELAND APPROACH 125.5

Departure

CLEVELAND DEPARTURE 125.5

Center

CLEVELAND CENTER 134.9
LOW, APCH/DEP SVC PRVDD BY CLEVELAND APCH (CLE) 0600-0100. APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 134.9/269.475 (MANSFIELD RCAG) 0100-0600.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCAK (15nm)
Wed, 3/4 12:21 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
1:00 AM EST - 4:00 AM EST
Mist
Overcast 300'
2sm
330° 5kts
LIFR
4:00 AM EST - 11:00 AM EST
Fog
Overcast 200'
0.25sm
030° 2kts
IFR
11:00 AM EST - 7:00 PM EST
Mist
Overcast 500'
5sm
090° 6kts
LIFR
7:00 PM EST - 12:00 AM EST
Mist
Overcast 400'
2sm
130° 4kts
IFR
12:00 AM EST - 1:00 AM EST
Light Showers and Rain and Mist
Overcast 800'
4sm
130° 4kts
TAF KCAK 040521Z 0406/0506 33005KT 2SM BR OVC003
   FM040900 03002KT 1/4SM FG OVC002
   FM041600 09006KT 5SM BR OVC005
   FM050000 13004KT 2SM BR OVC004
   FM050500 13004KT 4SM -SHRA BR OVC008
3G3
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
1455Z
Runway!CLE 01/274 3G3 RWY 20 PAPI U/S 2601061455-2607062111EST
1/6/26
1452Z
Runway!CLE 01/273 3G3 RWY 02 PAPI U/S 2601061452-2607062111EST
FDC
6/3/24
1600Z
!FDC 4/2211 3G3 ODP WADSWORTH MUNI, WADSWORTH, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF OBSTACLES NOTE: RWY 02, LIGHT POLES BEGINNING 1243 FT FROM DER, 37 FT LEFT OF CENTERLINE, UP TO 31 FT AGL/1011 FT MSL (2020-AGL-23359 AND 23361-OE). LIGHT POLES BEGINNING 1356 FT FROM DER, 55 FT LEFT OF CENTERLINE, UP TO 31 FT AGL/1013 FT MSL (2020-AGL-23360, 23364 AND 23366-OE). LIGHT POLE 1476 FT FROM DER, 54 FT LEFT OF CENTERLINE, 31 FT AGL/1014 FT MSL (2020-AGL-23363-OE). LIGHT POLE 1484 FT FROM DER, 74 FT RIGHT OF CENTERLINE, 31 FT AGL/1014 FT MSL (2020-AGL-23362-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2406031600-2606031600EST
No
ALL
CITY OF WADSWORTH ARPT COMMISSION
WADSWORTH MUNICIPAL BLDG 120 MAPLE ST
WADSWORTH, OH 44281
Phone: 330-335-1521
QUIENTON REID
840 AIRPORT DR
WADSWORTH, OH 44281
Phone: 330-334-9861
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT MIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 02/20

3530 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 11°191°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 59' 49"N 41° 00' 23"N
Longitude 81° 45' 23"W 81° 45' 14"W
Elevation 965' 974'
Threshold Crossing Height 37 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10/28

2155 ft. x 35 ft.
ASPH
Excellent
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 00' 20"N 41° 00' 20"N
Longitude 81° 45' 46"W 81° 45' 18"W
Elevation 963' 971'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10CAUTION: EXTSV HEL OPS.
A110-11RWY 02 TFC PAT PREFERRED ENTRY AT 45 DEGS TO UPWIND LEG TO AVOID TFC AT 15G ARPT 2.5 NM NW.
A110-2RWY 10 CLSD FOR DEPARTURE WHEN WIND LESS THAN 15 KTS FM THE EAST.
A110-4NO LINE OF SIGHT BTN RWY'S 02 & 10.
A110-5RWY 20 CALM WIND RWY BLO 4 KTS FOR NOISE ABATEMENT. AVOID HOSPITAL TO THE N.
A110-6FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0223.
A110-7TWY B CLSD TO PWRD ACFT
A110-8BIRDS, DEER, & OTR WILDLIFE ON & INVOF ARPT.
A110-9CAUTION: GLIDER OPS ALL RWY'S
A16OR 330-241-2562.
A58-02+4 FT FENCE, 200 FT DIST FM THR, 185 FT R, EXTDD TO DTHR, 220 FT R, OBSTN CLNC SLP 0:1.
A58-10+20 FT TWY, 0-185 FT DIST, 100 FT L; +20 FT TWY, 0-85 FT DIST, 110 FT R.
A58-20+4 FT FENCE, 200 FT DIST, 235 FT L, EXTDD TO 95 FT DIST, 250 FT L, OBSTN CLNC SLP 0:1.
A70-AJET A ANTI-ICING AVBL AT NOZZLE.
A75-HPRIOR CDN RQRD FOR TSNT HNGR.
A81-APTACTVT MIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
E111VFR ONLY.
WADSWORTH MUNI (IATA: 3G3) is a public airport located in WADSWORTH, OH, US.
