iFlightPlanner



...

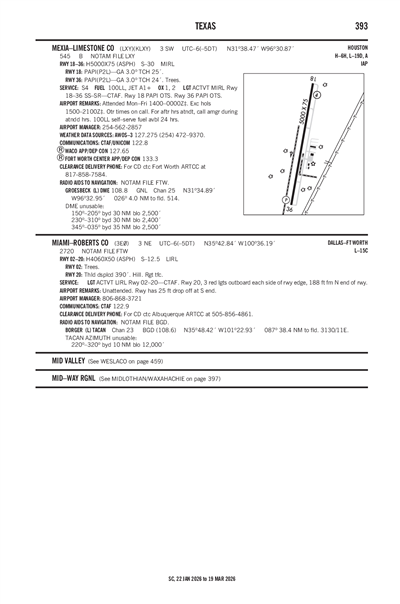

MIAMI-ROBERTS COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3E0
Local 3E0
MIAMI-ROBERTS COUNTY
PublicPUB

3 miles NE of MIAMI, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 42' 50"N 100° 36' 11"W
Elevation
2720' MSL
Pattern Alt
3720' MSL
Mag Variation
5°E
Declination
8°E
Fuel
None Listed
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KHHF (14nm) MVFR
8:55 PM CST
Overcast 1,500'
10sm
45°F
41°F
30.05"Hg
040° 7kts
AO2
METAR KHHF 040255Z AUTO 04007KT 10SM OVC015 07/05 A3005 RMK AO2
+ Add Your Business

3E0 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT LIRL RWY 02/20 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KAMA (62nm)
Tue, 3/3 5:21 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 1:00 AM CST
Few 15,000'
6sm
030° 15kts
MVFR
1:00 AM CST - 3:00 AM CST
Overcast 1,000'
6sm
010° 13kts
IFR
3:00 AM CST - 11:00 AM CST
Overcast 800'
6sm
360° 12kts
VFR
11:00 AM CST - 6:00 PM CST
Scattered 2,000'
6sm
350° 7kts
TAF KAMA 032321Z 0400/0424 03015KT P6SM FEW150
   FM040700 01013KT P6SM OVC010
   FM040900 36012KT P6SM OVC008
   FM041700 35007KT P6SM SCT020
3E0
No NOTAM Available
No
UNATNDD
COUNTY OF ROBERTS
300 COMMERCIAL ST P.O. BOX 478
MIAMI, TX 79059
Phone: 806-868-2341
MITCHEL LOCKE
300 COMMERCIAL ST P.O. BOX 478
MIAMI, TX 79059
Phone: 806-868-3721
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT LIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 02/20

4060 ft. x 50 ft.
ASPH
Good
NONE
LOW

12,000lbs
--
--
--
  Runway 02 Runway 20
True Heading Not ListedNot Listed
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-3RWY 20, 3 RED LGTS OUTBOARD EACH SIDE OF RWY EDGE, 188 FT FM N END OF RWY.
A110-4RWY HAS 25 FT DROP OFF AT S END.
A14COUNTY JUDGE/ARPT MGR.
A57-20APCH SLOPE 0:1 AT DTHR OVR 4 FT HILL, 0 FT DSTC. 70 FT L.
A58-0215 FT TREE, 100 FT DSTC.90 FT L.
A58-208 FT FENCE (4 FT FENCE ON 4 FT GROUND) 0-125 FT DSTC, 66 FT L TO 20 FT R. 10 FT RD, 0 FT DSTC, 100 FT R.
A81-APTACTVT LIRL RWY 02/20 - CTAF.
MIAMI-ROBERTS COUNTY (IATA: 3E0) is a public airport located in MIAMI, TX, US.
