iFlightPlanner



...

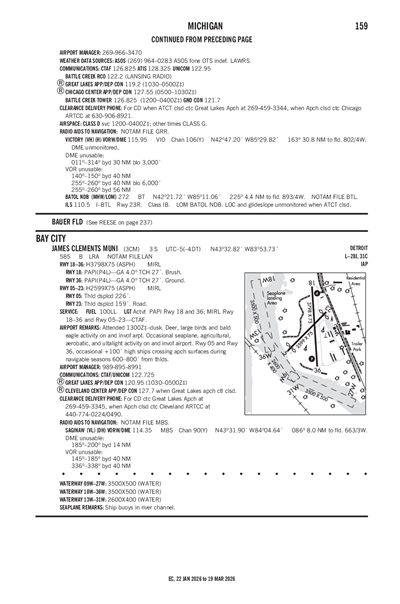

JAMES CLEMENTS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3CM
Local 3CM
JAMES CLEMENTS MUNI
PublicPUB

3 miles S of BAY CITY, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 32' 49"N 83° 53' 44"W
Elevation
585' MSL
Pattern Alt
1585' MSL
Mag Variation
7°W
Declination
7°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KHYX (7nm) MVFR
6:55 AM EST
Mist
Clear
4sm
25°F
23°F
30.23"Hg
330° 1kts
AO2 11027 21046 70000
METAR KHYX 041155Z AUTO 33001KT 4SM BR CLR M04/M05 A3023 RMK AO2 11027 21046 70000
+ Add Your Business

3CM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.725
ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 & 05/23 - CTAF.
UNICOM 122.725

Approach

GREAT LAKES APPROACH 120.95

Departure

GREAT LAKES DEPARTURE 120.95

Center

GREAT LAKES CENTER 127.7
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 127.7/290.425 (FREELAND RCAG) WHEN GREAT LAKES APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMBS (8nm)
Wed, 3/4 6:20 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
MVFR
7:00 AM EST - 10:00 AM EST
Mist
Scattered 25,000'
5sm
VRB° 2kts
VFR
10:00 AM EST - 1:00 PM EST
Scattered 2,200'
6sm
130° 5kts
VFR
1:00 PM EST - 11:00 PM EST
Broken 25,000'
6sm
090° 5kts
MVFR
11:00 PM EST - 7:00 AM EST
Mist
Overcast 8,000'
5sm
110° 5kts
TAF KMBS 041120Z 0412/0512 VRB02KT 5SM BR SCT250
   FM041500 13005KT P6SM SCT022
   FM041800 09005KT P6SM BKN250
   FM050400 11005KT 5SM BR OVC080
3CM
EffectiveExpiresCategoryNOTAM
Domestic
7/24/25
1154Z
!LAN 07/466 3CM TWY A IRREGULAR SFC UNEVEN PAVEMENT 2507241154-2607242359EST
5/8/25
1831Z
!LAN 05/105 3CM OBST CRANE (ASN UNKNOWN) 433447N0835359W (1.98NM N APCH END RWY 18)
809FT (232FT AGL) FLAGGED AND LGTD 2505081831-2707312000EST
4/30/25
1100Z
!LAN 04/569 3CM AD AP WILDLIFE HAZARD DEER W SIDE 2504301100-2605012000EST
No
0800-DUSK
BAY CITY
301 WASHINGTON AVE
BAY CITY, MI 48708
Phone: 989-894-8229
BRYAN KING
614 S RIVER RD
BAY CITY, MI 48708
Phone: 989-895-8991
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 & 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

2599 ft. x 75 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 32' 38"N 43° 32' 57"N
Longitude 83° 53' 59"W 83° 53' 34"W
Elevation 584' 584'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09W/27W

3500 ft. x 500 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway 09W Runway 27W
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 580' 580'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13W/31W

2600 ft. x 400 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway 13W Runway 31W
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 580' 580'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

3798 ft. x 75 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 176°356°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 33' 09"N 43° 32' 31"N
Longitude 83° 53' 43"W 83° 53' 40"W
Elevation 584' 582'
Threshold Crossing Height 27 ft. AGL 27 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18W/36W

3500 ft. x 500 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway 18W Runway 36W
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 580' 580'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1OCNL SEAPLANE, AGRICULTURAL, AEROBATIC, & ULTRALIGHT ACT ON & INVOF ARPT.
A110-2SHIP BUOYS IN RIVER CHANNEL.
A110-3DEER, LRG BIRDS, & BALD EAGLE ACT ON & INVOF ARPT.
A110-4RWY 05 & 36 OCNL +100 FT SHIPS XNG APCH SFCS DURG NAV SEASONS 600-800 FT FM THR.
A110-8FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A57-05APCH RATIO 20:1 AT DTHR.
A57-18CTLNG OBSTN EXCEEDS 45 DEG SLP.
A57-23APCH RATIO 20:1 AT DTHR.
A57-36CTLNG OBSTN EXCEEDS 45 DEG SLP.
A58-05+4 FT DIKE, 85 FT DIST.
A58-36+15 FT BRUSH, 0 FT DIST, 250 FT L.
A81-APTACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 & 05/23 - CTAF.
E111NOT IN COMPLIANCE WITH FAR 157; SPB ESTABD BFR 1959.
JAMES CLEMENTS MUNI (IATA: 3CM) is a public airport located in BAY CITY, MI, US.
