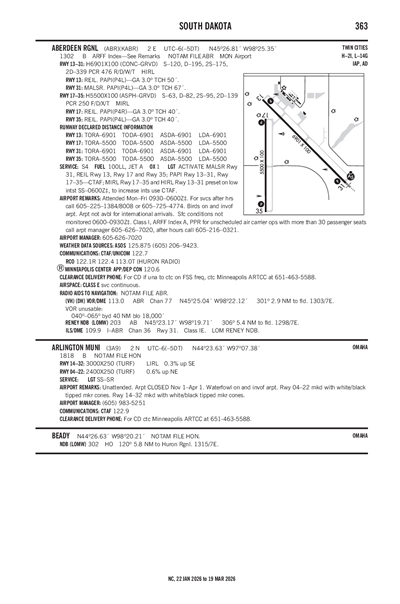

ARLINGTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3A9
Local 3A9
ARLINGTON MUNI
PublicPUB

2 miles N of ARLINGTON, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 23' 38"N 97° 07' 23"W
Elevation
1818' MSL
Pattern Alt
2818' MSL
Mag Variation
3°E
Declination
6°E
Fuel
None Listed
FSS
HURON (HON)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KBKX (14nm) VFR
7:56 PM CST
Clear
7sm
40°F
38°F
30.14"Hg
030° 3kts
AO2 SLP231 T00440033
METAR KBKX 040156Z AUTO 03003KT 7SM CLR 04/03 A3014 RMK AO2 SLP231 T00440033
+ Add Your Business

3A9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KATY (31nm)
Tue, 3/3 7:59 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
Temporary 8:00 PM CST - 10:00 PM CST
Fog
Obscured
0.25sm
Calm
LIFR
8:00 PM CST - 12:00 AM CST
Mist
Broken 200'
2sm
VRB° 3kts
LIFR
12:00 AM CST - 10:00 AM CST
Freezing Fog
Broken 300'
0.5sm
200° 6kts
MVFR
10:00 AM CST - 12:00 PM CST
Mist
Scattered 25,000'
Scattered 600'
4sm
200° 10kts
VFR
12:00 PM CST - 6:00 PM CST
Few 1,000'
6sm
200° 11kts
TAF KATY 040159Z 0402/0424 VRB03KT 2SM BR BKN002
   TEMPO 0402/0404 1/4SM FG VV002
   FM040600 20006KT 1/2SM FZFG BKN003
   FM041600 20010KT 4SM BR SCT006 SCT250
   FM041800 20011KT P6SM FEW010
3A9
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
0622Z
3/11/26
0522Z
!HON 02/093 3A9 OBST TOWER LGT (ASR 1040231) 442119.10N0970725.80W (2.3NM S 3A9) 2110.9FT (272.0FT AGL) U/S 2602240622-2603110522
2/14/26
0032Z
3/31/26
0032Z
!HON 02/054 3A9 OBST TOWER LGT (ASR 1269987) 442134.40N0970737.80W (2.1NM S 3A9) 2080.7FT (259.8FT AGL) U/S 2602140032-2603310032
No
UNATNDD
CITY OF ARLINGTON
PO BOX 379
ARLINGTON, SD 57212
Phone: 605-983-5251
MARSHAL MIX
CITY OF ARLINGTON PO BOX 379
ARLINGTON, SD 57212
Phone: (605) 983-5251
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Glider Service
Glider Towing

Runway 04/22

2400 ft. x 250 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 23' 30"N 44° 23' 47"N
Longitude 97° 07' 32"W 97° 07' 09"W
Elevation 1,803' 1,818'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14/32

3000 ft. x 250 ft.
TURF
Fair
NONE
LOW

--
--
--
--
  Runway 14 Runway 32
True Heading 150°330°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 23' 50"N 44° 23' 24"N
Longitude 97° 07' 35"W 97° 07' 14"W
Elevation 1,801' 1,810'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CULTIVATED FIELDS ALL QUADRANTS AT VARIOUS DSTCS FM RYS.
A110-2ARPT CLSD 1 NOV TO 1 APR.
A110-3WATERFOWL ON AND INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A42-04_MARKRWY 04/22 MKD WITH WHITE/BLACK TIPPED MKR CONES.
A42-14_MARKRWY 14/32 MKD WITH WHITE/BLACK TIPPED MKR CONES.
ARLINGTON MUNI (IATA: 3A9) is a public airport located in ARLINGTON, SD, US.
