3A2
NEW TAZEWELL MUNI
PublicPUB

3 miles SE of TAZEWELL, TN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 24' 32"N 83° 33' 26"W
1179' MSL
2179' MSL
05W
100LL
NASHVILLE (BNA)
CINCINNATI
ATLANTA (ZTL)
12/26/24-1/23/25
No METAR is available for this location.

3A2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

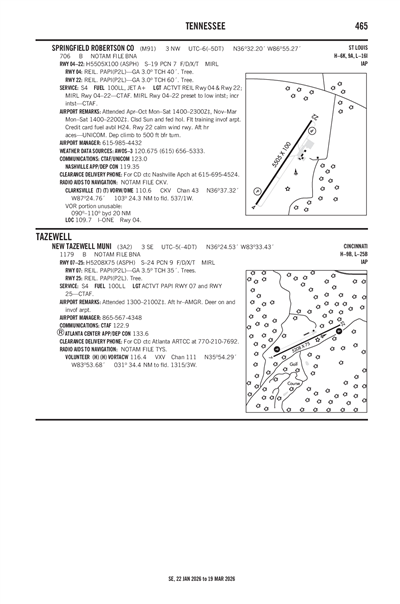

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
3A2
Domestic
1/15/250600Z !BNA 01/465 3A2 OBST TOWER LGT (ASR 1050639) 361854.20N0832645.70W (7.7NM SE 3A2) 1600.7FT (280.8FT AGL) U/S 2501150600-2501300500
1/9/251916Z !BNA 01/192 3A2 OBST TOWER LGT (ASN 2019-ASO-21565-OE) 361736N0833546W (7.2NM SSW 3A2) 1705FT (290FT AGL) U/S 2501091916-2502231916
12/11/241720Z !BNA 12/221 3A2 OBST TOWER LGT (ASR 1245211) 361916.60N0834415.10W (10.3NM WSW 3A2) 1619.8FT (279.9FT AGL) U/S 2412111720-2503110500
12/5/241120Z !BNA 12/096 3A2 OBST TOWER LGT (ASR 1244767) 362402.70N0833940.50W (5.1NM W 3A2) 1875.0FT (280.8FT AGL) U/S 2412051120-2503050500
10/7/241338Z !BNA 10/154 3A2 RWY 07 RWY END ID LGT U/S 2410071338-2504072111EST
10/7/241338Z !BNA 10/153 3A2 RWY 07 PAPI U/S 2410071338-2504072111EST
7/19/241119Z !BNA 07/397 3A2 RWY 25 PAPI U/S 2407191119-2501202111EST
FDC
6/15/242300Z !FDC 4/9320 3A2 SPECIAL IAP NEW TAZEWELL MUNI, TAZEWELL, TN COPTER
RNAV 279 AMDT 1 H-279 2000FT / HAS 321FT CHANGE MISSED APPROACH
INSTRUCTIONS TO READ: CLIMBING LEFT TURN TO 3800FT DIRECT WUGUP AND
HOLD PERIODIC REVIEW RESULTS
2406152300-2502252359
No
0800-1600
AFT HR - AMGR.
CITY OF NEW TAZEWELL
PO BOX 609
NEW TAZEWELL, TN 37824
Phone: (423) 626-5242
JERRY HOOPER
380 AIRPORT LANE
TAZEWELL, TN 37879
Phone: 423-626-5242
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT PAPI RWY 07 & 25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 07/25

5208 ft. x 75 ft.
ASPH
Good
NONE
MED
9 /F/D/X/T
16,000lbs
24,000lbs
--
--
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 24' 21"N 36° 24' 43"N
Longitude 83° 33' 55"W 83° 32' 57"W
Elevation 1,177' 1,172'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-2FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
NEW TAZEWELL MUNI (IATA: 3A2) is a public airport located in TAZEWELL, TN.
