iFlightPlanner



...

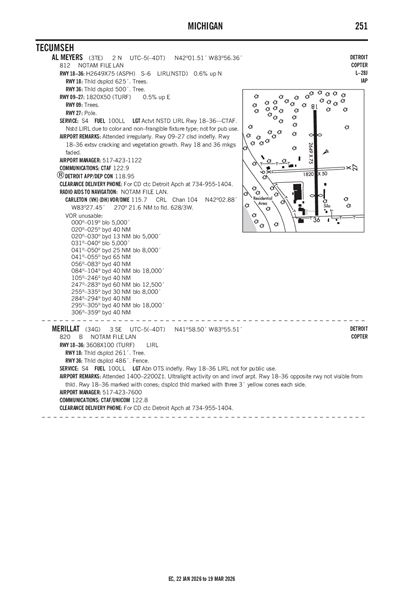

MERILLAT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

34G
Local 34G
MERILLAT
PublicPUB

3 miles SE of TECUMSEH, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 58' 30"N 83° 55' 31"W
Elevation
820' MSL
Pattern Alt
1820' MSL
Mag Variation
7°W
Declination
5°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KADG (9nm) IFR
11:53 PM EST
Mist
Clear
1.75sm
30°F
30°F
30.21"Hg
Calm
AO2 SLP238 I1000 T10111011 400221050 $
METAR KADG 040453Z AUTO 00000KT 1 3/4SM BR CLR M01/M01 A3021 RMK AO2 SLP238 I1000 T10111011 400221050 $
+ Add Your Business

34G FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KTOL (24nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 11:00 PM EST
Mist
Overcast 400'
2sm
040° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Mist
Overcast 1,500'
5sm
360° 2kts
IFR
1:00 AM EST - 4:00 AM EST
Mist
Overcast 500'
1sm
360° 2kts
LIFR
4:00 AM EST - 10:00 AM EST
Fog
Overcast 200'
0.25sm
040° 2kts
IFR
10:00 AM EST - 7:00 PM EST
Mist
Overcast 600'
3sm
080° 5kts
TAF KTOL 032320Z 0400/0424 04003KT 2SM BR OVC004
   FM040400 36002KT 5SM BR OVC015
   FM040600 36002KT 1SM BR OVC005
   FM040900 04002KT 1/4SM FG OVC002
   FM041500 08005KT 3SM BR OVC006
34G
No NOTAM Available
No
0900-1700
JAMES N MERILLAT
5763 N. ROGERS HIGHWAY
TECUMSEH, MI 49286
Phone: 517-423-7600
JEFF WRIGHT
5763 N. ROGERS HIGHWAY
TECUMSEH, MI 49286
Phone: 517-423-7600
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
Sunset to Sunrise
ABN OTS INDEFLY.
N/A
Yes
No
No
Tie-Down
No
Major
Major
None
None
None

Runway 18/36

3608 ft. x 100 ft.
TURF
Good
NONE
LOW

--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left
Markings
Markings Condition
Latitude 41° 58' 26"N 41° 57' 51"N
Longitude 83° 55' 24"W 83° 55' 25"W
Elevation 820' 820'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-3RY 18/36 OPP RY END NOT VISIBLE FM TH.
A110-4FOR CD CTC DETROIT APCH AT 734-955-1404.
A40-18/36LIRL NOT FOR PUBLIC USE.
A42-18_MARK18/36 MKD WITH CONES; DSPLCD THLD MKD WITH THREE 3 FT YELLOW CONES EACH SIDE.
A57-18APCH RATIO 10:1 TO DTHR OVR 82 FT TREE, 830 FT DIST, 208 FT R.
A57-36APCH RATIO 9:1 TO DTHR OVR 54 FT TREE, 486 FT DIST, 160 FT L.
A81-BCNABN OTS INDEFLY.
E111PRVDD ALL TFC PTN OPNS CONDD EAST OF N/S RWY, VFR WX CONDS ONLY.
MERILLAT (IATA: 34G) is a public airport located in TECUMSEH, MI, US.
