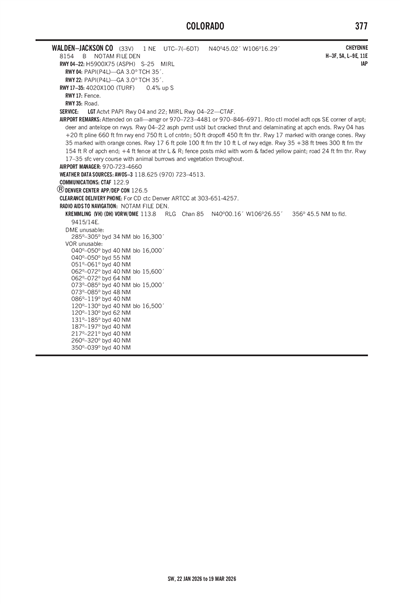

WALDEN-JACKSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

33V
Local 33V
WALDEN-JACKSON COUNTY
PublicPUB

1 miles NE of WALDEN, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 45' 01"N 106° 16' 17"W
Elevation
8154' MSL
Pattern Alt
9154' MSL
Mag Variation
9°E
Declination
10°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
K33V VFR
3:55 AM MST
Clear
10sm
21°F
19°F
30.19"Hg
Calm
AO1
METAR K33V 041055Z AUTO 00000KT 10SM CLR M06/M07 A3019 RMK AO1
+ Add Your Business

33V FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.625
(970) 723-4513

Common

CTAF 122.9
ACTVT PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.

Center

DENVER CENTER 126.5
LOW/HIGH, APCH/DEP SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 126.5/371.85 (WALTON PEAK RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KLAR (44nm)
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
IFR
Temporary 11:00 PM MST - 3:00 AM MST
Mist
Scattered 300'
1.5sm
Calm
VFR
11:00 PM MST - 3:00 AM MST
Mist and Fog in vicinity
Sky Clear
6sm
VRB° 6kts
VFR
3:00 AM MST - 10:00 AM MST
Fog in vicinity
Few 500'
6sm
180° 8kts
VFR
10:00 AM MST - 7:00 PM MST
Sky Clear
6sm
240° 12kts
Gusts 20kts
VFR
7:00 PM MST - 11:00 PM MST
Few 6,000'
6sm
180° 10kts
TAF KLAR 040520Z 0406/0506 VRB06KT 6SM BR VCFG SKC
   TEMPO 0406/0410 1 1/2SM BR SCT003
   FM041000 18008KT P6SM VCFG FEW005
   FM041700 24012G20KT P6SM SKC
   FM050200 18010KT P6SM FEW060
33V
No NOTAM Available
No
ON CALL
AMGR OR 970-723-4481 OR 970-846-6971.
JACKSON COUNTY
CO COURTHOUSE PO BOX 1019
WALDEN, CO 80480
Phone: 970-723-4660
SAMANTHA MARTIN
P. O. BOX 1019
WALDEN, CO 80480
Phone: 970-723-4660
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5900 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 44' 40"N 40° 45' 21"N
Longitude 106° 16' 45"W 106° 15' 50"W
Elevation 8,153' 8,150'
Threshold Crossing Height 35 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4020 ft. x 100 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 45' 23"N 40° 44' 43"N
Longitude 106° 16' 16"W 106° 16' 17"W
Elevation 8,139' 8,154'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RDO CTL MODEL ACFT OPS SE CORNER OF ARPT; DEER & ANTELOPE ON RWYS.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
A17-M1AMGR OR 970-723-4481 OR 970-846-6971.
A30A-04+20 FT PLINE 660 FT FM RWY END 750 FT L OF CNTRLN; 50 FT DROPOFF 450 FT FM THR.
A30A-176 FT POLE 100 FT FM THR 10 FT L OF RWY EDGE.
A30A-35+38 FT TREES 300 FT FM THR 154 FT R OF APCH END; +4 FT FENCE AT THR L & R; FENCE POSTS MKD WITH WORN & FADED YELLOW PAINT; ROAD 24 FT FM THR.
A33-04/22_CONDRWY 4-22 ASPH PVMT USBL BUT CRACKED THRUT AND DELAMINATING AT APCH ENDS.
A33-17/35_CONDRY 17-35 SFC VERY COURSE WITH ANIMAL BURROWS AND VEGITATION THROUGHOUT.
A42-17_MARKORANGE CONES.
A42-35_MARKORANGE CONES.
A53-17FENCE POSTS MKD WITH YELLOW PAINT; WORN & FADED.
A58-22+4 FT BRUSH 10 FT FM THR.
A81-APTACTVT PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
A84MKD WITH YELLOW & BLACK TIRES.
WALDEN-JACKSON COUNTY (IATA: 33V) is a public airport located in WALDEN, CO, US.
