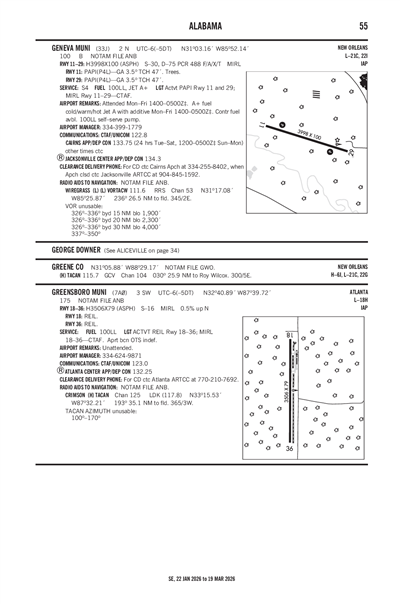

GENEVA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

33J
Local 33J
GENEVA MUNI
PublicPUB

2 miles N of GENEVA, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 03' 09"N 85° 52' 08"W
Elevation
100' MSL
Pattern Alt
1100' MSL
Mag Variation
4°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
ANNISTON (ANB)
Sectional
NEW ORLEANS
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KEDN (15nm) VFR
7:55 PM CST
Scattered 6,000'
10sm
67°F
57°F
30.25"Hg
100° 6kts
AO1 T01930138
METAR KEDN 040155Z AUTO 10006KT 10SM SCT060 19/14 A3025 RMK AO1 T01930138
+ Add Your Business

33J FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
UNICOM 122.8

Approach

CAIRNS APPROACH 133.75

Departure

CAIRNS DEPARTURE 133.75

Center

CAIRNS CENTER 134.3
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 134.3/322.55 (DOTHAN RCAG) WHEN CAIRNS APCH/DEP CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDHN (27nm)
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 3:00 AM CST
Sky Clear
6sm
090° 5kts
IFR
3:00 AM CST - 8:00 AM CST
Mist
Overcast 4,000'
Broken 500'
4sm
110° 4kts
VFR
8:00 AM CST - 10:00 AM CST
Broken 4,000'
Scattered 1,500'
6sm
140° 6kts
VFR
10:00 AM CST - 6:00 PM CST
Scattered 4,000'
6sm
110° 6kts
TAF KDHN 032332Z 0400/0424 09005KT P6SM SKC
   FM040900 11004KT 4SM BR BKN005 OVC040
   FM041400 14006KT P6SM SCT015 BKN040
   FM041600 11006KT P6SM SCT040
33J
No NOTAM Available
No
MON-FRI 0800-2300
TOWN OF GENEVA
304 AIRPORT AVENUE
GENEVA, AL 36340
Phone: 334-684-2485
BRYAN PIKE
304 AIRPORT AVENUE
GENEVA, AL 36340
Phone: 334-399-1779
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 11/29

3998 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
75,000lbs
--
--
  Runway 11 Runway 29
True Heading 107°287°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 03' 15"N 31° 03' 04"N
Longitude 85° 52' 30"W 85° 51' 46"W
Elevation 94' 96'
Threshold Crossing Height 47 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CAIRNS APCH AT 334-255-8402, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A39-11/29PCR VALUE: 488/F/A/X/T
A70-100LLSELF-SERVE PUMP.
A70-A+COLD/WARM/HOT JET-A WITH ADDITIVE MON-FRI 0800-2300 LOCAL. CONTR FUEL AVBL.
A81-APTACTVT PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
E111PRIOR TO FAA ACT.
GENEVA MUNI (IATA: 33J) is a public airport located in GENEVA, AL, US.
