2Y1
DRAKE
PublicPUB

1 miles E of RADCLIFFE, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 19' 03"N 93° 24' 55"W
1179' MSL
2179' MSL
04E
None Listed
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KIFA (11nm) VFR
5:35 AM CST
Clear
7sm
45°F
39°F
30.17"Hg
090° 7kts
AO2 T00730038
KIFA 091135Z AUTO 09007KT 7SM CLR 07/04 A3017 RMK AO2 T00730038
Add Your Business

2Y1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

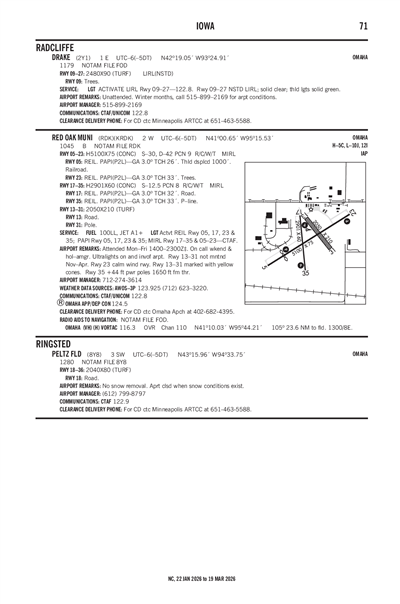

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KFOD (37nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Overcast 15,000'
6sm
110° 8kts
MVFR
9:00 AM CST - 12:00 PM CST
Light Showers and Rain
Overcast 4,000'
4sm
130° 12kts
Gusts 22kts
MVFR
12:00 PM CST - 2:00 PM CST
Light Showers and Rain
Overcast 2,500'
4sm
130° 13kts
Gusts 23kts
IFR
2:00 PM CST - 2:00 AM CST
Overcast 800'
6sm
130° 13kts
Gusts 23kts
IFR
2:00 AM CST - 6:00 AM CST
Light Showers and Rain
Overcast 800'
5sm
170° 6kts
KFOD 091120Z 0912/1012 11008KT P6SM OVC150
   FM091500 13012G22KT 4SM -SHRA OVC040
   FM091800 13013G23KT 4SM -SHRA OVC025
   FM092000 13013G23KT P6SM OVC008
   FM100800 17006KT 5SM -SHRA OVC008
2Y1
Domestic
9/24/240237Z !FOD 09/178 2Y1 OBST TOWER LGT (ASR 1017365) 422828.90N0933521.80W (12.2NM NW 2Y1) 1626.0FT (417.0FT AGL) U/S 2409240237-2412312359
11/15/211808Z !FOD 11/082 2Y1 OBST TOWER LGT (ASR UNKNOWN) 422044.54N0933110.04W (4.7NM W 2Y1) UNKNOWN (394FT AGL) U/S 2111151808-PERM
11/15/211806Z !FOD 11/081 2Y1 OBST TOWER LGT (ASR UNKNOWN) 421148.32N0932126.04W (8.5NM SE 2Y1) UNKNOWN (394FT AGL) U/S 2111151806-PERM
No
UNATNDD
R. DRAKE
303 EAST ST.
RADCLIFFE, IA 50230
Phone: 515-899-2121
R. R. DRAKE
303 EAST ST.
RADCLIFFE, IA 50230
Phone: 515-899-2169
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
ACTVT LIRL RWY 09/27 - 122.8.
N/A
Yes
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 09/27

2480 ft. x 90 ft.
TURF
Fair
NONE
NSTD

--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 19' 03"N 42° 19' 03"N
Longitude 93° 25' 11"W 93° 24' 38"W
Elevation 1,173' 1,172'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WINTER MONTHS CALL 515-899-2169 FOR ARPT CONDITIONS.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
DRAKE (IATA: 2Y1) is a public airport located in RADCLIFFE, IA.
