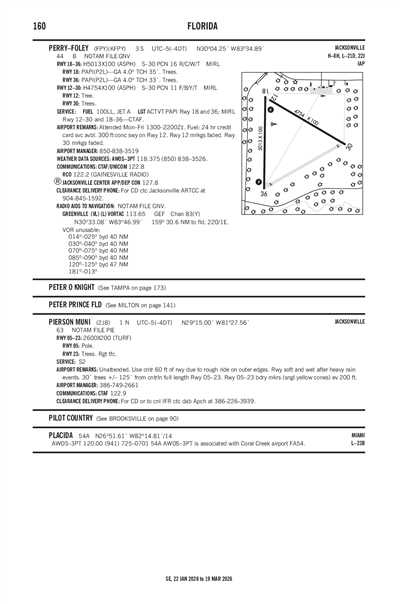

PIERSON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2J8
Local 2J8
PIERSON MUNI
PublicPUB

1 miles N of PIERSON, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 15' 00"N 81° 27' 34"W
Elevation
63' MSL
Pattern Alt
1063' MSL
Mag Variation
7°W
Declination
3°W
Fuel
None Listed
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KDED (14nm) LIFR
6:35 AM EST
Fog
Overcast 200'
0.25sm
59°F
59°F
30.26"Hg
360° 4kts
AO2 T01520148
METAR KDED 041135Z AUTO 36004KT 1/4SM FG OVC002 15/15 A3026 RMK AO2 T01520148
+ Add Your Business

2J8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KDAB (21nm)
Wed, 3/4 6:20 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
7:00 AM EST - 9:00 AM EST
Mist
Broken 2,000'
Scattered 600'
Scattered 200'
2sm
VRB° 4kts
LIFR
Temporary 7:00 AM EST - 9:00 AM EST
Fog
Broken 600'
Broken 200'
0.5sm
Calm
VFR
9:00 AM EST - 11:00 AM EST
Broken 5,000'
Scattered 3,000'
Scattered 200'
6sm
020° 6kts
VFR
11:00 AM EST - 8:00 PM EST
Broken 5,000'
Scattered 3,000'
6sm
050° 9kts
VFR
8:00 PM EST - 7:00 AM EST
Scattered 6,000'
Scattered 2,000'
6sm
070° 5kts
TAF KDAB 041120Z 0412/0512 VRB04KT 2SM BR SCT002 SCT006 BKN020
   TEMPO 0412/0414 1/2SM FG BKN002 BKN006
   FM041400 02006KT P6SM SCT002 SCT030 BKN050
   FM041600 05009KT P6SM SCT030 BKN050
   FM050100 07005KT P6SM SCT020 SCT060
2J8
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
1143Z
5/28/26
0500Z
!PIE 02/385 2J8 OBST TOWER LGT (ASR 1207957) 291256.50N0812701.10W (2.1NM SSE 2J8) 358.9FT (304.1FT AGL) U/S 2602271143-2605280500
2/14/26
2345Z
!PIE 02/222 2J8 OBST TOWER LGT (ASR 1282968) 291644.00N0813859.10W (10.1NM W 2J8) 303.8FT (259.8FT AGL) U/S 2602142345-2603161700EST
No
UNATNDD
TOWN OF PIERSON
106 N CENTER ST
PIERSON, FL 32180
Phone: 386-749-2661
GRAY LEONHARD
106 N CENTER ST
PIERSON, FL 32180
Phone: 386-749-2661
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
--
N/A
Yes
No
No
Tie-Down
No
Minor
Minor
None
None
Glider Service
Pilot Instruction
Glider Towing

Runway 05/23

2600 ft. x 200 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern Left Right
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 29° 14' 51"N 29° 15' 09"N
Longitude 81° 27' 44"W 81° 27' 23"W
Elevation 59' 55'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-130 FT TREES + OR - 125 FT FM CNTRLN FULL LEN RWY 05/23.
A110-2FOR CD OR TO CNL IFR CTC DAB APCH AT 386-226-3939.
A33-05/23_CONDUSE CNTR 60 FT OF RWY DUE TO ROUGH RIDE ON OUTER EDGES. RWY SOFT & WET AFTER HEAVY RAIN EVENTS.
A42-05_MARKBNDRY MARKERS (SINGLE YELLOW CONES) EVERY 200'.
A42-23_MARKBDRY MKRS (SNGL YELLOW CONES) EV 200 FT.
A52-0595 FT ANT 1900 FT FM RY END.
E111EXISTED PRIOR TO 1959.
PIERSON MUNI (IATA: 2J8) is a public airport located in PIERSON, FL, US.
