28J
PALATKA MUNI/LT KAY LARKIN FLD
PublicPUB

2 miles NW of PALATKA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 39' 30"N 81° 41' 22"W
48' MSL
1048' MSL
05W
JET A, 100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
10/31/24-11/28/24
K28J VFR
6:55 AM EST
Clear
8sm
66°F
66°F
N/A
Calm
AO2
K28J 091155Z AUTO 00000KT 8SM CLR 19/19 RMK AO2
Add Your Business

28J FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
386-312-2212
 119.925

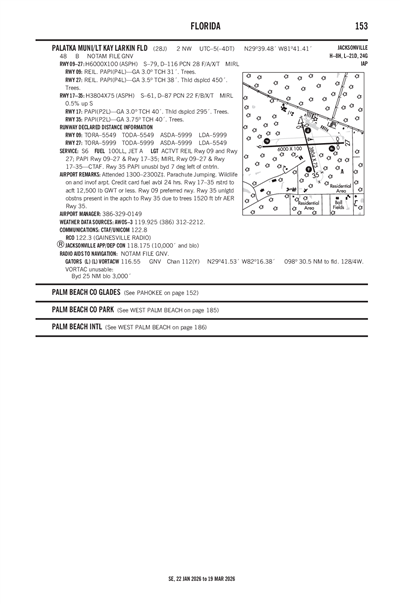

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSGJ (26nm)
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Broken 20,000'
Scattered 1,500'
6sm
050° 5kts
MVFR
9:00 AM EST - 12:00 PM EST
Overcast 7,000'
Broken 2,500'
Scattered 1,500'
6sm
050° 9kts
MVFR
12:00 PM EST - 7:00 PM EST
Showers in vicinity
Overcast 2,500'
Broken 1,500'
Scattered 900'
6sm
060° 12kts
Gusts 18kts
VFR
7:00 PM EST - 7:00 AM EST
Showers in vicinity
Broken 6,000'
Scattered 2,500'
6sm
080° 11kts
KSGJ 091120Z 0912/1012 05005KT P6SM SCT015 BKN200
   FM091400 05009KT P6SM SCT015 BKN025 OVC070
   FM091700 06012G18KT P6SM VCSH SCT009 BKN015 OVC025
   FM100000 08011KT P6SM VCSH SCT025 BKN060 AMD NOT SKED
28J
Domestic
11/6/240529Z !GNV 11/058 28J OBST TOWER LGT (ASR 1028641) 292931.60N0813452.70W (11.3NM SSE 28J) 421.3FT (324.1FT AGL) U/S 2411060529-2411210500
11/5/241449Z !GNV 11/052 28J AD AP ALL SFC WIP SURVEYING 2411051449-2411092359
11/2/241408Z !GNV 11/017 28J OBST TOWER LGT (ASR 1315953) 293638.50N0814313.80W (3.28NM SW 28J) 318FT (260FT AGL) U/S 2411021408-2412032300
10/28/242132Z !GNV 10/429 28J OBST TOWER LGT (ASR 1028642) 293710.30N0813934.00W (2.8NM SE 28J) 389.8FT (359.9FT AGL) U/S 2410282132-2411140400
10/26/241952Z !GNV 10/413 28J OBST TOWER LGT (ASR 1205730) 294826.60N0813907.00W (9.2NM NNE 28J) 294.0FT (253.9FT AGL) U/S 2410261952-2411101852
10/10/242248Z !GNV 10/211 28J OBST TOWER LGT (ASR 1054337) 293448.90N0814156.40W (4.7NM S 28J) 380.2FT (367.1FT AGL) U/S 2410102248-2412092359
9/28/240526Z !GNV 09/652 28J OBST TOWER LGT (ASR 1050701) 294631.60N0813803.80W (7.7NM NNE 28J) 242.8FT (212.9FT AGL) U/S 2409280526-2412270400
9/21/241757Z !GNV 09/309 28J OBST TOWER LGT (ASR 1037998) 293751.50N0814934.30W (7.4NM WSW 28J) 338.9FT (253.0FT AGL) U/S 2409211757-2412210400
9/12/241225Z !GNV 09/158 28J OBST TOWER LGT (ASR 1021359) 294419.00N0815135.40W (10.0NM WNW 28J) 327.1FT (248.0FT AGL) U/S 2409121225-2412110400
8/29/241507Z !GNV 08/618 28J RWY 09/27 REDL U/S 2408291507-2502282111EST
8/29/241503Z !GNV 08/617 28J RWY 27 RWY END ID LGT U/S 2408291503-2502282111EST
8/29/241503Z !GNV 08/616 28J RWY 09 RWY END ID LGT U/S 2408291503-2502282111EST
8/29/241502Z !GNV 08/615 28J RWY 27 PAPI U/S 2408291502-2502282111EST
8/29/241501Z !GNV 08/614 28J RWY 09 PAPI U/S 2408291501-2502282111EST
No
0800-1800
CITY OF PALATKA
201 NORTH 2ND ST
PALATKA, FL 32177
Phone: 386-329-0100
YUL MCNAIR
4015 REID ST, HWY 100
PALATKA, FL 32177
Phone: 386-329-0148
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09, 27, 17 & 35; MIRL RWY 09/27 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Major
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 09/27

6000 ft. x 100 ft.
ASPH
Good
NONE
MED
28 /F/A/X/T
21,000lbs
60,000lbs
--
--
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 39' 28"N 29° 39' 31"N
Longitude 81° 41' 60"W 81° 40' 52"W
Elevation 32' 31'
Threshold Crossing Height 31 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

3510 ft. x 75 ft.
ASPH
Good
NONE
MED
22 /F/B/X/T
31,000lbs
60,000lbs
--
--
  Runway 17 Runway 35
True Heading 165°345°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 29° 39' 43"N 29° 39' 09"N
Longitude 81° 41' 26"W 81° 41' 17"W
Elevation 29' 48'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-7WILDLIFE ON & INVOF ARPT.
A110-9UNLGTD OBSTNS PRESENT IN THE APCH TO RWY 35 DUE TO TREES 1520 FT BFR AER RWY 35.
PALATKA MUNI/LT KAY LARKIN FLD (IATA: 28J) is a public airport located in PALATKA, FL.
