ELDORADO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

27R
Local 27R
ELDORADO
PublicPUB

1 miles W of ELDORADO, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 51' 44"N 100° 36' 39"W
Elevation
2448' MSL
Pattern Alt
3448' MSL
Mag Variation
5°E
Declination
8°E
Fuel
100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KSOA (17nm) VFR
1:35 AM CST
No Clouds
N/A
66°F
55°F
30.03"Hg
Calm
AO2
METAR KSOA 040735Z AUTO 00000KT 19/13 A3003 RMK AO2
+ Add Your Business

27R FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
MIRL RWY 17/35 PRESET TO LOW INTST, TO INCR INTST AND ACTVT PAPI - CTAF.
UNICOM 123.0

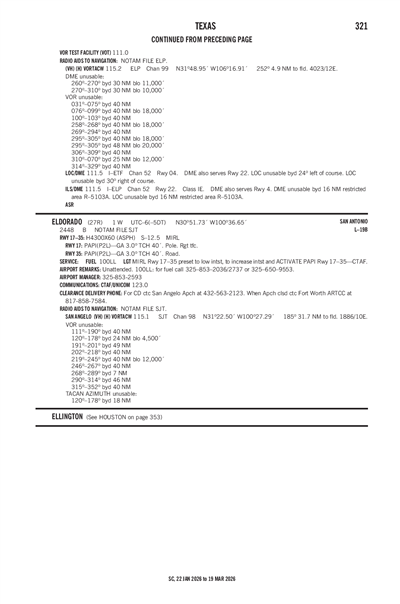

FAA A/FD Pages

Terminal Area Forecast

KSOA (17nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 2:00 AM CST
Scattered 25,000'
6sm
170° 4kts
MVFR
2:00 AM CST - 5:00 AM CST
Broken 1,500'
6sm
170° 8kts
IFR
5:00 AM CST - 3:00 PM CST
Overcast 700'
6sm
170° 12kts
Gusts 22kts
VFR
3:00 PM CST - 6:00 PM CST
Scattered 2,500'
6sm
170° 8kts
VFR
6:00 PM CST - 12:00 AM CST
Sky Clear
6sm
140° 4kts
TAF KSOA 040520Z 0406/0506 17004KT P6SM SCT250
   FM040800 17008KT P6SM BKN015
   FM041100 17012G22KT P6SM OVC007
   FM042100 17008KT P6SM SCT025
   FM050000 14004KT P6SM SKC
27R
EffectiveExpiresCategoryNOTAM
Domestic
2/1/26
0654Z
3/18/26
0653Z
!SJT 02/002 27R OBST TOWER LGT (ASR 1257290) 310125.90N1003241.70W (10.2NM NNE 27R) 2524.9FT (315.0FT AGL) U/S 2602010654-2603180653
No
UNATNDD
SCHLEICHER COUNTY
COUNTY COURTHOUSE
ELDORADO, TX 76936
Phone: 325-853-2593
CHARLIE BRADLEY /CO JUDGE/
P.O. BOX 536
ELDORADO, TX 76936
Phone: 325-853-2593
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
MIRL RWY 17/35 PRESET TO LOW INTST, TO INCR INTST AND ACTVT PAPI - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

4300 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 52' 05"N 30° 51' 23"N
Longitude 100° 36' 39"W 100° 36' 39"W
Elevation 2,444' 2,435'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC SAN ANGELO APCH AT 432-563-2123. WHEN APCH CLSD CTC FORT WORTH ARTCC AT 817-858-7584.
A57-17RWY 34 ALSO 65 FT PWRLINE, 1425 FT DSTC, 0 FT BOTH, 18:1. NOT MKD.
A70-100LLFOR FUEL CALL 325-853-2036/2737 OR 325-650-9553
A81-APTMIRL RWY 17/35 PRESET TO LOW INTST, TO INCR INTST AND ACTVT PAPI - CTAF.
ELDORADO (IATA: 27R) is a public airport located in ELDORADO, TX, US.
