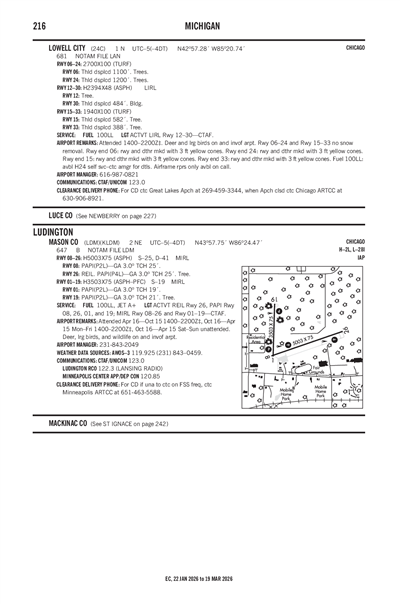

LOWELL CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

24C
LOWELL CITY
PublicPUB

1 miles N of LOWELL, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 57' 17"N 85° 20' 44"W
681' MSL
1681' MSL
06W
100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
4/17/25-5/15/25
KGRR (9nm) VFR
5:53 PM EST
Light Rain
Overcast 9,000'
Few 6,000'
10sm
52°F
44°F
29.73"Hg
160° 15kts
Gusts 23kts
AO2 RAB48 SLP073 P0000 T01110067
METAR KGRR 082253Z 16015G23KT 10SM -RA FEW060 OVC090 11/07 A2973 RMK AO2 RAB48 SLP073 P0000 T01110067
+ Add Your Business

24C FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

No frequencies available for this airport.

FAA A/FD Pages

Terminal Area Forecast

KGRR (9nm)
Thu, 1/8 12:40 PM EST
Thu, 1/8 1:00 PM EST - Fri, 1/9 1:00 PM EST
VFR
1:00 PM EST - 6:00 PM EST
Broken 20,000'
6sm
160° 11kts
MVFR
6:00 PM EST - 10:00 PM EST
Light Showers and Rain
Overcast 2,500'
6sm
150° 9kts
IFR
10:00 PM EST - 12:00 AM EST
Light Showers and Rain and Mist
Overcast 800'
2sm
150° 15kts
Gusts 26kts
MVFR
12:00 AM EST - 2:00 AM EST
Light Showers and Rain and Mist
Overcast 1,200'
3sm
170° 15kts
Gusts 28kts
IFR
2:00 AM EST - 10:00 AM EST
Light Showers and Rain and Mist
Broken 700'
4sm
190° 14kts
Gusts 26kts
IFR
10:00 AM EST - 1:00 PM EST
Light Showers and Rain and Mist
Broken 800'
6sm
220° 15kts
Gusts 25kts
TAF KGRR 081740Z 0818/0918 16011KT P6SM BKN200
   FM082300 15009KT P6SM -SHRA OVC025 WS020/20040KT
   FM090300 15015G26KT 2SM -SHRA BR OVC008 WS020/18055KT
   FM090500 17015G28KT 3SM -SHRA BR OVC012 WS020/20050KT
   FM090700 19014G26KT 4SM -SHRA BR BKN007 WS020/21050KT
   FM091500 22015G25KT 6SM -SHRA BR BKN008 WS020/26040KT
24C
EffectiveExpiresCategoryNOTAM
Domestic
11/30/25
2238Z
3/30/26
2238Z
!LAN 11/483 24C OBST TOWER LGT (ASR 1222561) 425546.90N0852144.60W (1.7NM SSW 24C) 899.3FT (261.2FT AGL) U/S 2511302238-2603302238
10/23/25
1518Z
2/20/26
1518Z
!LAN 10/261 24C OBST TOWER LGT (ASR 1056680) 425359.00N0851440.00W (5.5NM SE 24C) 1122.7FT (262.8FT AGL) U/S 2510231518-2602201518
No
0900-1700
CITY OF LOWELL
301 E MAIN ST
LOWELL, MI 49331-1759
Phone: 616-897-8457
CASEY K BROWN
770 LINCOLN LAKE AVE SE
LOWELL, MI 49331-9421
Phone: 616-987-0821
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT LIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 06/24

2700 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 69°249°
Traffic Pattern Left
Markings
Markings Condition
Latitude 42° 57' 12"N 42° 57' 21"N
Longitude 85° 21' 04"W 85° 20' 31"W
Elevation 681' 681'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No
Runway End Identifier Lights

Runway 12/30

2394 ft. x 48 ft.
ASPH
Excellent
NONE
LOW

--
--
--
--
  Runway 12 Runway 30
True Heading 113°293°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 42° 57' 24"N 42° 57' 15"N
Longitude 85° 21' 00"W 85° 20' 31"W
Elevation 681' 681'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

1940 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 57' 22"N 42° 57' 05"N
Longitude 85° 20' 44"W 85° 20' 32"W
Elevation 679' 679'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-5FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-6DEER & LRG BIRDS ON & INVOF ARPT.
A30-06/24NO SNOW REMOVAL.
A30-15/33NO SNOW REMOVAL.
A42-06RWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-15RWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-24RWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-33RWY & DTHR MKD WITH 3 FT YELLOW CONES.
A57-06APCH RATIO 22:1 TO DTHR BASED ON STRAIGHT OUT OVR 54 FT TREE, 1225 FT DIST.
A57-12CTLG OBSTN EXCEEDS A 45 DEG SLP.
A57-15APCH RATIO 12:1 TO DTHR OVR 53 FT TREE, 660 FT DIST, 50 FT L.
A57-24APCH RATIO 22:1 TO DTHR BASED ON STRAIGHT OUT OVR 63 FT TREES, 1404 FT DIST.
A57-30APCH RATIO 17:1 TO DTHR BASED ON STRAIGHT OUT OVR 45 FT TREE, 795 FT DIST.
A57-33APCH RATIO 20:1 TO DTHR BASED ON STRAIGHT OUT OVR 45 FT TREES, 940 FT DIST.
A58-3050 FT TREES, 90 FT DIST, 90 FT R; 6 FT FENCE, 0 FT DIST, 125 FT R.
A70-FUEL-100LL AVBL H24 SELF SVC - CTC AMGR FOR DTLS.
A71RPRS ONLY AVBL ON CALL.
A81-APTACTVT LIRL RWY 12/30 - CTAF.
E111ESTABD BFR 1959.
LOWELL CITY (IATA: 24C) is a public airport located in LOWELL, MI.
