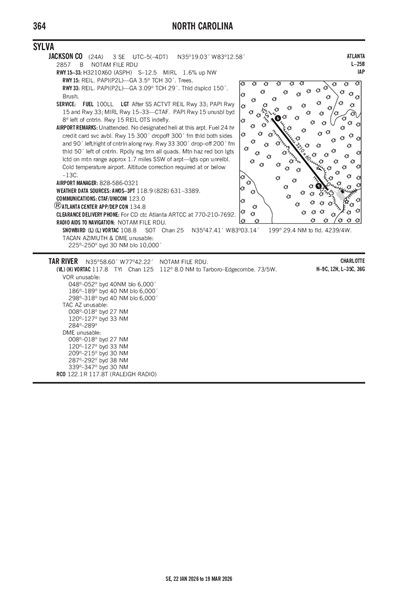

JACKSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

24A
Local 24A
JACKSON COUNTY
PublicPUB

3 miles SE of SYLVA, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 19' 02"N 83° 12' 35"W
Elevation
2857' MSL
Pattern Alt
3857' MSL
Mag Variation
6°W
Declination
5°W
Fuel
100LL
FSS
RALEIGH (RDU)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
K24A VFR
11:55 PM EST
Clear
10sm
49°F
43°F
30.32"Hg
140° 7kts
AO2 LTG DSNT NW T00960063
METAR K24A 040455Z AUTO 14007KT 10SM CLR 10/06 A3032 RMK AO2 LTG DSNT NW T00960063
+ Add Your Business

24A FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.9
(828) 631-3389

Common

CTAF 123.0
AFTER SS ACTVT REIL RWY 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
UNICOM 123.0

Center

ATLANTA CENTER 134.8
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC (ZTL) ON FREQS 134.8/379.95 (MOUNT OGLETHORPE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAVL (34nm)
Tue, 3/3 6:39 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 11:00 PM EST
Broken 20,000'
6sm
170° 5kts
VFR
11:00 PM EST - 3:00 AM EST
Scattered 20,000'
6sm
VRB° 2kts
IFR
3:00 AM EST - 8:00 AM EST
Mist
Broken 600'
2sm
VRB° 3kts
LIFR
Temporary 4:00 AM EST - 8:00 AM EST
Fog
Overcast 200'
0.5sm
Calm
VFR
8:00 AM EST - 11:00 AM EST
Broken 20,000'
6sm
170° 5kts
VFR
11:00 AM EST - 7:00 PM EST
Scattered 4,000'
6sm
210° 5kts
TAF KAVL 032339Z 0400/0424 17005KT P6SM BKN200
   FM040400 VRB02KT P6SM SCT200
   FM040800 VRB03KT 2SM BR BKN006
   TEMPO 0409/0413 1/2SM FG OVC002
   FM041300 17005KT P6SM BKN200
   FM041600 21005KT P6SM SCT040
24A
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
1608Z
4/8/26
2359Z
Runway!RDU 01/098 24A RWY 15 PAPI U/S 2601081608-2604082359
FDC
12/5/25
1606Z
!FDC 5/5149 24A ODP JACKSON COUNTY, SYLVA, NC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
CHANGE TAKEOFF MINIMUMS AND VCOA TO READ:
TAKEOFF MINIMUMS:
RWY 15: STANDARD WITH MINIMUM CLIMB OF 548 FT/NM TO 5100 OR 3600-3 FOR VCOA.
RWY 33: STANDARD WITH MINIMUM CLIMB OF 355 FT/NM TO 6400 OR 3600-3 FOR VCOA.
VCOA:
RWYS 15, 33: OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE. CLIMB IN VISUAL CONDITIONS TO CROSS JACKSON COUNTY AIRPORT AT OR ABOVE 6300 BEFORE PROCEEDING ON COURSE.
ALL OTHER DATA REMAINS AS PUBLISHED. 2512051606-2712051800EST
No
UNATNDD
JACKSON CO ARPT AUTHORITY
401 GRINDSTAFF COVE RD, SUITE A-207
SYLVA, NC 28779
Phone: 828-631-2295
JIM ROWELL
401 GRINDSTAFF COVE RD, SUITE A-207
SYLVA, NC 28779
Phone: 828-586-0321
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
AFTER SS ACTVT REIL RWY 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

3210 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 142°322°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 19' 14"N 35° 18' 49"N
Longitude 83° 12' 47"W 83° 12' 23"W
Elevation 2,857' 2,807'
Threshold Crossing Height 30 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3.5° 3.09°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10NO DSGND HELI AT THIS ARPT - ARPT MASTER RECORD INCORRECTLY DESIGNATES H1 EXISTS.
A110-4MTN HAZ RED BCN LGTS LCTD ON MTN RANGE APPROX 1.7 MILES SSW OF ARPT - LGTS OPN UNRELBL.
A110-5RWY 15 300 FT DROP-OFF 300 FT FM THLD BOTH SIDES AND 90 FT LEFT/RIGHT OF CNTRLN ALONG RWY.
A110-6RWY 33 300 FT DROP-OFF 200 FT FM THLD 50 FT LEFT OF CNTRLN.
A110-7RPDLY RSG TRRN ALL QUADS.
A110-8FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-9COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
A43-15UNUSBL BYD 8 DEG LEFT OF CNTRLN.
A48-15NOTAM IN EFFECT - OTS INDEFLY.
A57-33DSPLD THLD SLOPE 18:1 .
A70-100LLFUEL 24 HOUR CREDIT CARD SVC AVBL.
A81-APTAFTER SS ACTVT REIL RWY 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
JACKSON COUNTY (IATA: 24A) is a public airport located in SYLVA, NC, US.
