1Z1
GRAND CANYON BAR TEN AIRSTRIP
Public
PUB
60 miles SE of WHITMORE, AZ
View on
Map
Status
Operational
Coordinates
36° 15' 23"N
113° 13' 51"W
Elevation
4100' MSL
Pattern Alt
5100' MSL
Mag Variation
14E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
7/11/24-8/8/24
KSGU (49nm)
VFR
3:56 AM MDT
RAW
Clear
Viz
10sm
Temp
61°F
Dew
21°F
Pres
29.91"Hg
Wind
160° 4kts
RMK
AO2 SLP100 T01611061
KSGU 190956Z AUTO 16004KT 10SM CLR 16/M06 A2991 RMK AO2 SLP100 T01611061
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
1Z1 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

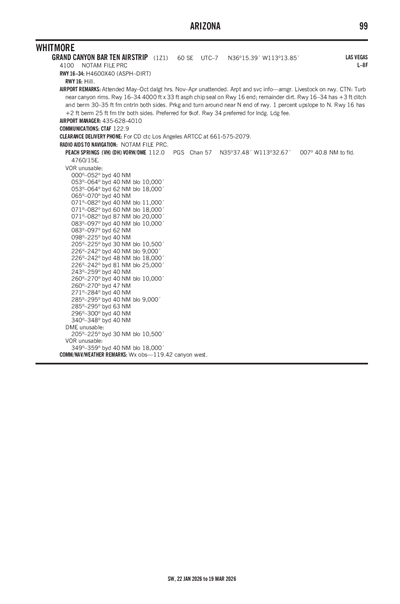

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KSGU (49nm)
RAW
Reported
Wed, 9/18 11:20 PM MDT
Valid
Thu, 9/19 12:00 AM MDT - Fri, 9/20 12:00 AM MDT
VFR
12:00 AM MDT - 3:00 PM MDT
Sky Clear
Viz
6sm
Wind
VRB° 4kts
VFR
3:00 PM MDT - 10:00 PM MDT
Few 10,000'
Viz
6sm
Wind
260° 8kts
VFR
10:00 PM MDT - 12:00 AM MDT
Few 10,000'
Viz
6sm
Wind
140° 5kts
KSGU 190520Z 1906/2006 VRB04KT P6SM SKC
FM192100 26008KT P6SM FEW100
FM200400 14005KT P6SM FEW100
1Z1
No NOTAM Available
ATC Tower
No
Attendance
MAY-OCT DALGT
NOV-APR UNATNDD
Owner
GRAND CANYON BAR TEN RANCH
PO BOX 910088
ST GEORGE, UT 84791
Phone: 435-628-4010
Manager
GAVIN HEATON
PO BOX 910088
ST GEORGE, UT 84791
Phone: 435-628-4010
FSS
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NOTAM
PRC
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
Yes
Parking
None
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 16/34
Dimensions
4600 ft. x 40 ft.
Surface Type
ASPH DIRT
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 16
Runway 34
True Heading
176°
356°
Traffic Pattern
Markings
Markings Condition
Latitude
36° 15' 46"N
36° 15' 01"N
Longitude
113° 13' 53"W
113° 13' 49"W
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
LIVESTOCK ON RWY.
A110-10
ARPT & SVC INFO - AMGR
A110-6
FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-8
WX OBS - 119.42 CANYON WEST.
A110-9
CTN: TURB NEAR CANYON RIMS.
GRAND CANYON BAR TEN AIRSTRIP (IATA: 1Z1) is a public airport located in WHITMORE, AZ.
