iFlightPlanner



...

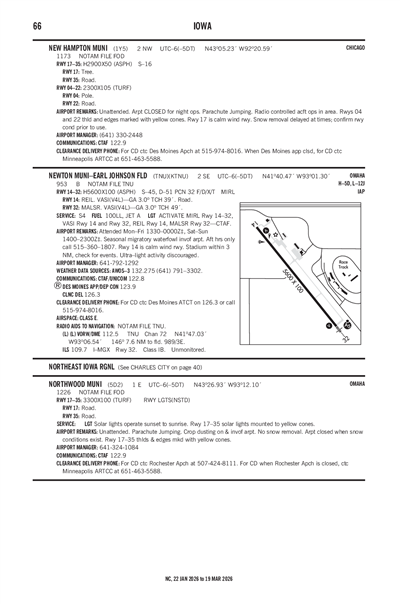

NEW HAMPTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1Y5
Local 1Y5
NEW HAMPTON MUNI
PublicPUB

2 miles NW of NEW HAMPTON, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 05' 14"N 92° 20' 36"W
Elevation
1173' MSL
Pattern Alt
2173' MSL
Mag Variation
1°W
Declination
3°E
Fuel
None Listed
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KCCY (12nm) MVFR
9:55 PM CST
Mist
Clear
3sm
34°F
34°F
30.19"Hg
Calm
AO2
METAR KCCY 040355Z AUTO 00000KT 3SM BR CLR 01/01 A3019 RMK AO2
+ Add Your Business

1Y5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KALO (32nm)
Tue, 3/3 7:55 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
8:00 PM CST - 10:00 PM CST
Scattered 3,000'
6sm
120° 6kts
MVFR
10:00 PM CST - 2:00 AM CST
Mist
Scattered 400'
3sm
VRB° 3kts
LIFR
2:00 AM CST - 7:00 AM CST
Mist
Broken 200'
1sm
VRB° 2kts
IFR
7:00 AM CST - 10:00 AM CST
Broken 800'
6sm
VRB° 4kts
MVFR
10:00 AM CST - 6:00 PM CST
Mist
Broken 1,800'
5sm
VRB° 4kts
TAF KALO 040155Z 0402/0424 12006KT P6SM SCT030
   FM040400 VRB03KT 3SM BR SCT004
   FM040800 VRB02KT 1SM BR BKN002
   FM041300 VRB04KT P6SM BKN008
   FM041600 VRB04KT 5SM BR BKN018
1Y5
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1556Z
4/9/26
1000Z
!FOD 02/357 1Y5 OBST TOWER LGT (ASR 1331106) 431341.10N0922550.80W (9.29NM NNW 1Y5) 1501.29FT (250FT AGL) U/S 2602231556-2604091000
2/23/26
0616Z
4/9/26
0616Z
!FOD 02/343 1Y5 OBST TOWER LGT (ASN 2024-WTE-6525-OE) 431127N0922615W (7.5NM NNW 1Y5) 1421FT (267FT AGL) U/S 2602230616-2604090616
2/17/26
1536Z
4/17/26
1200Z
!FOD 02/234 1Y5 OBST TOWER LGT (ASR 1258732) 431336.90N0922531.70W (9.1NM NNW 1Y5) 1495.7FT (259.8FT AGL) U/S 2602171536-2604171200
2/7/26
0116Z
3/7/26
0115Z
!FOD 02/055 1Y5 OBST TOWER LGT (ASR 1017938) 430246.00N0921810.00W (3.0NM SE 1Y5) 1481.6FT (353.0FT AGL) U/S 2602070116-2603070115
No
UNATNDD
CITY OF NEW HAMPTON
112 EAST SPRING
NEW HAMPTON, IA 50659
Phone: 641-394-5906
BRODIE RETHAMEL
515 GARFIELD STREET
NEW HAMPTON, IA 50659
Phone: (641) 330-2448
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

2300 ft. x 105 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2900 ft. x 50 ft.
ASPH
Good
NONE


16,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 169°349°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 05' 31"N 43° 05' 03"N
Longitude 92° 20' 41"W 92° 20' 34"W
Elevation 1,173' 1,167'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RC ACFT OPNS IN AREA.
A110-2RWY 17 IS CALM WIND RWY.
A110-3ARPT CLSD FOR NIGHT OPNS.
A110-4FOR CD CTC DES MOINES APCH AT 515-974-8016. WHEN DES MOINES APP CLSD, FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-5SNOW REMOVAL DELAYED AT TIMES; CONFIRM RWY COND PRIOR TO USE.
A14ARPT COMM.
A42-04_MARKRYS 04 & 22 THLD & EDGES MARKED WITH YELLOW CONES.
NEW HAMPTON MUNI (IATA: 1Y5) is a public airport located in NEW HAMPTON, IA, US.
