1V8
Local 1V8
LEACH
PublicPUB

4 miles NE of CENTER, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 47' 06"N 106° 02' 49"W
Elevation
7598' MSL
Pattern Alt
8598' MSL
Mag Variation
8°E
Declination
12°E
Fuel
100LL
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KRCV (15nm) VFR
8:55 PM MST
Clear
10sm
35°F
12°F
30.19"Hg
260° 4kts
AO2 T00181111
METAR KRCV 040355Z AUTO 26004KT 10SM CLR 02/M11 A3019 RMK AO2 T00181111
+ Add Your Business

1V8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT LIRL RY 12/30 - CTAF.
UNICOM 122.8

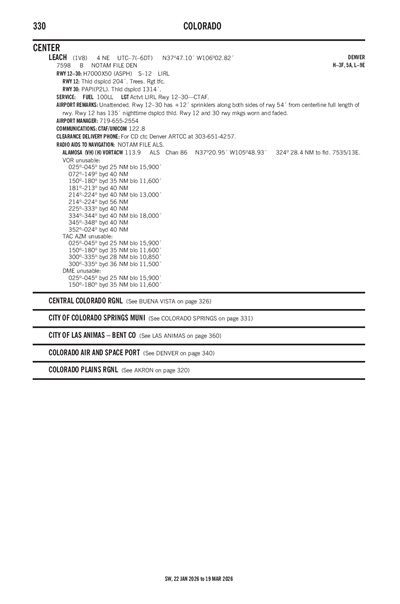

FAA A/FD Pages

Terminal Area Forecast

KALS (23nm)
Tue, 3/3 4:31 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Scattered 7,000'
6sm
280° 10kts
Gusts 25kts
VFR
7:00 PM MST - 12:00 AM MST
Scattered 20,000'
6sm
050° 9kts
VFR
12:00 AM MST - 5:00 PM MST
Sky Clear
6sm
VRB° 5kts
TAF KALS 032331Z 0400/0424 28010G25KT P6SM SCT070
   FM040200 05009KT P6SM SCT200
   FM040700 VRB05KT P6SM SKC
1V8
EffectiveExpiresCategoryNOTAM
Domestic
2/13/26
0257Z
3/13/26
2359Z
Runway!DEN 02/252 1V8 RWY 30 RTHL U/S 2602130257-2603132359
2/13/26
0256Z
3/13/26
2359Z
Runway!DEN 02/251 1V8 RWY 12 RTHL U/S 2602130256-2603132359
2/13/26
0256Z
3/13/26
2359Z
Runway!DEN 02/250 1V8 RWY 12/30 REDL U/S 2602130256-2603132359
No
UNATNDD
COUNTY OF SAGUACHE
LAND USE ADMINISTRATOR
SAGUACHE, CO 81149
Phone: 719-655-2321
WENDI MAEZ
P.O. BOX 476
SAGUACHE, CO 81149
Phone: 719-655-2554
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT LIRL RY 12/30 - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

7000 ft. x 50 ft.
ASPH
Fair
NONE
LOW

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 136°316°
Traffic Pattern Right Left
Markings NSTD BSC
Markings Condition POOR POOR
Latitude 37° 47' 30"N 37° 46' 41"N
Longitude 106° 03' 19"W 106° 02' 18"W
Elevation 7,598' 7,598'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 12/30 HAS +12 FT SPRINKLERS ALONG BOTH SIDES OF RY 54 FT FROM CNTRLN FULL LENGTH OF RY.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A42-12_CONDRY MKGS WORN & FADED.
A42-30_CONDRY MKGS WORN & FADED.
A51-12RY 12 HAS 135 FT NIGHTTIME DSPLCD THLD.
A57-12RY 12 APCH SLOPE 20:1 TO DSPLCD THLD.
A57-30RY 30 APCH SLOPE 21:1 TO DSPLCD THLD.
A58-12RY 12 HAS -5 FT DITCH 120 FT FROM PAVEMENT END, +2 FT BERM 126 FT FROM PAVEMENT END.
A58-30RY 30 HAS +60 FT POWER LINE & +4 FT SNOW FENCE AT PAVEMENT END.
A81-APTACTVT LIRL RY 12/30 - CTAF.
E111OBSTN REMOVAL OR THR DSPLCMT.
LEACH (IATA: 1V8) is a public airport located in CENTER, CO, US.
