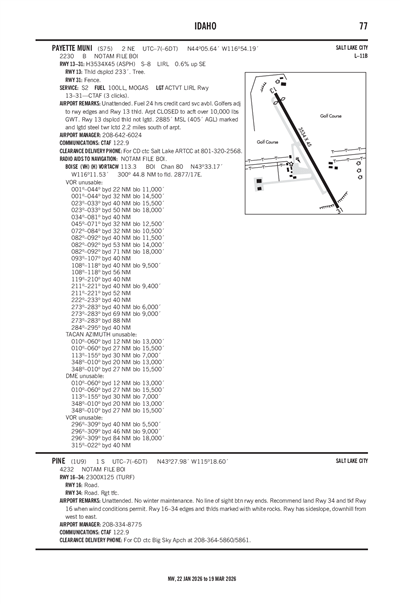

PINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1U9
Local 1U9
PINE
PublicPUB

1 miles S of PINE, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 27' 59"N 115° 18' 36"W
Elevation
4232' MSL
Pattern Alt
5232' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KMUO (36nm) VFR
9:55 PM MST
Clear
10sm
45°F
37°F
30.08"Hg
090° 11kts
AO2A SLP191 T00700027 $
METAR KMUO 040455Z 09011KT 10SM CLR 07/03 A3008 RMK AO2A SLP191 T00700027 $
+ Add Your Business

1U9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KMUO (36nm)
Tue, 3/3 7:00 PM MST
Tue, 3/3 7:00 PM MST - Thu, 3/5 1:00 AM MST
VFR
7:00 PM MST - 11:00 AM MST
Few 4,000'
6sm
30.00"Hg
120° 12kts
Gusts 20kts
MVFR
Becoming 11:00 AM MST - 5:00 PM MST
Light Showers and Rain
Broken 3,000'
4.97sm
29.88"Hg
VRB° 6kts
MVFR
Becoming 5:00 PM MST - 10:00 PM MST
Light Showers and Rain
Broken 2,000'
4.97sm
29.91"Hg
300° 10kts
Gusts 18kts
VFR
Becoming 10:00 PM MST - 1:00 AM MST
Scattered 6,000'
6sm
30.00"Hg
300° 12kts
TAF KMUO 040200Z 0402/0508 12012G20KT 9999 FEW040 QNH2999INS
   BECMG 0418/0419 VRB06KT 8000 -SHRA BKN030 QNH2989INS
   BECMG 0500/0501 30010G18KT 8000 -SHRA BKN020 QNH2991INS
   BECMG 0505/0506 30012KT 9999 NSW SCT060 QNH2999INS TX13/0420Z TN04/0414Z
1U9
No NOTAM Available
No
UNATNDD
STATE OF ID, ITD DIV OF AERO
P.O. BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
DIV ADMIN
P.O. BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 16/34

2300 ft. x 125 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 176°356°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 43° 28' 10"N 43° 27' 47"N
Longitude 115° 18' 37"W 115° 18' 35"W
Elevation 4,222' 4,206'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-3NO LINE OF SIGHT BETWEEN RWY ENDS.
A110-4RECOMMEND LAND RY 34 & TAKEOFF R\Y 16 WHEN WIND CONDITIONS PERMIT.
A110-5RY HAS SIDESLOPE, DOWNHILL FM WEST TO EAST.
A110-6FOR CD CTC BIG SKY APCH AT 208-364-5860/5861.
A42-16_MARK16/34 EDGES & THRS MARKED WITH WHITE ROCKS.
A52-16RWY 16 +450 FT TIMBERED RIDGE AT 2000 FT ON CNTRLN; +50 FT TREE AT 300 FT, 80 FT LEFT; +75 FT TREES AT 550 FT ON CNTRLN; +30 FT TREE AT 100 FT, 70 FT RIGHT.
E111ESTABD PRIOR TO 1959.
PINE (IATA: 1U9) is a public airport located in PINE, ID, US.
