iFlightPlanner



...

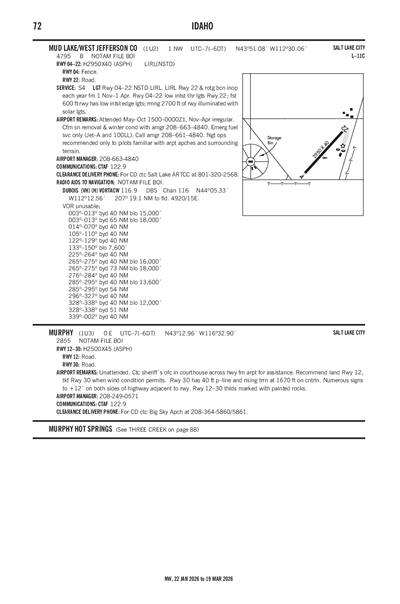

MURPHY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1U3
Local 1U3
MURPHY
PublicPUB

0 miles E of MURPHY, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 12' 57"N 116° 32' 54"W
Elevation
2855' MSL
Pattern Alt
3855' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KMAN (22nm) VFR
6:55 PM MST
Clear
10sm
55°F
39°F
30.07"Hg
120° 7kts
A01
METAR KMAN 040155Z AUTO 12007KT 10SM CLR 13/04 A3007 RMK A01
+ Add Your Business

1U3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KBOI (25nm)
Tue, 3/3 4:38 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 AM MST
Broken 20,000'
6sm
140° 12kts
VFR
9:00 AM MST - 1:00 PM MST
Showers in vicinity
Broken 7,000'
6sm
160° 11kts
VFR
1:00 PM MST - 3:00 PM MST
Light Rain and Mist
Overcast 3,500'
6sm
290° 9kts
MVFR
3:00 PM MST - 5:00 PM MST
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
4sm
320° 18kts
Gusts 30kts
TAF KBOI 032338Z 0400/0424 14012KT P6SM BKN200
   FM041600 16011KT P6SM VCSH BKN070
   FM042000 29009KT 6SM -RA BR OVC035
   FM042200 32018G30KT 4SM -RA BR SCT015 OVC025
1U3
No NOTAM Available
No
UNATNDD
CTC SHERIFF'S OFC IN COURTHOUSE ACROSS HWY FM ARPT FOR ASSISTANCE
OWYHEE COUNTY
P.O. BOX 128
MURPHY, ID 83650
Phone: 208-495-2421
JIM DESMOND
2773 N HAVEN
EAGLE, ID 83616
Phone: 208-249-0571
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 12/30

2500 ft. x 45 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition FAIR FAIR
Latitude 43° 13' 06"N 43° 12' 49"N
Longitude 116° 33' 06"W 116° 32' 42"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NUMEROUS SIGNS TO +12' ON BOTH SIDES OF HIGHWAY ADJACENT TO RY.
A110-3RWY 30 HAS 40 FT PLINE & RISING TRRN AT 1670 FT ON CNTRLN.
A110-4FOR CD CTC BIG SKY APCH AT 208-364-5860/5861.
A17-M2CTC SHERIFF'S OFC IN COURTHOUSE ACROSS HWY FM ARPT FOR ASSISTANCE
A30-12/30RCMD LAND RY 12 TKOF RY 30 WHEN WIND COND PERMITS.
A42-12_MARKTHLDS MKD WITH PAINTED ROCKS.
A57-12RWY END 12 HAS A 10 FT PVT DIRT ROAD GOING WI THE PRI SFC AREA.
A57-30RWY END 30 HAS 10 FT PVT DIRT ROAD GOING WI THE PRI SFC AREA.
A58-12+3 FT FENCE 20 FT FM RY END 60 FT L; +10 FT ROAD 0' FM RY END 100 FT R; +6 FT SIGN AT 20 FT 80 FT R.
A58-30+17 FT RD 0 FT FM RY END 100 FT L; +10 FT ROAD AT 50 FT ON CNTRLN.
E111EXISTED PRIOR TO 4/2/59.
MURPHY (IATA: 1U3) is a public airport located in MURPHY, ID, US.
