iFlightPlanner



...

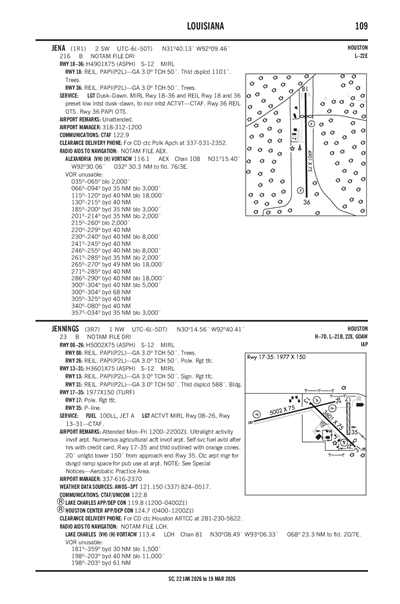

JENA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1R1
Local 1R1
JENA
PublicPUB

2 miles SW of JENA, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 40' 08"N 92° 09' 27"W
Elevation
216' MSL
Pattern Alt
1216' MSL
Mag Variation
0°
Declination
4°E
Fuel
None Listed
FSS
DE RIDDER (DRI)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KESF (18nm) VFR
9:53 PM CST
No Clouds
10sm
66°F
60°F
30.11"Hg
180° 4kts
AO2 SLP194 T01890156
METAR KESF 040353Z AUTO 18004KT 10SM 19/16 A3011 RMK AO2 SLP194 T01890156
+ Add Your Business

1R1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
DUSK-DAWN. MIRL RY 18/36 & REIL RYS 18 & 36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KAEX (29nm)
Tue, 3/3 5:31 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 1:00 AM CST
Scattered 25,000'
6sm
160° 8kts
IFR
1:00 AM CST - 8:00 AM CST
Mist
Overcast 700'
5sm
150° 5kts
MVFR
8:00 AM CST - 3:00 PM CST
Overcast 1,500'
6sm
140° 5kts
VFR
3:00 PM CST - 6:00 PM CST
Broken 5,000'
6sm
170° 11kts
TAF KAEX 032331Z 0400/0424 16008KT P6SM SCT250
   FM040700 15005KT 5SM BR OVC007
   FM041400 14005KT P6SM OVC015
   FM042100 17011KT P6SM BKN050
1R1
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
0517Z
3/9/26
0417Z
!DRI 02/310 1R1 OBST TOWER LGT (ASR 1038157) 314446.10N0922352.70W (13.1NM WNW 1R1) 341.2FT (261.2FT AGL) U/S 2602220517-2603090417
No
UNATNDD
LA SALLE PARISH ECONOMIC
PO BOX 1288
JENA, LA 71342
Phone: 318-992-2101
JUSTIN PHILLIPS
PO BOX 1889
JENA, LA 71342
Phone: 318-312-1200
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
--
DUSK-DAWN. MIRL RY 18/36 & REIL RYS 18 & 36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 18/36

4901 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 40' 32"N 31° 39' 43"N
Longitude 92° 09' 28"W 92° 09' 27"W
Elevation 216' 216'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11DEVELOPMENT DISTRICT
A110-1FOR CD CTC POLK APCH AT 337-531-2352.
A110-2CTC APRT MGR FOR DSGND RAMP SPACE FOR PUB USE.
A43-36RWY36 PAPI OTS
A48-36RWY36 REIL OTS
A57-18APCH SLP TO DTHR IS 19:1.
A81-APTDUSK-DAWN. MIRL RY 18/36 & REIL RYS 18 & 36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
JENA (IATA: 1R1) is a public airport located in JENA, LA, US.
