iFlightPlanner



...

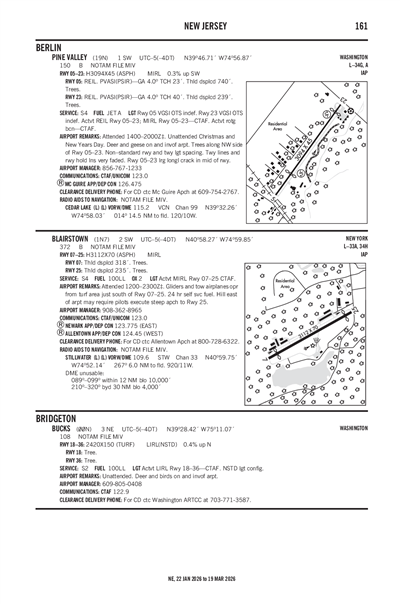

BLAIRSTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1N7
Local 1N7
BLAIRSTOWN
PublicPUB

2 miles SW of BLAIRSTOWN, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 58' 16"N 74° 59' 51"W
Elevation
372' MSL
Pattern Alt
1372' MSL
Mag Variation
12°W
Declination
13°W
Fuel
100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
K12N (12nm) VFR
8:54 PM EST
No Clouds
N/A
33°F
31°F
30.20"Hg
Calm
AO1 SLP239 P0006 T00061006
METAR K12N 040154Z AUTO 00000KT 01/M01 A3020 RMK AO1 SLP239 P0006 T00061006
+ Add Your Business

1N7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT MIRL RY 07/25-CTAF.
UNICOM 123.0

Approach

NEWARK APPROACH 123.775
EAST
NEWARK APPROACH 124.45
WEST

Departure

NEWARK DEPARTURE 123.775
EAST
NEWARK DEPARTURE 124.45
WEST

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KABE (27nm)
Tue, 3/3 8:57 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
9:00 PM EST - 2:00 AM EST
Light Rain and Mist
Overcast 500'
2sm
VRB° 3kts
LIFR
2:00 AM EST - 10:00 AM EST
Light Drizzle and Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
10:00 AM EST - 12:00 PM EST
Mist
Broken 1,500'
6sm
030° 3kts
VFR
12:00 PM EST - 7:00 PM EST
Broken 5,000'
6sm
060° 3kts
TAF KABE 040157Z 0402/0424 VRB03KT 2SM -RA BR OVC005
   FM040700 VRB03KT 2SM -DZ BR OVC003
   FM041500 03003KT 6SM BR BKN015
   FM041700 06003KT P6SM BKN050
1N7
EffectiveExpiresCategoryNOTAM
Domestic
12/19/25
2031Z
4/18/26
2031Z
!MIV 12/279 1N7 OBST TOWER LGT (ASR 1049523) 405416.40N0745550.40W (5.0NM SE 1N7) 1450.8FT (362.9FT AGL) U/S 2512192031-2604182031
11/25/25
1557Z
2/28/26
2359Z
!MIV 11/165 1N7 OBST TOWER LGT (ASR UNKNOWN) 410428.00N0750017.00W (5.7NM N 1N7) UNKNOWN (195FT AGL) U/S 2511251557-2602282359
FDC
6/27/24
1806Z
!FDC 4/4808 1N7 ODP BLAIRSTOWN, BLAIRSTOWN, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKE-OFF MINIMUMS: RWY 25, 600-3 WITH MINIMUM CLIMB OF 220 FPNM TO 1000. PERM TRANSMISSION LINE 2.61NM FROM DER, 930FT LEFT OF CENTERLINE, 138FT AGL/802FT MSL (34-047292).
ALL OTHER DATA REMAINS AS PUBLISHED. 2406271806-2606271749EST
No
0700-1800
J.D. AIR INC.
17-68 RIVER ROAD
FAIRLAWN, NJ 07410
Phone: 201-796-1556
DENNIS KIERNAN
36 LAMBERT RD.
BLAIRSTOWN, NJ 07825
Phone: 908-362-8965
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
ACTVT MIRL RY 07/25-CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Glider Service
Pilot Instruction
Glider Towing

Runway 07/25

3112 ft. x 70 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 58' 09"N 40° 58' 24"N
Longitude 75° 00' 09"W 74° 59' 33"W
Elevation 366' 372'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1GLIDERS & TOW AIRPLANES OPERATE FM TURF AREA JUST SOUTH OF RY 07/25.
A110-2TREES IN THE 7:1 TRANSITIONAL AREA ALONG RUNWAY SIDES.
A110-3HILL EAST OF ARPT MAY REQUIRE PILOTS TO EXECUTE STEEP APCH TO RY 25.
A110-4FOR CD CTC ALLENTOWN APCH AT 800-728-6322.
A57-07RY 07 APCH RATIO 2:1 TO THE DSPLCD THLD.
A57-25RY 25 APCH RATIO 0:1 TO THE DSPLCD THLD.
A58-07+95 FT TREE, 4 FT FROM RY END, 225 FT L
A58-25+33FT TREE, 23 FT FM RWY END, 145 FT R
A70-100LL24 HOUR SELF SERVICE
A81-APTACTVT MIRL RY 07/25-CTAF.
E111ESTAB PRIOR TO 1940.
BLAIRSTOWN (IATA: 1N7) is a public airport located in BLAIRSTOWN, NJ, US.
