iFlightPlanner



...

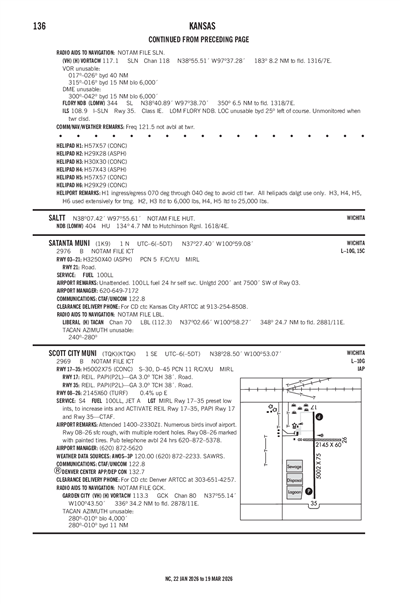

SATANTA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1K9
Local 1K9
SATANTA MUNI
PublicPUB

1 miles N of SATANTA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 27' 24"N 100° 59' 05"W
Elevation
2976' MSL
Pattern Alt
3976' MSL
Mag Variation
5°E
Declination
9°E
Fuel
100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
K19S (8nm) LIFR
10:35 PM CST
Mist
Overcast 400'
5sm
36°F
35°F
30.14"Hg
Calm
AO2 T00200016
METAR K19S 040435Z AUTO 00000KT 5SM BR OVC004 02/02 A3014 RMK AO2 T00200016
+ Add Your Business

1K9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KGCK (31nm)
Tue, 3/3 9:43 PM CST
Tue, 3/3 10:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
10:00 PM CST - 1:00 AM CST
Haze
Obscured
0.75sm
070° 10kts
IFR
1:00 AM CST - 9:00 AM CST
Mist
Broken 900'
1sm
340° 5kts
VFR
9:00 AM CST - 6:00 PM CST
Few 4,500'
6sm
350° 6kts
TAF KGCK 040343Z 0404/0424 07010KT 3/4SM HZ VV002
   FM040700 34005KT 1SM BR BKN009
   FM041500 35006KT P6SM FEW045
1K9
EffectiveExpiresCategoryNOTAM
Domestic
2/13/26
1130Z
3/30/26
1129Z
!ICT 02/196 1K9 OBST TOWER LGT (ASR 1032527) 371540.00N1010048.00W (11.8NM S 1K9) 3162.1FT (243.1FT AGL) U/S 2602131130-2603301129
No
UNATNDD
DUDLEY TOWNSHIP
RT 1 BOX 121
SATANTA, KS 67870
Phone: 620-649-2348
BILL ANTON
2268 ROAD II
SATANTA, KS 67870
Phone: 620-649-7172
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 03/21

3250 ft. x 40 ft.
ASPH
Good
NONE
MED
5/F/C/Y/U
--
--
--
--
  Runway 03 Runway 21
True Heading 40°220°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 27' 12"N 37° 27' 36"N
Longitude 100° 59' 18"W 100° 58' 52"W
Elevation 2,968' 2,972'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UNLGTD 200 FT ANT 7500 FT SW OF RWY 03.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A52-03OIL WELL 160 FT S OF RWY 03; GRAIN ELEVATORS 1 MI S; TWR 1 MI SW.
A57-03INTERSECTION OF 15 FT ROADS.
A58-0315 FT OIL RIG 165 DSTC; 65 FT LEFT OF CNTRLN - LGTD.
A58-2115 FT RD, 0-199 FT DSTC, 125 FT L/R.
A70-100LLFUEL 24 HR SELF SVC.
SATANTA MUNI (IATA: 1K9) is a public airport located in SATANTA, KS, US.
