No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

1H2
EFFINGHAM COUNTY RGNL
PublicPUB

3 miles S of EFFINGHAM, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 04' 14"N 88° 32' 01"W
585' MSL
1585' MSL
01W
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
10/31/24-11/28/24
K1H2 VFR
5:35 AM CST
Clear
10sm
47°F
41°F
30.23"Hg
090° 4kts
AO2 T00850048
K1H2 091135Z AUTO 09004KT 10SM CLR 09/05 A3023 RMK AO2 T00850048
Add Your Business

1H2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

AWOS-3PT

AWOS-3PT
217-536-5976
 118.375

FAA A/FD Pages

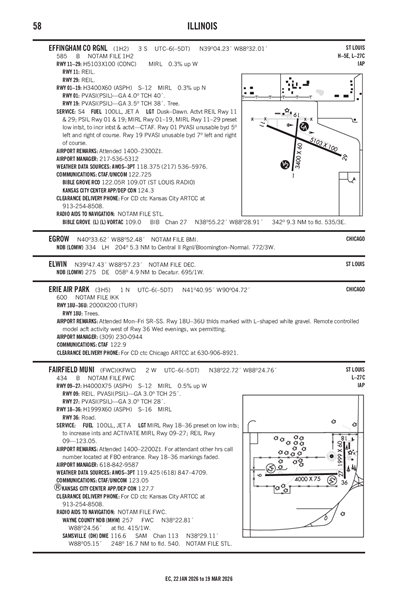

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMVN (47nm)
Sat, 11/9 5:40 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 12:00 PM CST
Light Showers and Rain
Overcast 15,000'
6sm
090° 5kts
VFR
12:00 PM CST - 4:00 PM CST
Overcast 8,000'
6sm
110° 6kts
MVFR
4:00 PM CST - 9:00 PM CST
Light Showers and Rain and Mist
Overcast 4,000'
5sm
120° 7kts
IFR
9:00 PM CST - 12:00 AM CST
Showers and Rain and Mist
Overcast 800'
3sm
150° 7kts
IFR
12:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 500'
4sm
190° 6kts
KMVN 091140Z 0912/1012 09005KT P6SM -SHRA OVC150
   FM091800 11006KT P6SM OVC080
   FM092200 12007KT 5SM -SHRA BR OVC040
   FM100300 15007KT 3SM SHRA BR OVC008
   FM100600 19006KT 4SM -SHRA BR OVC005
1H2
Domestic
10/14/241038Z !1H2 10/001 1H2 OBST TOWER LGT (ASN 2018-AGL-13682-OE) 391149N0881758W (13.3NM NE 1H2) 855FT (267FT AGL) U/S 2410141038-2411281037
FDC
1/24/241802Z !FDC 4/7404 1H2 IAP EFFINGHAM COUNTY MEML, EFFINGHAM, IL.
RNAV (GPS) RWY 11, ORIG-A...
RNAV (GPS) RWY 29, ORIG-C...
DISREGARD NOTE: STRAIGHT-IN RWY 1 NA AT NIGHT.
2401241802-2601241756EST
No
0800-1700
EFFINGHAM COUNTY BOARD
307 N 3RD ST
EFFINGHAM, IL 62401
Phone: 217-342-9291
JERRY TATE
14449 E 1100TH AVE
EFFINGHAM, IL 62401
Phone: 217-536-5312
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
1H2
--
DUSK-DAWN. ACTVT REIL RWY 11 & 29; PSIL RWY 01 & 19; MIRL RWY 01/19, MIRL RWY 11/29 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 01/19

3400 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 7°187°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition FAIR FAIR
Latitude 39° 03' 55"N 39° 04' 28"N
Longitude 88° 32' 06"W 88° 32' 00"W
Elevation 572' 580'
Threshold Crossing Height 40 ft. AGL 38 ft. AGL
Visual Glide Path Angle 4° 3.5°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 11/29

5103 ft. x 100 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 11 Runway 29
True Heading 113°293°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 04' 25"N 39° 04' 05"N
Longitude 88° 32' 29"W 88° 31' 29"W
Elevation 585' 572'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1TREE & SILO R TRSN AREA TREE L TRSN AREA RY 19.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
EFFINGHAM COUNTY RGNL (IATA: 1H2) is a public airport located in EFFINGHAM, IL.
