GRAND CANYON WEST - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1G4
Local 1G4
GRAND CANYON WEST
PublicPUB

60 miles NW of PEACH SPRINGS, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 59' 10"N 113° 49' 01"W
Elevation
4817' MSL
Pattern Alt
5817' MSL
Mag Variation
11°E
Declination
14°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KIGM (44nm) VFR
3:51 AM MST
Clear
10sm
43°F
26°F
30.03"Hg
120° 5kts
AO2 SLP126 T00611033
METAR KIGM 041051Z AUTO 12005KT 10SM CLR 06/M03 A3003 RMK AO2 SLP126 T00611033
+ Add Your Business

1G4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.425
(928) 237-1354

Common

CTAF 122.9
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.

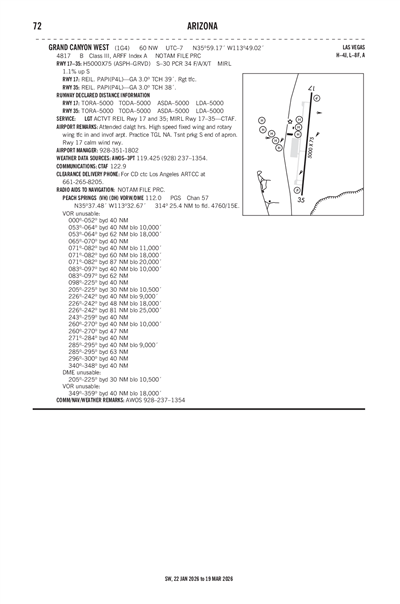

FAA A/FD Pages

Terminal Area Forecast

KLSV (61nm)
Tue, 3/3 11:00 PM PST
Tue, 3/3 11:00 PM PST - Thu, 3/5 5:00 AM PST
VFR
11:00 PM PST - 10:00 AM PST
Sky Clear
6sm
30.03"Hg
VRB° 6kts
VFR
Becoming 10:00 AM PST - 2:00 AM PST
Scattered 22,000'
6sm
30.00"Hg
120° 10kts
Gusts 15kts
VFR
Becoming 2:00 AM PST - 5:00 AM PST
Few 16,000'
6sm
29.82"Hg
300° 12kts
Gusts 18kts
TAF KLSV 040700Z 0407/0513 VRB06KT 9999 SKC QNH3003INS
   BECMG 0418/0419 12010G15KT 9999 SCT220 QNH3001INS
   BECMG 0510/0511 30012G18KT 9999 FEW160 QNH2981INS TX24/0423Z TN09/0414Z
1G4
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1937Z
3/31/26
1700Z
!PRC 03/015 1G4 APRON HEL APN W SIDE HEL FINAL APCH AND TKOF AREA F, G, HELIPAD F2, F3, G1, G2 CLSD 2603031937-2603311700
No
DALGT
THE HUALAPAI INDIAN TRIBE
P.O. BOX 359
PEACH SPRINGS, AZ 86434
Phone: 928-769-2419
WILL NELSON
PO BOX 359
PEACH SPRINGS, AZ 86434
Phone: 928-351-1802
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 17/35

5000 ft. x 75 ft.
ASPH
Good
GRVD
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 185°5°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 59' 35"N 35° 58' 45"N
Longitude 113° 48' 58"W 113° 49' 04"W
Elevation 4,762' 4,817'
Threshold Crossing Height 39 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1ATTN: DUE TO PROXIMITY OF GRAND CANYON NATIONAL PARK SEE SFAR 50-2; PARTICULAR ATTN TO REG FOR OPS BLW 14500 FT MSL.
A110-2PRACTICE TGL NA.
A110-4CTN: HIGH SPEED FIXED WING & ROTARY WING TFC IN & INVOF ARPT.
A110-7TSNT PRKG S END OF APRON.
A110-8FOR CD CTC LOS ANGELES ARTCC AT 661-265-8205.
A30-17/35RWY 17 CALM WIND RWY.
A39-17/35PCR VALUE: 34/F/A/X/T
A81-APTACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111PRVDD OPNS CONDUCTED DURING VFR CONDITIONS; SPONSOR ENSURE ALL OPNS ADHERE TO THE COMMUNICATIONS & COORDINATION REQUIREMENTS FOR VFR TFC OPERATING WITHIN & BTN THE BOUNDARIES OF CLASS E AND CLASS B AIRSPACE.
GRAND CANYON WEST (IATA: 1G4) is a public airport located in PEACH SPRINGS, AZ, US.
