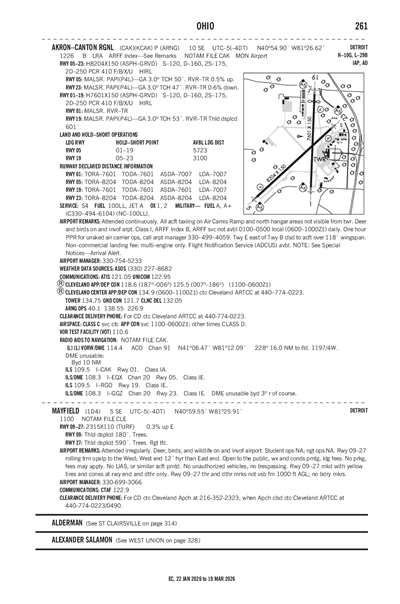

MAYFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1D4
Local 1D4
MAYFIELD
PublicPUB

5 miles SE of AKRON, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 59' 33"N 81° 25' 54"W
Elevation
1100' MSL
Pattern Alt
2100' MSL
Mag Variation
8°W
Declination
7°W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KAKR (3nm) LIFR
8:54 PM EST
Mist
Overcast 400'
4sm
45°F
44°F
30.13"Hg
330° 5kts
AO2 RAB0057E27 SLP209 P0002 T00720067
METAR KAKR 040154Z AUTO 33005KT 4SM BR OVC004 07/07 A3013 RMK AO2 RAB0057E27 SLP209 P0002 T00720067
+ Add Your Business

1D4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCAK (5nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 10:00 PM EST
Light Showers and Rain
Overcast 400'
2sm
230° 9kts
LIFR
10:00 PM EST - 1:00 AM EST
Mist
Overcast 400'
3sm
330° 5kts
LIFR
1:00 AM EST - 11:00 AM EST
Fog
Overcast 200'
0.25sm
350° 2kts
IFR
11:00 AM EST - 7:00 PM EST
Mist
Overcast 500'
3sm
090° 6kts
TAF KCAK 032320Z 0400/0424 23009KT 2SM -SHRA OVC004
   FM040300 33005KT 3SM BR OVC004
   FM040600 35002KT 1/4SM FG OVC002
   FM041600 09006KT 3SM BR OVC005
1D4
No NOTAM Available
No
IREG
REBECCA MAY, TRUSTEE
2571 MYERSVILLE RD
UNIONTOWN, OH 44685
Phone: 330-699-3066
REBECCA MAY
2571 MYERSVILLE RD
UNIONTOWN, OH 44685
Phone: 330-699-3066
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
--
N/A
N/A
No
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2315 ft. x 110 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Right
Markings
Markings Condition POOR POOR
Latitude 40° 59' 33"N 40° 59' 33"N
Longitude 81° 26' 09"W 81° 25' 39"W
Elevation 1,092' 1,100'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0223/0490.
A110-2DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
A110-3OPEN TO THE PUB, WX AND CONDS PMTG. LDG FEES. NO PRKG, FEES MAY APPLY. NO UAS OR SIMILAR ACFT PMTD.
A110-4NO UNAUTH VEHICLES. NO TRESPASSING.
A110-5STUDENT OPS NA; NGT OPS NA.
A33-09/27_CONDROLLING TRRN UPSLP TO THE WEST; WEST END 12 FT HYR THAN EAST END.
A42-09_CONDTHR & DTHR MRKGS NOT VSB FM 1000 FT AGL; NO BDRY MKRS.
A42-09_MARKYELLOW TIRES & CONES AT RWY END & DTHR ONLY.
A42-27_CONDTHR & DTHR MRKGS NOT VSB FM 1000 FT AGL; NO BDRY MKRS.
A42-27_MARKYELLOW TIRES & CONES AT RWY END & DTHR ONLY.
A57-09OBSTN CLNC SLP 0:1 TO DTHR OVR 75 FT TREES, 0 FT DIST, 75 FT L.
A57-27OBSTN CLNC SLP 0:1 TO DTHR OVR 65 FT TREES, 0 FT DIST, 75 FT R.
MAYFIELD (IATA: 1D4) is a public airport located in AKRON, OH, US.
