1B9
Local 1B9
MANSFIELD MUNI
PublicPUB

2 miles SE of MANSFIELD, MA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 00' 03"N 71° 11' 53"W
Elevation
123' MSL
Pattern Alt
1123' MSL
Mag Variation
14°W
Declination
16°W
Fuel
100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
K1B9 IFR
11:55 PM EST
Mist and Unknown Precipitation
Overcast 600'
5sm
32°F
32°F
30.14"Hg
Calm
AO2 P0000 T00020002 $
METAR K1B9 040455Z AUTO 00000KT 5SM UP BR OVC006 00/00 A3014 RMK AO2 P0000 T00020002 $
+ Add Your Business

1B9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.675
(774) 372-2047

Common

CTAF 123.0
ACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.
UNICOM 123.0

Arrival

WOONS STAR 120.6

Approach

BOSTON APPROACH 124.1

Departure

BOSTON DEPARTURE 124.1

Flight Service

Flight Service 122.5
(BDR)

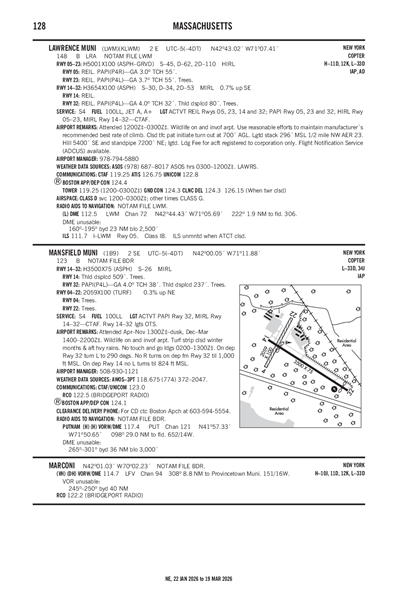

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KPVD (20nm)
Tue, 3/3 6:23 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 3:00 AM EST
Light Rain and Mist
Overcast 800'
3sm
060° 4kts
IFR
3:00 AM EST - 8:00 AM EST
Mist
Overcast 800'
3sm
260° 4kts
VFR
8:00 AM EST - 7:00 PM EST
Scattered 20,000'
6sm
300° 3kts
TAF KPVD 032323Z 0400/0424 06004KT 3SM -RA BR OVC008
   FM040800 26004KT 3SM BR OVC008
   FM041300 30003KT P6SM SCT200
1B9
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1619Z
2/25/26
1700Z
!BDR 02/188 1B9 AD AP CLSD 2602231619-2602251700
2/21/26
0527Z
3/8/26
0427Z
!BDR 02/156 1B9 OBST TOWER LGT (ASR 1220607) 420533.10N0711815.40W (7.2NM NW 1B9) 503.0FT (218.8FT AGL) U/S 2602210527-2603080427
2/14/26
0609Z
3/1/26
0509Z
!BDR 02/105 1B9 OBST TOWER LGT (ASR 1232361) 420532.50N0711810.50W (7.2NM NW 1B9) 464.9FT (216.9FT AGL) U/S 2602140609-2603010509
2/8/26
0204Z
7/15/26
2359Z
!BDR 02/052 1B9 OBST TOWER LGT (ASR 1006021) 420030.00N0710301.00W (6.5NM E 1B9) 322.2FT (248.0FT AGL) U/S 2602080204-2607152359
FDC
6/13/25
1936Z
!FDC 5/4415 1B9 IAP MANSFIELD MUNI, MANSFIELD, MA.
COPTER RNAV (GPS) Y RWY 14, AMDT 1...
DISREGARD NOTE: DESCENT ANGLE 5.70/TCH 40. PROFILE NOTE: VISUAL SEGMENT - OBSTACLES. VDP NA.
2506131936-2706131936EST
No
APR-NOV 0800-DUSK
DEC-MAR 0900-1700
TOWN OF MANSFIELD
TOWN HALL 6 PARK ROW
MANSFIELD, MA 02048
Phone: 508-261-7370
KEVIN BULLOCK
265 FRUIT ST
MANSFIELD, MA 02048
Phone: 508-930-1121
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
ACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.
N/A
ROTG BCN OTS.
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction

Runway 04/22

2059 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 28°208°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 41° 59' 59"N 42° 00' 17"N
Longitude 71° 12' 08"W 71° 11' 56"W
Elevation 117' 123'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3500 ft. x 75 ft.
ASPH
Good
NONE
MED

26,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 123°303°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 42° 00' 09"N 41° 59' 51"N
Longitude 71° 12' 07"W 71° 11' 28"W
Elevation 121' 119'
Threshold Crossing Height -- 38 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TURF STRIP CLSD WINTER MONTHS & AFT HVY RAINS.
A110-3ON DEP RWY 32 TURN L TO 290 DEGS.
A110-4ON DEP RWY 14 NO L TURNS TIL 824 FT MSL.
A110-5NO TGLS 2100-0800.
A110-6NO R TURNS ON DEP FM RWY 32 TIL 1000 FT MSL.
A110-7FOR CD CTC BOSTON APCH AT 603-594-5554.
A110-8WILDLIFE ON & INVOF ARPT.
A110-9RWY 14/32 LGTS OTS.
A16OR 508-339-3001.
A57-14APCH RATIO 34:1 TO DTHR.
A57-32APCH RATIO 34:1 TO DTHR.
A80ROTG BCN OTS.
A81-APTACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.
E111ESTAB PRIOR 1959.
MANSFIELD MUNI (IATA: 1B9) is a public airport located in MANSFIELD, MA, US.
